Запчасти Case IH 1640 (9D-12) - GRAIN ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS

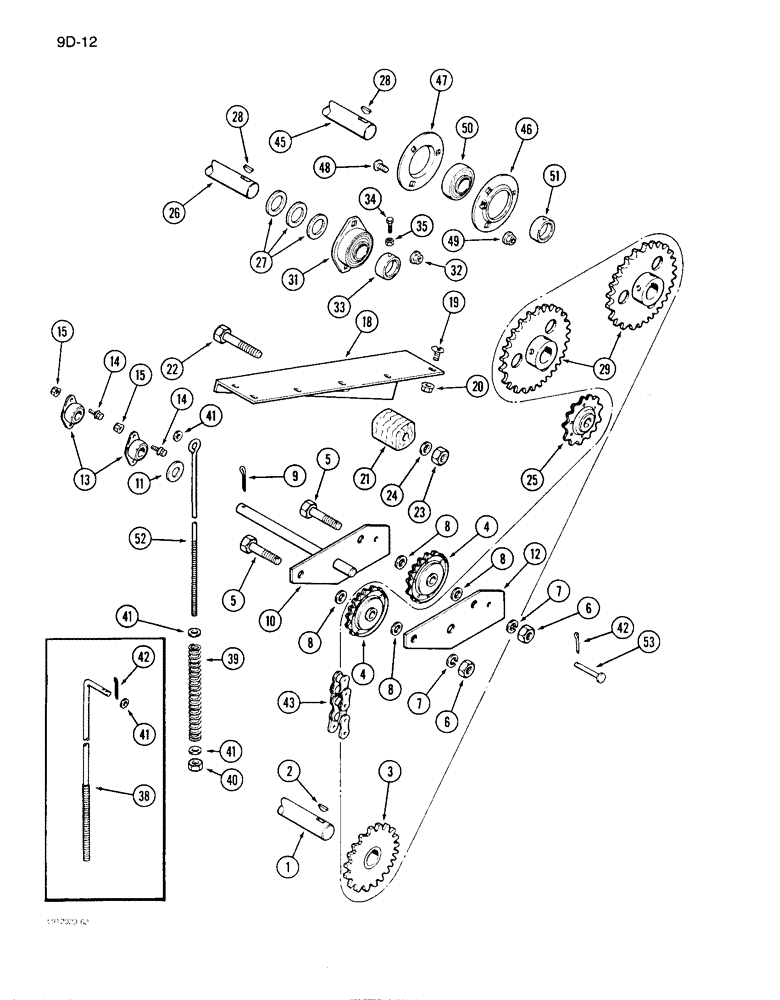

Схема запчастей Case IH 1640 - (9D-12) - GRAIN ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS
5
23
4
1
21
14
32
45
3
5
8
22
52
10
19
15
33
53
41
13
40
15
50
8
12
20
8
41
41
22
35
14
18
42
29
7
9
5
31
7
28
25
46
34
23
49
8
6
24
4
51
43
39
41
28
48
2
11
35
47

Артикул

Название

Примечание

Количество

1

1321347C1

SHAFT

- drive, elevator

1шт.

2

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

3

192139C2

SPROCKET

ASSEMBLY - drive 25T

2шт.

4

631905R91

SPROCKET

- idler drive

2шт.

5

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

2шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

4шт.

9

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

10

1345064C1

SUPPORT

- pivot (Replaces 1317671C1)

1шт.

11

495-81041

WASHER,25/32" x 1 1/2" x .060"

- flat, 25/32 x 1-1/2 x 1/16 inch

1шт.

12

1345066C1

PLATE

BAR - tightener (Replaces 1317670C1)

1шт.

13

1345189C1

BEARING COVER,19.06mm ID

- pivot (Replaces A63366)

2шт.

14

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

4шт.

15

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

18

1317476C2

HOUSING

STIFFENER - block

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

6шт.

20

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

21

582018R1

BLOCK

- tightener

1шт.

22

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

23

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

24

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

1шт.

25

1319759C1

DRIVE SPROCKET

SPROCKET - idler

1шт.

26

1317429C1

SHAFT

- elevator head

1шт.

27

22050R1

WASHER

- flat, 1-9/32 x 1-3/4 x 3/64 inch

6шт.

28

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

29

1317412C1

SPROCKET

ASSEMBLY - headshaft

2шт.

31

1317250C91

FLANGED BEARING,31.75mm ID

BEARING ASSEMBLY - headshaft

1шт.

32

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

33

557995R11

COLLAR

ASSEMBLY - bearing

2шт.

34

385-13820

SET SCREW,3/8" - 16 x 1-1/4"

SCREW - square head set, 3/8 NC x 1-1/4 inch

4шт.

35

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

4шт.

38

1317666C2

ROD

- tightener, chain

1шт.

39

523677R1

SPRING

- tightener

1шт.

40

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

1шт.

41

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

3шт.

42

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

43

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive

1шт.

Use 261 links of No. 50 chain, 1 connector link 1310D and 2 offset links 1315D.

1шт.

45

REF

INSTRUCTION

AUGER - delivery (See Figure 9D-04)

1шт.

46

670375R11

FLANGE

ASSEMBLY - bearing

1шт.

47

939461R1

FLANGE

- bearing

1шт.

48

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

3шт.

49

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.

50

156011C92

BALL BEARING

BEARING ASSEMBLY - auger

1шт.

51

557995R11

COLLAR

ASSEMBLY - bearing

1шт.

52

1345005C1

BOLT,3/8" - 16 x 815mm

ROD - tightener, chain (Replaces 1317666C2)

1шт.

53

21006R1

CLEVIS PIN,3/8" x 2.406"

PIN - clevis, 3/8 x 2-13/32 inch

1шт.

Выбрано товаров: 48
