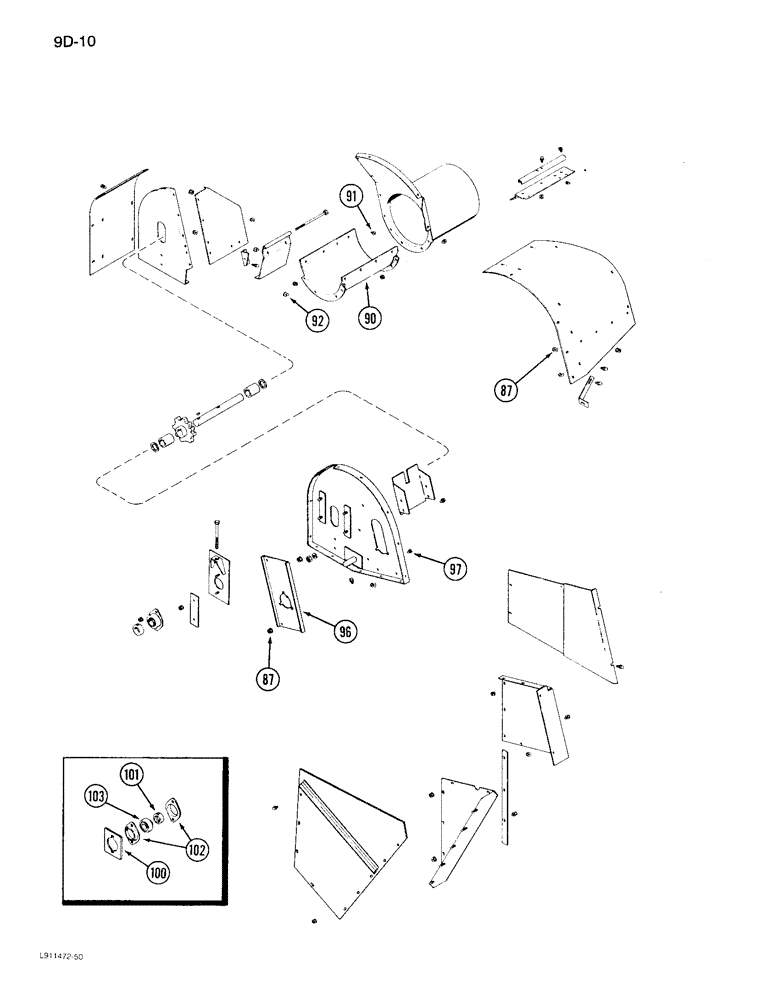

Запчасти Case IH 1640 (9D-10) - HORIZONTAL GRAIN ELEVATOR HEAD (CONTD) (16) - GRAIN ELEVATORS & AUGERS

87

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

30шт.

90

1321130C1

TROUGH

- auger

1шт.

91

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

2шт.

92

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

4шт.

96

1321129C1

PLATE

- bearing, auger, right

1шт.

97

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

2шт.

100

1979642C1

SPACER

- bearing flange

2шт.

101

557995R11

COLLAR

ASSEMBLY - locking, bearing, with set screw

2шт.

102

581469R1

FLANGE,Bearing

- bearing retainer

4шт.

103

156011C92

BALL BEARING

BEARING - auger

2шт.
