Запчасти Case IH 1640 (9D-06) - GRAIN ELEVATOR HOUSING AND BOOT (16) - GRAIN ELEVATORS & AUGERS

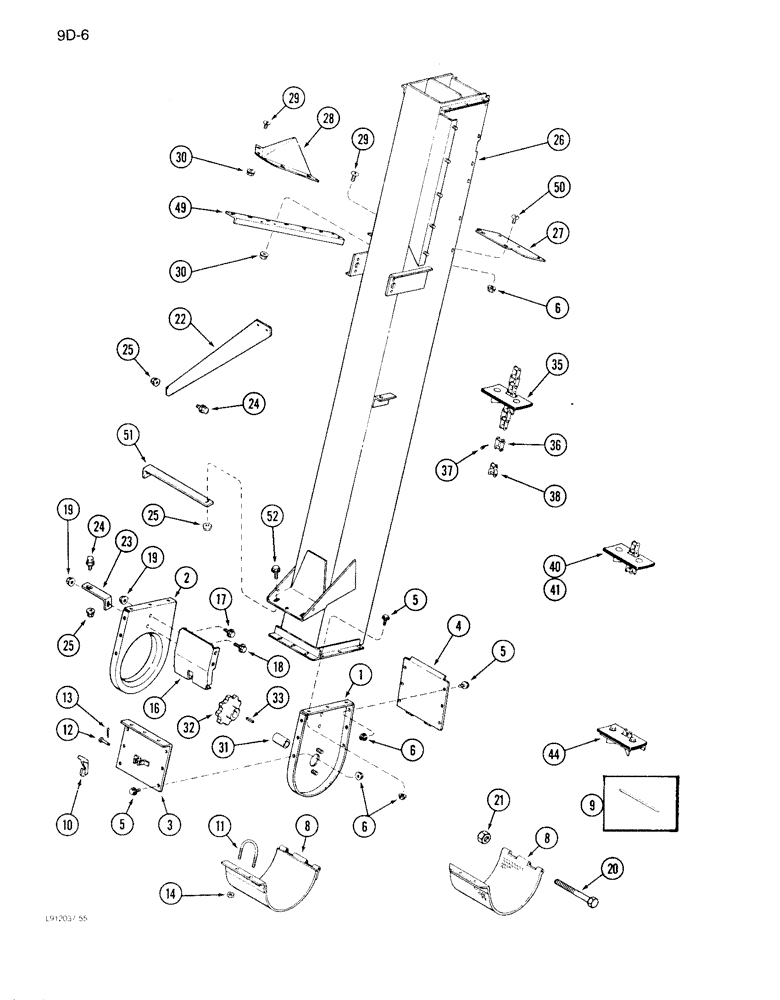

Схема запчастей Case IH 1640 - (9D-06) - GRAIN ELEVATOR HOUSING AND BOOT (16) - GRAIN ELEVATORS & AUGERS
5
49
50
8
1
30
19
6
33
41
14
40
32
25
12
21
22
31
2
23
29
6
17
24
3
37
25
9
4
25
21
52
27
5
25
51
20
16
35
38
19
13
44
6
23
5
36
29
11
30
18
10
8

Артикул

Название

Примечание

Количество

1

1318585C2

SIDE PLATE

SIDE - boot, outer

1шт.

2

1317673C2

BASE

SIDE - boot, inner

1шт.

3

1317271C1

COVER

- rear, boot

1шт.

4

1317273C1

COVER

- front, boot

1шт.

5

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

12шт.

6

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

12шт.

8

1317276C1

DOOR

- boot (Not perforated)

1шт.

8

1317841C1

DOOR

- boot (Perforated)

1шт.

9

1321942C1

ROD

- pivot, door (If equipped)

1шт.

10

155909C1

LATCH

- door

1шт.

11

316039R1

BOLT,5/16" - 18 x 5", Carbon Steel

U-BOLT - latch, 5/16 inch NC

1шт.

12

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN - head, 1/4 x 1-1/4 inch

1шт.

13

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

14

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

16

1317270C1

GUARD

DEFLECTOR - grain, bottom

1шт.

17

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

3шт.

18

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - hex flange lock, 3/8 NC x 1 inch

1шт.

19

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

20

113-134

BOLT,Hex, 5/16" - 18 x 7-1/2", Gr 5

- hex, 5/16 NC x 7-1/2 inch

1шт.

21

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

22

1317362C3

SUPPORT ASSY.

BRACKET - support, lower

1шт.

23

1327667C1

SUPPORT

- elevator

1шт.

24

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

5шт.

25

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

5шт.

26

1317376C3

HOUSING ASSY.

HOUSING - elevator

1шт.

27

1317688C1

PLATE

- seal

1шт.

28

1317698C1

PLATE

SUPPORT - rear seal

1шт.

29

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

12шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

12шт.

31

1317193C2

SPACER

- sprocket, 31 x 38 x 52 mm

3шт.

32

1317192C1

SPROCKET

- drive

1шт.

33

Q1443

KEY,5/16" Sq x 1 1/2", Par

- square parallel, 5/16 x 1-1/2 inch

1шт.

35

1321334C92

ELEVATOR CHAIN

CONVEYOR ASSEMBLY - elevator, Includes: Ref. 36 - 41

1шт.

36

631254R91

DRAG LINK

LINK - connecting

1шт.

37

23442R1

PIN,2.36mm OD

- link

1шт.

38

23880R1

OFFSET LINK

LINK - offset

1шт.

40

1317613C92

PALLET

FLIGHT ASSEMBLY - conveyor (Rubber), Includes: Ref. 41

1шт.

41

631253R91

LINK

- roller

2шт.

44

1321443C92

STEEL FLIGHT

FLIGHT ASSEMBLY - conveyor (Steel), Includes: Parts Listed Below

1шт.

1317480C1

STEEL FLIGHT

FLIGHT - conveyor

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

2шт.

49

1317493C1

BRACKET

ANGLE - tank bottom stiffener, left

1шт.

50

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

2шт.

51

1317625C1

SUPPORT

- lower

1шт.

52

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex, lock, 3/8 NC x 1-1/4 inch

2шт.
