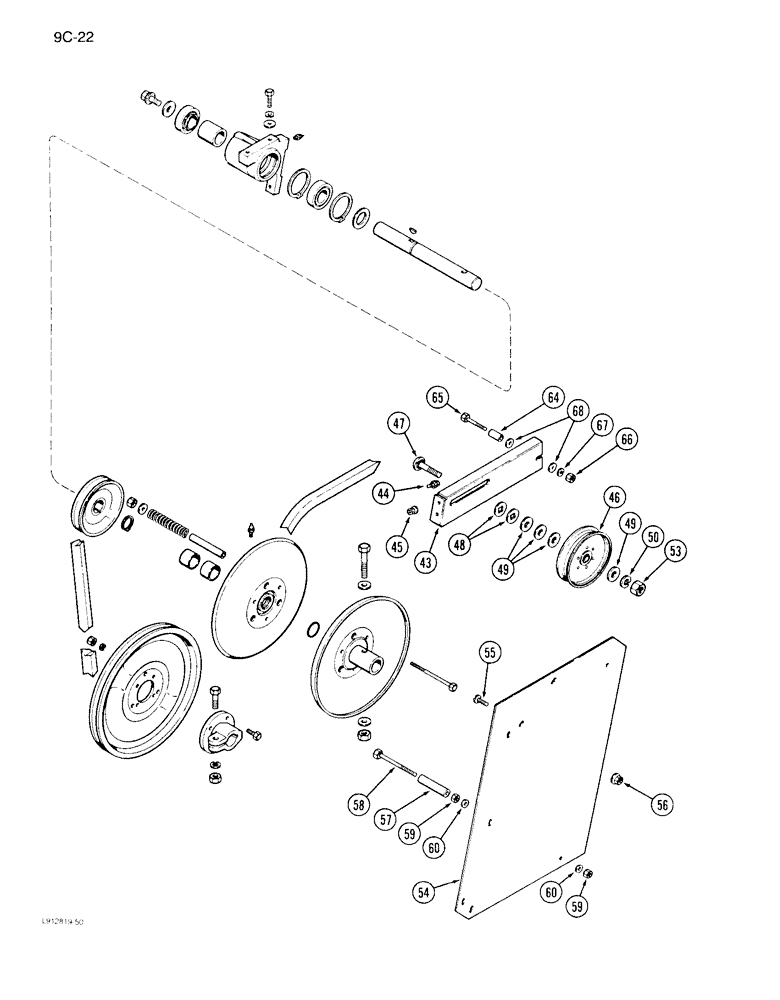

Запчасти Case IH 1640 (9C-22) - SLOW SPEED FAN DRIVE (CONTD) (15) - BEATER & CLEANING FANS

43

185270C1

SUPPORT

- idler

1шт.

44

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- flanged hex lock, 5/16 NC x 3/4 inch

2шт.

45

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flanged hex lock, 5/16 inch NC

2шт.

46

564745R91

PULLEY

- idler, 5-1/2 inch OD

1шт.

47

411-1040

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT - round head square neck, 5/8 NC x 2-1/2 inch, Grade 2

1шт.

48

498-81009

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

- square hole flat, 21/32 x 1-1/2 x 3/32 inch

2шт.

49

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

4шт.

50

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

53

425-1010

NUT,5/8"-11, G5

1шт.

54

181372C1

SHIELD

- slow speed fan drive

1шт.

55

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss, 5/16 NC x 1 inch

2шт.

56

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flanged hex lock, 5/16 inch NC

2шт.

57

PO22778

SPACER,1/4" Pipe x 2"

- pipe, 1/4 x 2 inch

2шт.

58

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 x 3 inch NC

2шт.

59

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

60

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

64

612233R1

SPACER,5/8" Tube x 1 1/8"

- 13/32 x 5/8 x 1-3/16 inch

1шт.

65

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

66

425-106

NUT,3/8"-16, Cl 5

1шт.

67

492-11038

LOCK WASHER,3/8"

1шт.

68

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

2шт.
