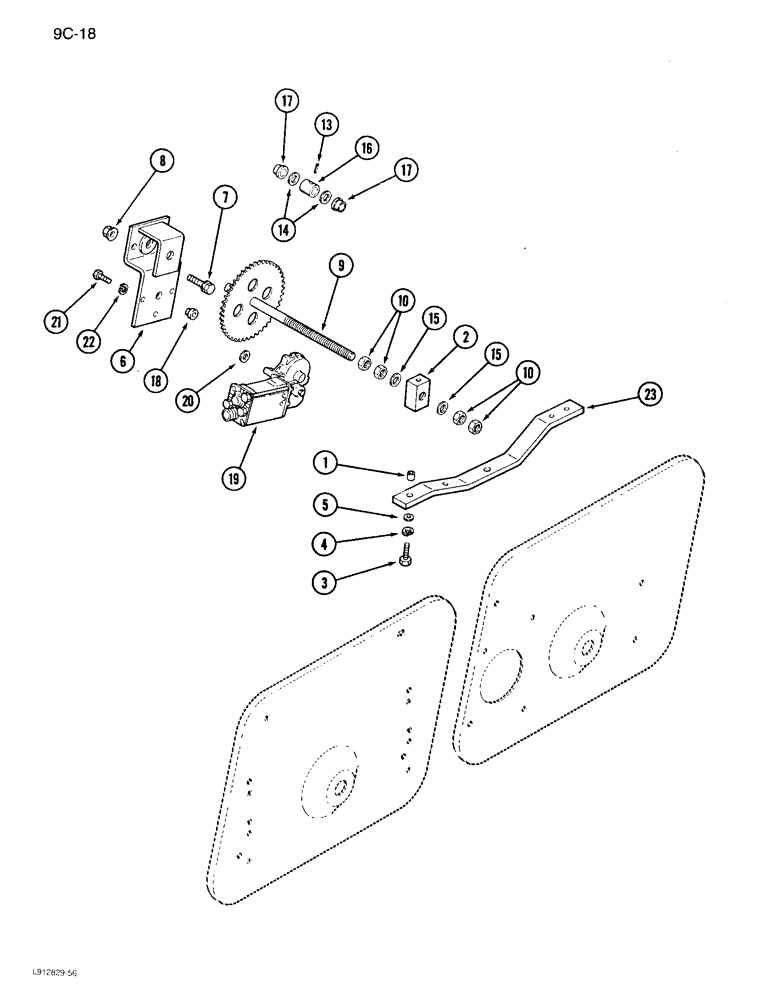

Запчасти Case IH 1640 (9C-18) - CLEANING FAN DRIVE SPEED CONTROL (15) - BEATER & CLEANING FANS

1

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

2шт.

2

181206C1

BLOCK

- fan speed control shaft

1шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

6

181199C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - speed control motor

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

8

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged

2шт.

9

181202C1

SHAFT ASSY.

STUD ASSEMBLY - adjusting gear shaft

1шт.

10

425-1010

NUT,5/8"-11, G5

4шт.

13

138-2067

PIN,3/16" x 1", Coiled

1шт.

14

495-81177

WASHER,21/32" x 1" x .030"

- flat, 21/32 x 1 x 1/32 inch

2шт.

15

1302054C1

WASHER,15.95mm ID x 25.4mm OD x 1.52mm Thk

- fan control thrust

2шт.

16

181205C1

SPACER

- adjusting gear stud

1шт.

17

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

- fan speed control stud

2шт.

18

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

- fan speed control motor

1шт.

19

126573C1

MOTOR, ELECTRIC

MOTOR ASSEMBLY - fan variable speed

1шт.

20

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

- flat, 13/32 x 1 x 11/64 inch

3шт.

21

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

3шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

23

REF

INSTRUCTION

SUPPORT - fan control (See Figure 9C-12)

2шт.
