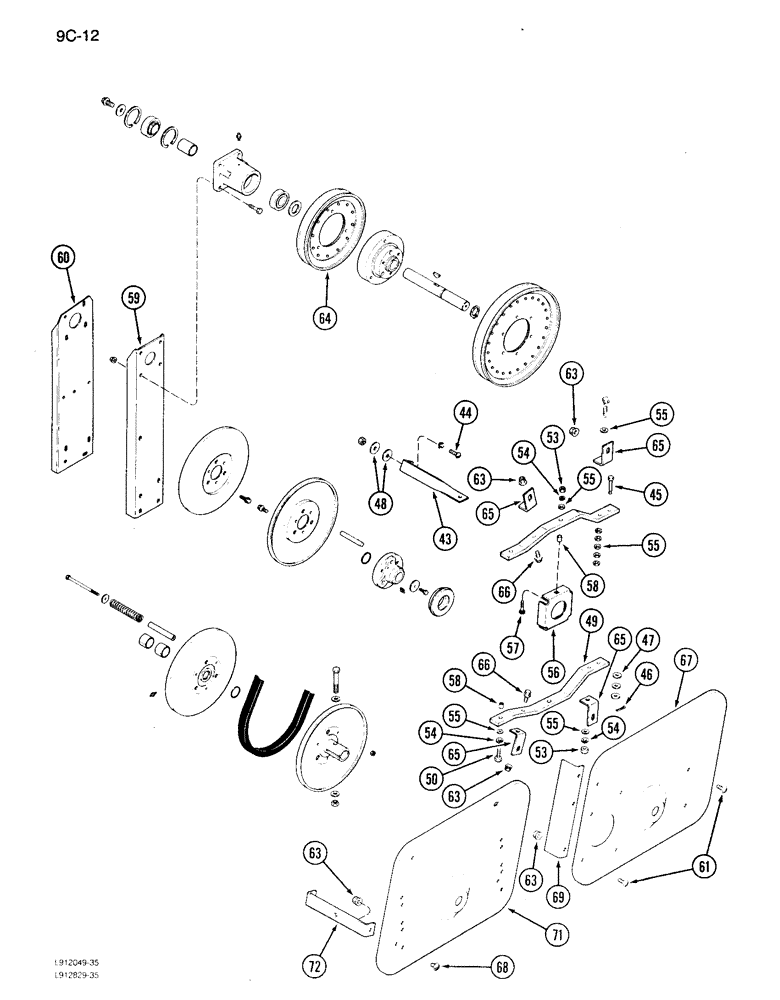

Запчасти Case IH 1640 (9C-12) - CLEANING FAN DRIVE, PRIOR TO P.I.N. JJC0097191 (CONTD) (15) - BEATER & CLEANING FANS

43

186283C1

SUPPORT

- fan drive control

1шт.

44

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss, 3/8 NC x 1 inch

1шт.

45

21964R1

HEADED PIN,3/8" x 1 1/2"

PIN - headed, hardened, 3/8 x 1-1/2 inch, Grade 1

1шт.

46

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

47

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

3шт.

48

495-81142

WASHER,0.41" ID x 1.5" OD x 0.06" Thk

- flat, 13/32 x 1-1/2 x 1/16 inch

2шт.

49

194850C2

SUPPORT

- fan control

2шт.

50

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

53

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

54

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

55

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

56

194852C2

SUPPORT

- fan driver

1шт.

57

412-520

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1 1/4", Gr 2

BOLT - round head square neck, 5/16 NC x 1-1/4 inch

2шт.

58

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

2шт.

59

188128C1

CHANNEL

- fan hub

1шт.

Check part carefully before ordering.

1шт.

60

1541632C1

SUPPORT

CHANNEL - fan hub

1шт.

Check part carefully before ordering.

1шт.

61

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

3шт.

61

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

4шт.

63

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

20шт.

63

231-5146

FLANGE NUT,3/8"-16

4шт.

64

REF

INSTRUCTION

PULLEY ASSEMBLY - cleaning unit drive, 13 inch OD (See Figure 9A-02)

1шт.

65

194756C2

ANGLE

- fan drive pulley shield

4шт.

66

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- flanged hex, 5/16 NC x 3/4 inch

2шт.

67

194758C2

SUPPORT

- fan jackshaft

1шт.

68

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss, 5/16 NC x 1/2 inch

4шт.

69

186089C1

SHIELD

- elevator drive idler

1шт.

71

194759C4

GUARD

SHIELD - fan drive

1шт.

72

194760C1

SUPPORT

- lower shield

4шт.
