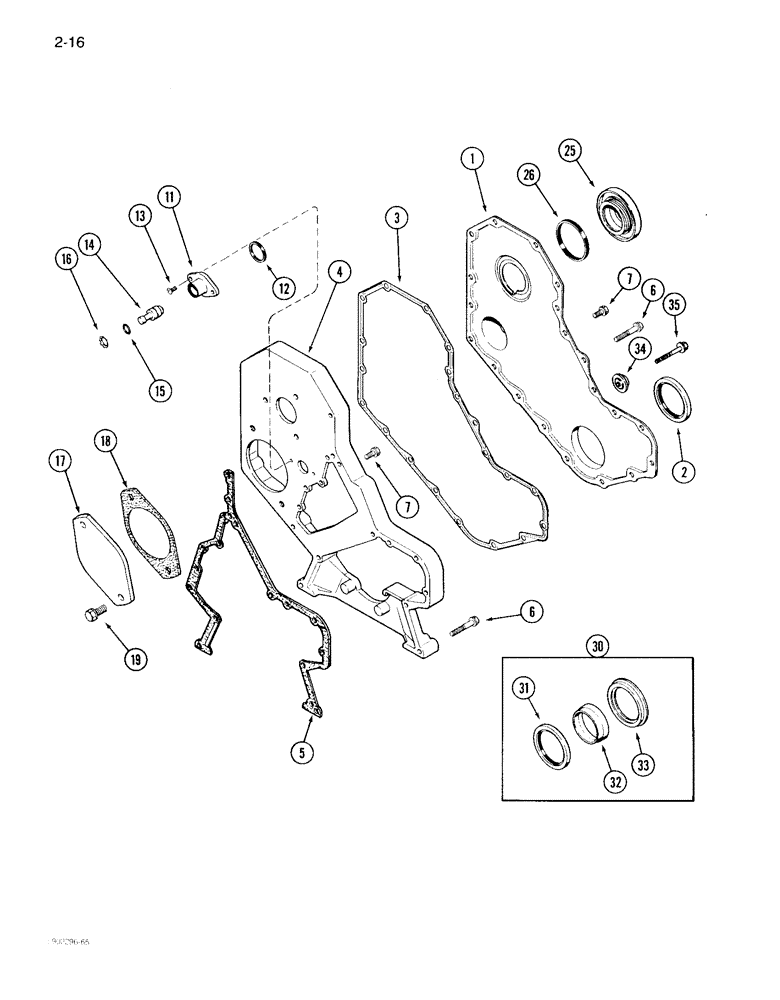

Запчасти Case IH 1640 (2-16) - FRONT GEAR COVER, 6TA-590 ENGINE (01) - ENGINE

1

J903794

COVER

- gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front (Order Ref 30)

1шт.

3

J914385

GASKET,1.02mm Thk

- front cover

1шт.

4

J920518

HOUSING

- timing gear (Replaces J917759)

1шт.

5

J916131

GASKET

- gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 50 mm

10шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 16 mm

16шт.

11

J919683

HOUSING

- timing pin (Replaces J905933)

1шт.

12

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING, rectangular (Replaces J914092)

1шт.

13

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

14

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

15

J913994

O-RING

- sealing

1шт.

16

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

17

J914868

COVER

PLATE - accessory drive cover (Replaces J909918)

1шт.

18

J919601

GASKET

- cover plate (Replaces J913192)

1шт.

19

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 mm - 1.75 x 25 mm, Grade 10.9

2шт.

25

J903463

PLUG,M63 x 5

- access, front

1шт.

26

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover, front

1шт.

30

J904353

GASKET KIT

SEAL KIT - oil, crankshaft front, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

34

J912772

RETAINER

- belt

1шт.

35

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 60 mm

1шт.
