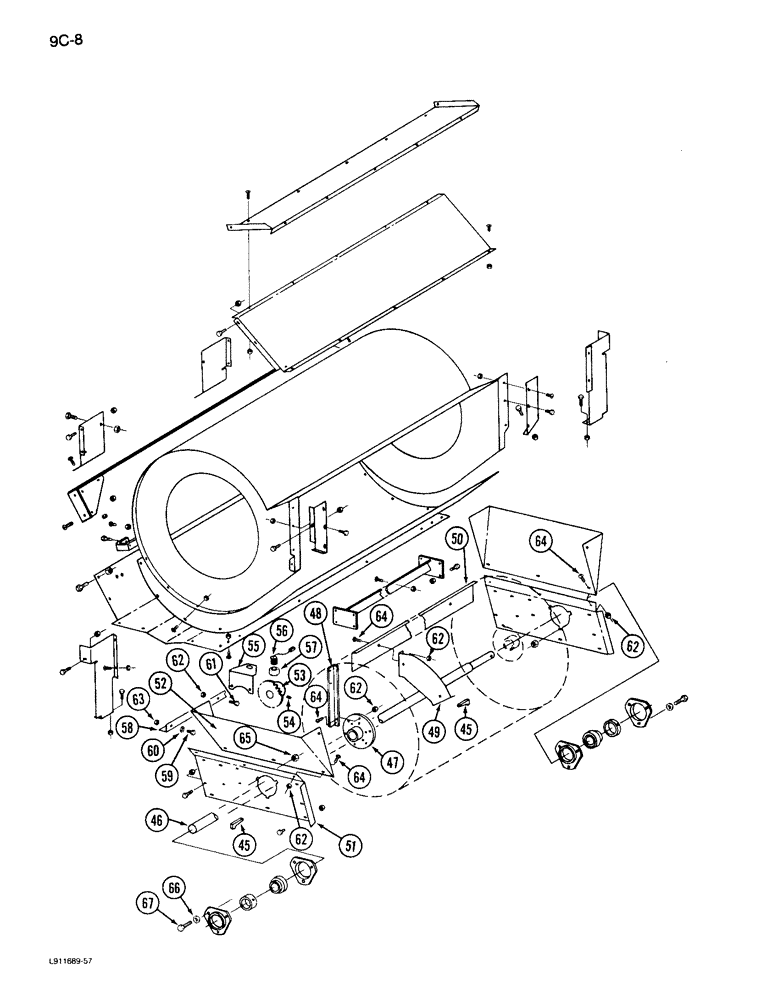

Запчасти Case IH 1640 (9C-08) - CLEANING FAN AND SHIELDS (CONTD) (15) - BEATER & CLEANING FANS

45

Q1497

KEY,Gib, 3/8" Sq x 2"

- gib, 3/8 x 2 inch

2шт.

46

1309016C1

SHAFT

- cleaning fan

1шт.

47

185480C1

HUB ASSY.

HUB ASSEMBLY - fan

2шт.

48

185483C1

BAR

- fan

12шт.

49

185484C1

SUPPORT

- cleaning fan blade

12шт.

50

182928C1

BLADE

- cleaning fan

6шт.

51

194395C1

SUPPORT

- fan shaft bearing, left

1шт.

52

194397C3

SHIELD

SUPPORT - fan intake, left

1шт.

53

1979818C1

PINION

SPROCKET - fan speed tachometer (Replaces 198526C1)

1шт.

54

431662

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

SCREW - set, headless cup point, 3/8 x 3/4 inch

1шт.

55

1301240C2

SUPPORT

- fan speed tachometer

1шт.

56

245193C2

SENSOR

TRANSDUCER - reluctance pickup

1шт.

57

84116C1

NUT

- stamped, 3/4 inch

1шт.

58

186024C1

ANGLE

- main sill center cross (For rice)

1шт.

59

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, Grade 8

2шт.

60

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 9/64 inch

2шт.

61

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

62

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

70шт.

63

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- pre-torque flange, 1/2 inch, Grade 8

2шт.

64

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

68шт.

65

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

3шт.

66

614452R1

WASHER

- flat, 13/32 x 1-1/4 x 3/32 inch

3шт.

67

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, 3/8 NC x 1 inch

3шт.
