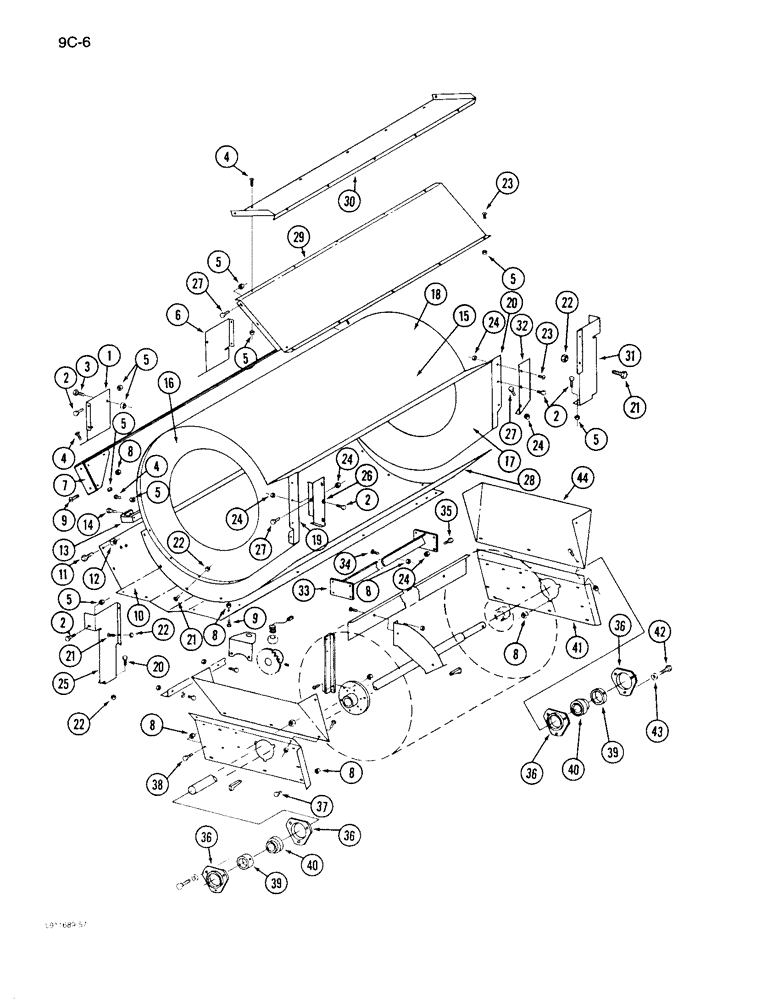

Запчасти Case IH 1640 (9C-06) - CLEANING FAN AND SHIELDS (15) - BEATER & CLEANING FANS

1

188112C2

SUPPORT

- intake, fan, front left

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

18шт.

3

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

4

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

23шт.

5

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

48шт.

6

188113C2

SUPPORT

- intake, fan, front right

1шт.

7

194712C2

SUPPORT

ASSEMBLY - fan, bottom shield

1шт.

8

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

18шт.

9

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch

11шт.

10

194717C1

SUPPORT

- bottom, fan

1шт.

11

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange lock. 1/2 NC x 1 inch

6шт.

12

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch

6шт.

13

191706C1

SUPPORT

- front support, fan

1шт.

14

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

15

1324001C91

KIT

FAN HOUSING KIT, Includes: Ref. 16 - 24

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - fan, left section

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - fan, right section

1шт.

18

NSS

NOT SOLD SEPARAT

SHEET - top

1шт.

19

186713C2

KIT

EXTENSION - filler, left

1шт.

20

186714C2

EXTENSION

- filler, right

1шт.

21

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT - slotted truss head, 1/4 NC x 1/2 inch

32шт.

22

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch

34шт.

23

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 2 inch

13шт.

24

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - lock, 5/16 inch

33шт.

25

188114C2

SUPPORT

- fan intake rear, left

1шт.

26

186715C1

SUPPORT

- fan side sheet, left

1шт.

27

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

6шт.

28

191702C1

SUPPORT

- fan housing bottom

1шт.

29

185043C1

SUPPORT

- pan to auger bed

1шт.

30

185042C1

SUPPORT

- chaffer front seal

1шт.

31

188115C2

SUPPORT

- fan intake rear, right

1шт.

32

186716C1

SUPPORT

- fan side sheet, right

1шт.

33

191703C3

SUPPORT ASSY.

SUPPORT ASSEMBLY - fan, rear

1шт.

34

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

4шт.

35

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

7шт.

36

180955C1

FLANGED BEARING,0.375"

FLANGE - fan shaft bearing

4шт.

37

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

4шт.

38

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

- hex flange, 3/8 NC x 1-1/2 inch

2шт.

39

455104R11

COLLAR

ASSEMBLY - fan bearing locking

2шт.

40

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

ASSEMBLY - fan

2шт.

41

194396C1

SUPPORT

- fan shaft bearing, right

1шт.

42

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, 3/8 NC x 1 inch

3шт.

43

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

3шт.

44

194398C3

SHIELD

SUPPORT - fan intake, right

1шт.
