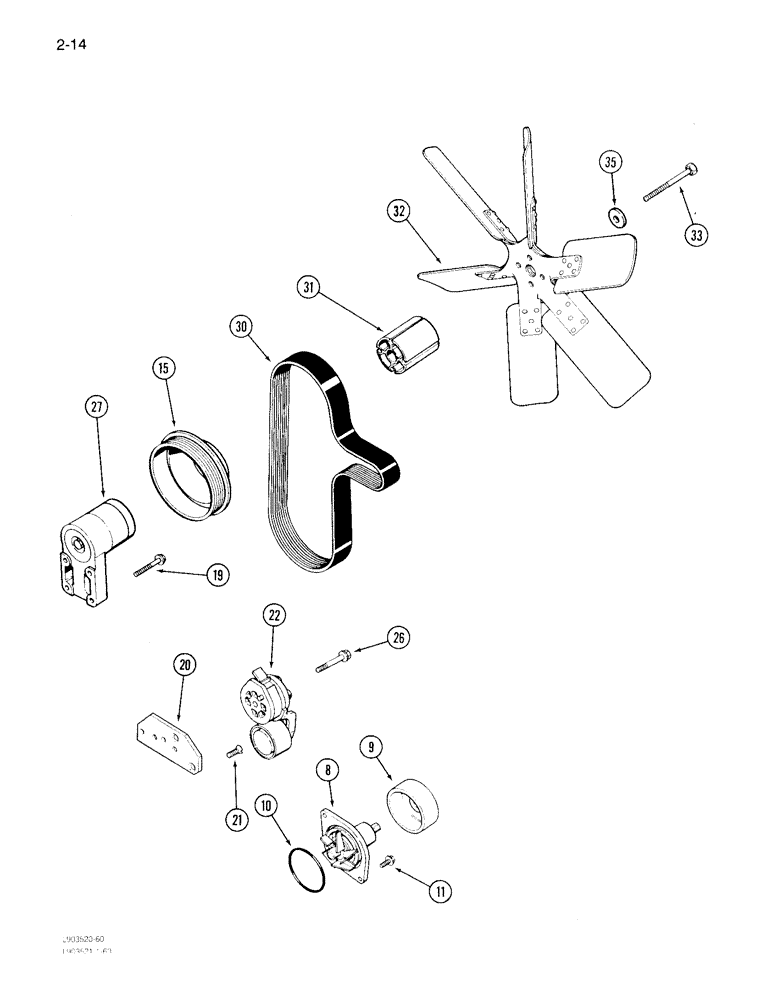

Запчасти Case IH 1640 (2-14) - WATER PUMP SYSTEM, 6TA-590 ENGINE (01) - ENGINE

AR77703

PUMP

- water, remanufactured

1шт.

J286278R

REMAN-WATER PUMP

1640 S/N JJC0034705 & Aft.

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77703

CORE-WATER PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

A77703

PUMP, WATER

PUMP KIT - water, Includes: Ref. 8 - 10

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

1640 S/N JJC0034705 & Aft., Replaces P/N A77703 & AR77703

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

8

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water

1шт.

9

NSS

NOT SOLD SEPARAT

PULLEY - pump

1шт.

10

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

11

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

15

J914462

PULLEY,163mm OD

- fan

1шт.

19

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 40 mm, 8.8

4шт.

20

J919985

SUPPORT

BRACKET - belt tension

1шт.

21

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head slotted, 8 x 25 mm

2шт.

22

J914086

BELT TENSIONER

TENSIONER ASSEMBLY - belt

1шт.

26

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, Grade 10.9

1шт.

27

J913433

BRACKET

ASSEMBLY - fan

1шт.

30

J911562

V-BELT,27.92mm W x 1460.5mm L, 8 Ribs

Fan, Replaces J911565 3.56 mm W x 1460.50 mm L, 8 Ribs

1шт.

31

A184548

SPACER,Fan, 89/90mm Thk

- fan

1шт.

32

84583C2

FAN

- engine, puller

1шт.

33

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 mm - 1.5 x 130 mm

4шт.

35

96-81004

WASHER,0.41" ID x 1.25" OD x 0.24" Thk

- flat, 13/32 x 1-1/4 x 15/64 inch

4шт.
