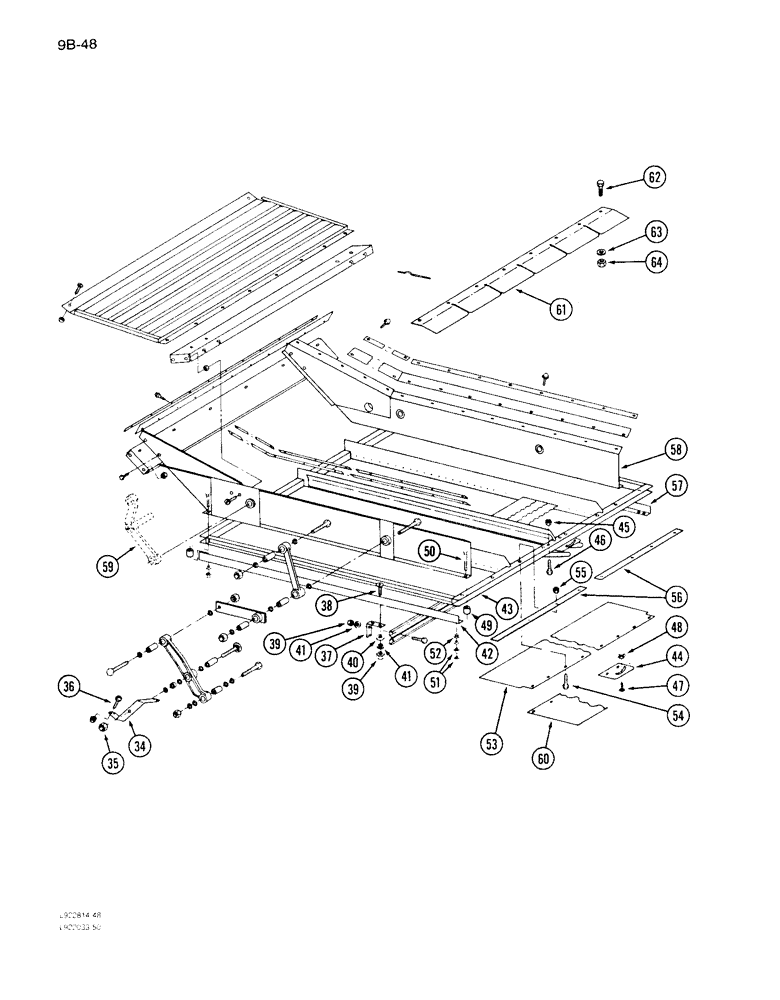

Запчасти Case IH 1640 (9B-48) - CHAFFER SIEVE (CONTD) (14) - ROTOR, CONCANVES & SIEVE

43

1330685C1

GRAIN SIEVE

SIEVE ASSEMBLY - 1-5/8 close slat chaffer (Corn standard) (Optional for grain) (Includes Ref. No. 44)

1шт.

43

1330684C1

GRAIN SIEVE

SIEVE ASSEMBLY - 1-1/8 adjustable chaffer (Standard for grain) (Includes Ref. No. 44)

1шт.

43

1330686C1

GRAIN SIEVE

SIEVE ASSEMBLY - 1-5/8 corn chaffer (Standard for corn) (Optional for grain) (Includes Ref. No. 44)

1шт.

43

1957316C2

GRAIN SIEVE

SIEVE - 1-1/8 inch adjustable chaffer

1шт.

43

1325323C3

GRAIN SIEVE

SIEVE - extended length, with piano wire

1шт.

43

1319092C4

GRAIN SIEVE

SIEVE ASSEMBLY - Peterson chaffer (Parts accessory)

1шт.

43

1970516C3

GRAIN SIEVE

SIEVE ASSEMBLY - Peterson chaffer (Long cleaning system)

1шт.

44

186675C1

ADJUSTING PLATE

- chaffer lever

1шт.

45

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch

2шт.

46

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

47

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT - round head square neck, 1/4 NC x 1/2 inch, Grade 2

1шт.

48

126177

WING NUT

NUT - wing, 1/4 inch NC

1шт.

49

612233R1

SPACER,5/8" Tube x 1 1/8"

- chaffer sieve support rear

2шт.

50

426-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

50

326-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 8

2шт.

51

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, Grade 8

4шт.

52

366862C1

LOCK WASHER,3/8"

3/8"

2шт.

53

195186C2

SEAL

SEAL - chaffer

1шт.

54

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

8шт.

55

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

8шт.

56

1338343C1

RETAINER

- sieve, left

1шт.

56

1338344C1

RETAINER

- sieve, right

1шт.

57

186370C1

ANGLE

- chaffer support, right

1шт.

58

1979203C1

RAIL

- chaffer, right (Replaces 185431C4)

1шт.

59

REF

INSTRUCTION

LEVER ASSEMBLY - chaffer drive hanger (Refer to shaker shaft and auger drive, see Figure 9B-40)

2шт.

60

1302784C1

STRIP

EXTENSION - chaffer

1шт.

61

1319258C1

COVER

- chaffer finger

1шт.

Part of parts accessory kit P/N 1319278C91

1шт.

62

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

6шт.

63

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

64

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.

1319278C91

PACKAGE

KIT - parts accessory, Alfalfa (Includes: Ref. 11 on 9B-42, Ref. 32 - 44 on 9B-44, and Ref. 61 on 9B-48)

1шт.
