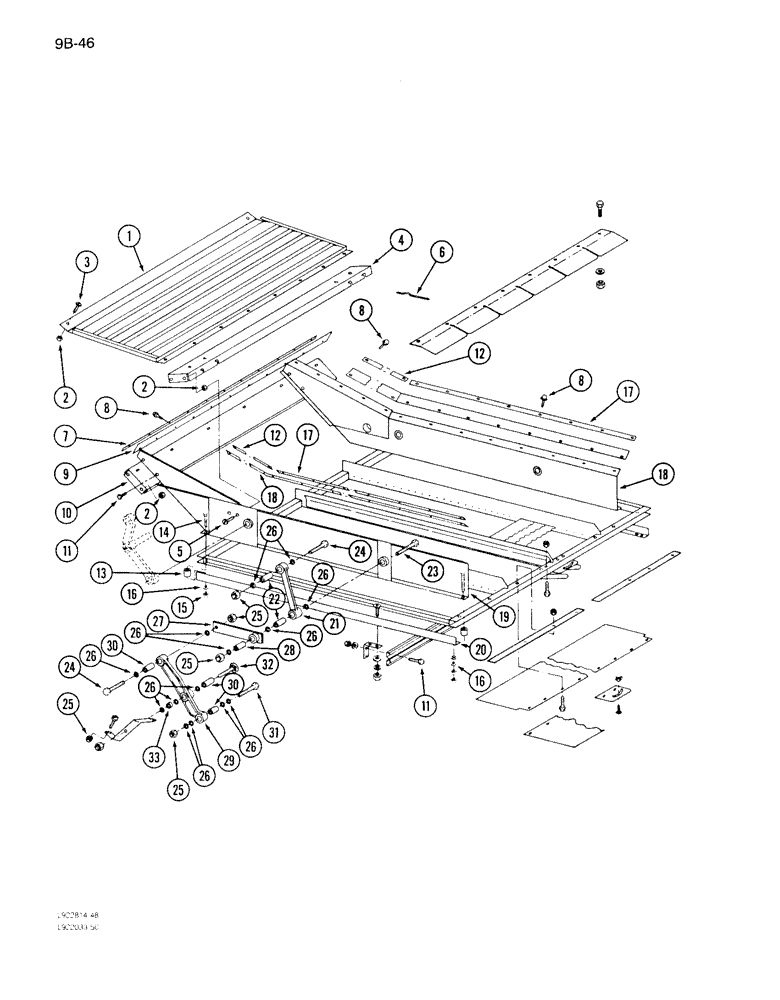

Запчасти Case IH 1640 (9B-46) - CHAFFER SIEVE (14) - ROTOR, CONCANVES & SIEVE

1

192056C1

GRAIN PAN

PAN - grain

1шт.

2

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

20шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

12шт.

4

192060C1

SUPPORT

- chaffer pan

1шт.

5

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

4шт.

6

175114C1

FINGER,Formed, 1 Prong, 264mm L

- auger bed, short sieve

13шт.

6

1312476C1

FINGER,Formed, 1 Prong, 495.5mm L

- auger bed, long sieve

26шт.

7

192048C1

BAR

- front chaffer frame seal

1шт.

8

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

BOLT - hex washer head tap, 1/4 x 1/2 inch

48шт.

9

192047C1

SEAL,63.5mm W x 1143mm L

STRIP - chaffer frame front

1шт.

10

192044C1

SUPPORT

- chaffer frame

1шт.

11

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

8шт.

12

192052C2

BAR

- chaffer frame seal

2шт.

13

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- chaffer sieve support front (Replaces 186646C1)

2шт.

14

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- hex, 3/8 NC x 2-1/4 inch, Grade 8

2шт.

15

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8

2шт.

16

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

- flat, 13/32 x 1 x 11/64 inch

4шт.

17

192053C1

BAR

- chaffer frame seal

2шт.

18

192051C3

SEALING STRIP

- chaffer frame

2шт.

19

1979202C1

RAIL

- chaffer, left (Replaces 185430C4)

1шт.

20

186369C1

ANGLE

- chaffer support, left

1шт.

21

175131C91

ARM ASSY.

ARM ASSEMBLY - rear hanger, Includes: Ref. 22

2шт.

22

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- hanger arm

2шт.

23

25390R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 8

- hex, 5/8 NC x 6-1/2 inch, Grade 8

2шт.

24

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

- hex, 5/8 NC x 3-1/2 inch, Grade 8

4шт.

25

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

10шт.

26

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

28шт.

27

188010C91

ARM ASSY.

ARM ASSEMBLY - shoe rear, Includes: Ref. 28

2шт.

28

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- shoe arm

1шт.

29

192941C92

LEVER ASSY.

LEVER ASSEMBLY - shoe, Includes: Ref. 30

2шт.

30

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- shoe lever

3шт.

31

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, G8

2шт.

31

326-1092

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 8

2шт.

32

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

BOLT - round head square neck, 5/8 x 6 inch

2шт.

32

111-630

CARRIAGE BOLT,Short NK, 5/8"-11 x 4", G2

BOLT, CARRIAGE, Short NK, 5/8"-11 x 4", G2

2шт.

33

168250C1

RING

SPACER - shoe and chaffer lever

2шт.

34

193107C2

SUPPORT

- shoe lever, left

1шт.

34

193108C2

SUPPORT

- shoe lever, right

1шт.

35

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch

8шт.

36

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

8шт.

37

186674C1

ANGLE

- rear deflector

2шт.

38

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

4шт.

39

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

40

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

4шт.

41

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

42

192070C2

CHANNEL

- rear

1шт.
