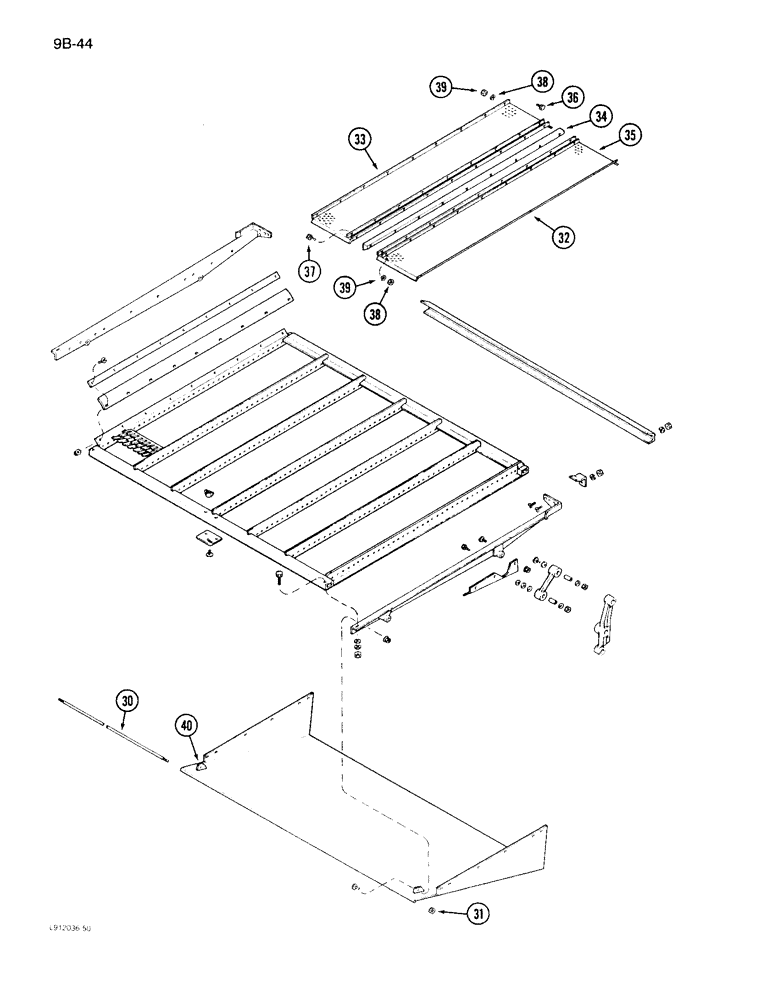

Запчасти Case IH 1640 (9B-44) - SHOE SIEVE (CONTD) (14) - ROTOR, CONCANVES & SIEVE

30

1319217C1

ROD

- return pan bottom rear

1шт.

31

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

32

1319285C1

SCREEN

- perforated side section (See Note)

2шт.

For use with 192091C2 sieve. See Ref 19, Figure 9B-42.

1шт.

Part of parts accessory kit P/N 1319278C91

1шт.

33

1319286C1

SCREEN

- perforated mid section (See Note)

2шт.

For use with 192091C2 sieve. See Ref 19, Figure 9B-42.

1шт.

Part of parts accessory kit P/N 1319278C91

1шт.

34

1319284C1

BAR

- wood spacer (See Note)

1шт.

For use with 192091C2 sieve. See Ref 19, Figure 9B-42.

1шт.

Part of parts accessory kit P/N 1319278C91

1шт.

35

1319300C1

BAR

- screen fastener backing (See Note)

8шт.

For use with 192091C2 sieve. See Ref 19, Figure 9B-42.

1шт.

Part of parts accessory kit P/N 1319278C91

1шт.

36

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch (See Note)

18шт.

For use with 192091C2 sieve. See Ref 19, Figure 9B-42.

1шт.

Part of parts accessory kit P/N 1319278C91

1шт.

38

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (See Note)

27шт.

For use with 192091C2 sieve. See Ref 19, Figure 9B-42.

1шт.

Part of parts accessory kit P/N 1319278C91

1шт.

39

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (See Note) 1/4"

27шт.

For use with 192091C2 sieve. See Ref 19, Figure 9B-42.

1шт.

Part of parts accessory kit P/N 1319278C91

1шт.

40

1319219C1

PLATE

BAR - shoe return pan filler

2шт.

1319278C91

PACKAGE

KIT - parts accessory, alfalfa (Includes: Ref. 11 on 9B-42, Ref. 32 - 44 on 9B-44, and Ref. 61 on 9B-48)

1шт.

37

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

(See Note) Hex, 1/4"-20 x 1 1/4", G5

9шт.

For use with 192091C2 sieve. See Ref 19, Figure 9B-42.

1шт.

Part of parts accessory kit P/N 1319278C91

1шт.
