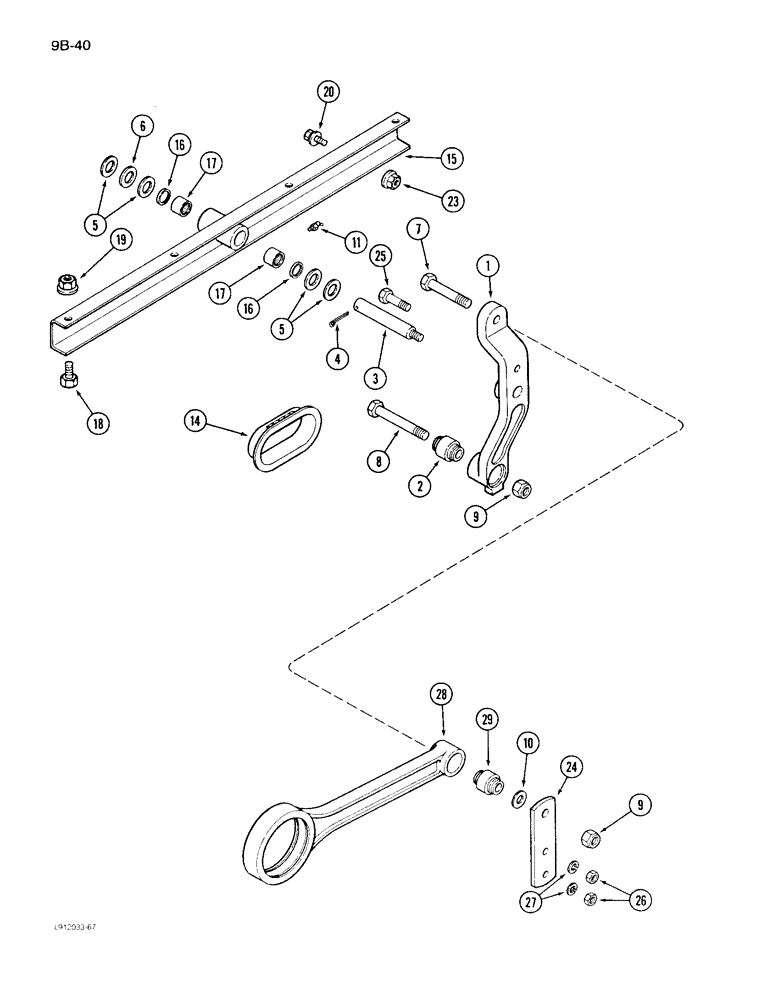

Запчасти Case IH 1640 (9B-40) - CHAFFER DRIVE HANGER LEVER AND SUPPORT (14) - ROTOR, CONCANVES & SIEVE

1

1321374C91

LEVER ASSY.

LEVER ASSEMBLY - chaffer drive hanger, Includes: Ref. 2, 3

2шт.

2

186597C1

BUSHING,16mm ID x 38.23mm OD x 44.7mm L

- chaffer drive hanger arm

1шт.

3

186740C1

PIN,22.25mm OD x 147.32mm L

SHAFT - hanger arm

1шт.

If dealer is looking for a 5/8 thread on P/N 186740C1, go to P/N 1979251C1.

1шт.

4

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

2шт.

5

21714R1

WASHER

- flat, 29/32 x 1-1/2 x 7/64 inch

6шт.

6

21761R1

WASHER

- flat, 29/32 x 1-1/2 x 3/64 inch

4шт.

7

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

- hex, 5/8 NC x 3-1/2 inch, Grade 8

2шт.

8

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, G8

2шт.

9

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

10

21782R1

WASHER

- flat, 21/32 x 2 x 3/64 inch

1шт.

11

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - grease, 45 degree, 1/4 inch

2шт.

14

1302644C2

SEAL

PLUG - chaffer rail front pivot

2шт.

15

186651C91

SUPPORT ASSY.

SUPPORT ASSEMBLY - front hanger, Includes: Ref. 16, 17

2шт.

16

372756R91

OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk

- front hanger support bearing

2шт.

17

G10642

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W

BEARING - front hanger support

2шт.

18

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

12шт.

19

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flanged hex lock

12шт.

20

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- flanged hex lock, 5/16 NC x 3/4 inch

4шт.

23

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flanged hex lock, 5/16 inch NC

4шт.

24

186752C1

BAR

- pitman stablizer

2шт.

25

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

26

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

28

REF

INSTRUCTION

PITMAN - shaker shaft, Includes: Ref. 29

2шт.

Prior to P.I.N. JJC0097190, See Figure 9B-36.

1шт.

29

186597C1

BUSHING,16mm ID x 38.23mm OD x 44.7mm L

- chaffer drive hanger arm

1шт.

Prior to P.I.N. JJC0097190, See Figure 9B-36.

1шт.

28

REF

INSTRUCTION

PITMAN - shaker shaft, Includes: Ref. 29

2шт.

For P.I.N. JJC0097190 and after, see Fig. 9B-38.

1шт.

29

REF

INSTRUCTION

BUSHING - shaker shaft

1шт.

For P.I.N. JJC0097190 and after, see Fig. 9B-38.

1шт.
