Запчасти Case IH 1640 (2-10) - ROTARY AIR SCREEN CHUTE, PRIOR TO P.I.N. JJC0097001 (01) - ENGINE

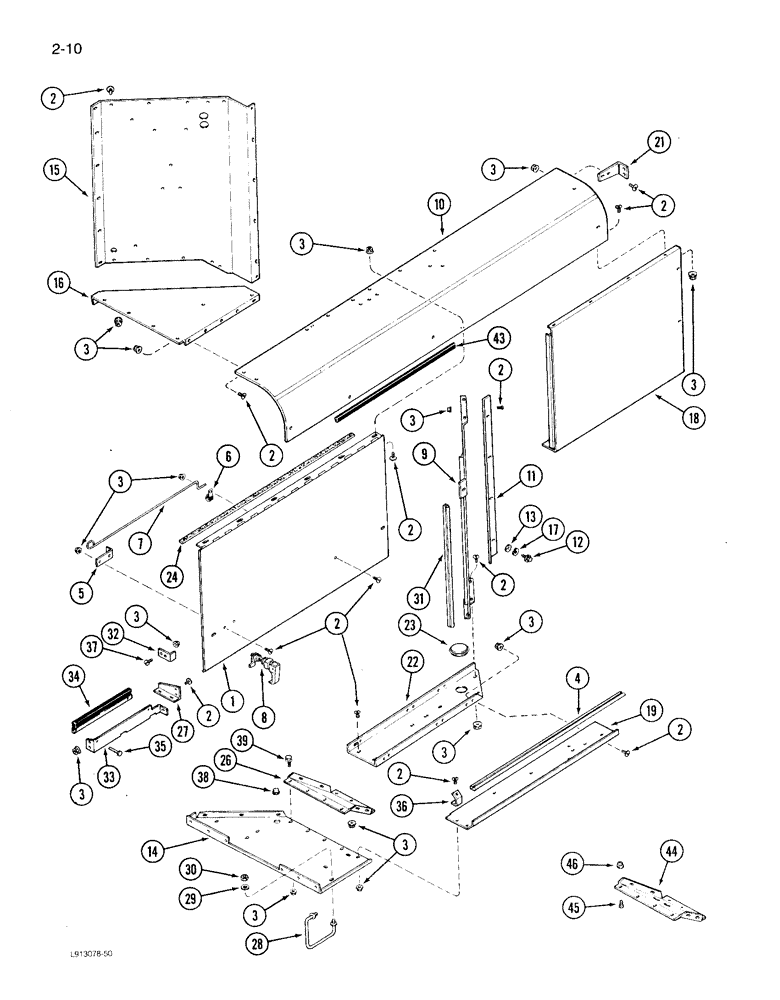

Схема запчастей Case IH 1640 - (2-10) - ROTARY AIR SCREEN CHUTE, PRIOR TO P.I.N. JJC0097001 (01) - ENGINE
3
2
4
14
3
30
28
45
31
2
3
3
13
35
1
3
3
2
2
29
17
2
34
18
36
2
22
32
2
5
39
21
8
38
3
3
11
7
16
2
46
3
2
19
9
44
23
21
26
12
15
24
10
6
2
43
3
3
3
37
33

Артикул

Название

Примечание

Количество

1

1321245C1

DOOR

- radiator access

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

84шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

92шт.

4

1977216C1

SEAL

- radiator access door, bottom

1шт.

5

1319697C1

SUPPORT

- rod mounting

1шт.

6

362123R1

CLIP

- trim

1шт.

7

183444C1

ROD

- door

1шт.

8

1302494C2

LATCH

- access door

2шт.

9

1317998C1

DEFLECTOR

- screen chute

1шт.

10

1977122C5

CHUTE (DOWNWARD)

CHUTE - air screen, top

1шт.

11

1970200C1

SUPPORT

- deflector

1шт.

12

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

19шт.

13

495-21044

WASHER,3/8"

(flat, 13/32 x 1 x 3/64 inch) 3/8"

11шт.

14

1324919C3

SHEET

SUPPORT - bottom rear

1шт.

15

1979227C1

SHEET

SUPPORT - screen chute rear

1шт.

16

1324920C2

SUPPORT

- screen, upper

1шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

18

1321305C2

SHEET ASSY.

SUPPORT - air screen, front side

1шт.

19

1315675C3

SUPPORT

CHUTE - bottom rear outlet

1шт.

21

1317704C1

SUPPORT

- top chute mounting

1шт.

22

1979471C4

SUPPORT

- radiator clean out (Replaces 1315669C2)

1шт.

23

1302758C1

PLUG

- clean out hole

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - door hinge, 37-1/2 inch (Order 1338148C1, Serial Range: cut-length)

1шт.

26

1315674C2

SUPPORT

- bottom front

1шт.

27

1968548C1

SUPPORT

- chute discharge

1шт.

28

1321939C2

ROD

BAR - assist handle

1шт.

29

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 5/64 inch

2шт.

30

905263R1

NUT,M12 x 1.75, Cl 10

NUT - hex prevailing torque, 12 mm, Grade 10 (Order 487374R1)

2шт.

31

1319817C2

SEAL

- radiator door

2шт.

32

1317718C1

BRACKET

- door lock

1шт.

33

1968546C2

SUPPORT

- discharge chute

1шт.

34

1338012C1

BRUSH, COMMUTATOR

BRUSH - block off

1шт.

35

196880C1

RIVET

- mandrel

2шт.

36

561915R1

BRACKET

SUPPORT - light

1шт.

37

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss, 5/16 x 3/4 inch

2шт.

38

1970461C1

GROMMET

- 1-1/2 x 1-1/8 x 7/16 inch

1шт.

38

28627R1

GROMMET,1 1/8" ID x 1 3/4" x .062", Diag cut

- 1-1/8 x 1-3/4 x 7/16 inch

1шт.

39

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

18шт.

43

1315670C3

SEAL

SEAL - radiator top and bottom

2шт.

44

1979728C2

SUPPORT

- chute, bottom rear

1шт.

45

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

46

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

7шт.

Выбрано товаров: 42
