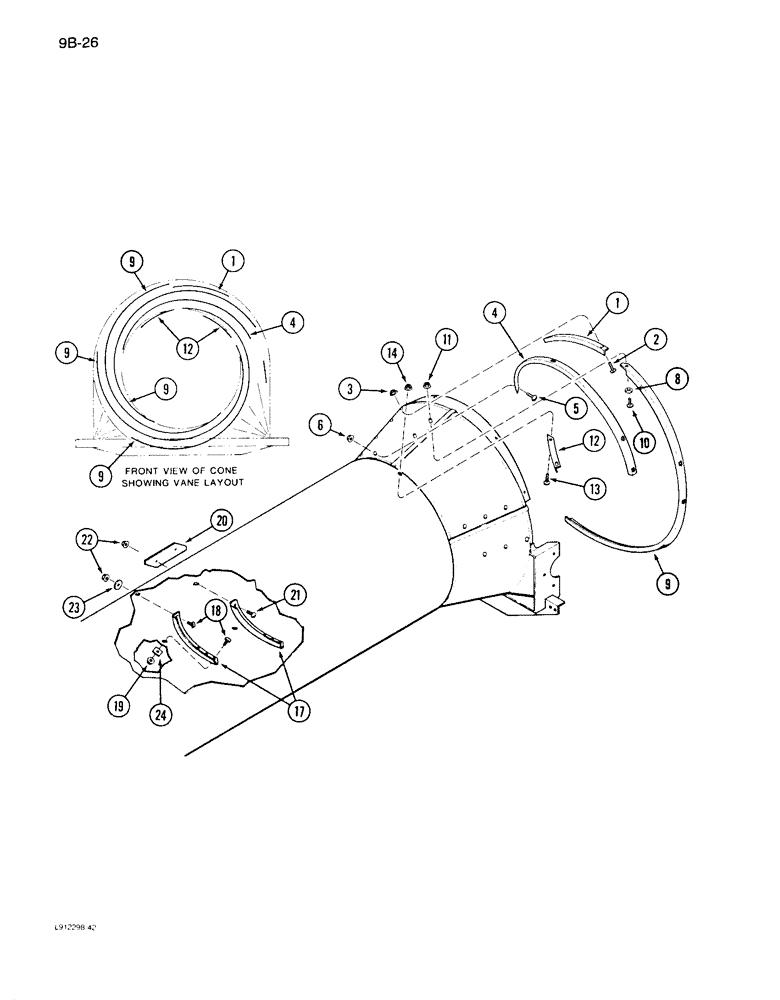

Запчасти Case IH 1640 (9B-26) - VANE (14) - ROTOR, CONCANVES & SIEVE

1

186984C1

EXTENSION

VANE - cone extension

2шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

4шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

4шт.

4

186985C3

SUPPORT

VANE - cone, front

1шт.

5

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

5шт.

6

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

5шт.

8

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

1шт.

9

195355C3

GUIDE

VANE - cone, front

4шт.

10

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

24шт.

10

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

BOLT - slotted truss head, 5/16 NC x 1-1/4 inch

1шт.

11

231-1445

NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC

1шт.

11

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

24шт.

12

193179C2

VANE

VANE - extension transport

3шт.

13

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

5шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

5шт.

17

193175C2

GUIDE

VANE - transport

13шт.

18

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

- vane adjusting

39шт.

19

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

39шт.

20

1318418C1

BAR

PLATE - vane

6шт.

21

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

- vane adjusting

1шт.

22

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

1шт.

23

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

- flat, 13/32 x 2-1/2 inch

10шт.

24

570052R1

SQ HOLE WASHER,11mm ID x 38mm OD x 4.8mm Thk

- square, 13/32 x 1-1/2 x 3/16 inch

2шт.
