Запчасти Case IH 1640 (2-08) - ROTARY AIR SCREEN (01) - ENGINE

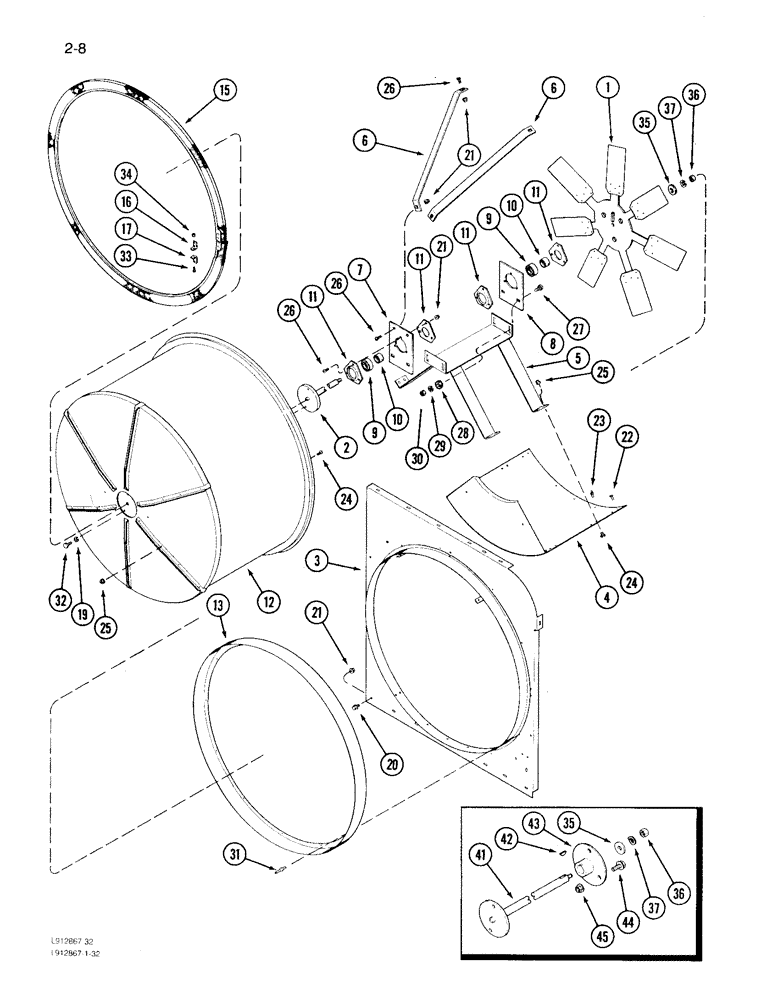

Схема запчастей Case IH 1640 - (2-08) - ROTARY AIR SCREEN (01) - ENGINE
13
11
7
15
45
16
21
30
5
24
36
20
17
22
34
44
6
4
43
26
11
19
37
35
21
37
26
2
23
32
35
36
31
9
9
3
21
28
41
10
24
11
25
6
8
11
27
10
1
33
29
12
26
42
25

Артикул

Название

Примечание

Количество

1

1347257C1

FAN,7 Blades, 685.8mm OD

- rotary air screen (Square key welded on part)

1шт.

1

1957272C2

FAN

- rotary air screen (Woodruff key welded on part)

1шт.

1957272C2 THIS FAN DOES NOT HAVE THE WELDED KEY - IF FAN WITH WELDED KEYWAY IS NEEDED - ORDER PART NUMBER 1347257C1.

1шт.

2

1347255C1

SHAFT

- rotary air screen fan (Used with square key)

1шт.

3

1317755C4

SUPPORT

ADAPTER - rotary air screen

1шт.

4

194224C1

BAFFLE ASSY.

BAFFLE - rotary air screen

1шт.

5

194226C2

SUPPORT

- bearing

1шт.

6

194221C2

STAY

SUPPORT - bearing

2шт.

7

164605C1

LARGE PLATE

SUPPORT - bearing flange

1шт.

8

164604C1

BAR

SUPPORT - bearing flange

1шт.

9

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

ASSEMBLY - shaft, rotary air screen

2шт.

10

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

ASSEMBLY - lock, bearing

2шт.

11

H333534

FLANGED BEARING

FLANGE - bearing

4шт.

12

1977217C1

SIEVE

- rotary screen, fine

1шт.

13

1338011C1

SEALING RING

- brush seal

1шт.

15

164615C92

BRUSH, COMMUTATOR

BRUSH ASSEMBLY - rotary air screen, Includes: Ref. 16, 17

1шт.

16

164616C1

ANGLE

CLIP - brush, short

1шт.

17

164617C1

ANGLE

CLIP - brush, long

1шт.

19

492-11038

LOCK WASHER,3/8"

2шт.

20

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

17шт.

20

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

2шт.

21

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

30шт.

22

104235

RIVET,FH, 3/16" x 1/2"

4шт.

23

55077C1

RIVET

- 3/16 x 9/32 inch

3шт.

24

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss, 1/4 x 1/2 inch

20шт.

25

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex, flange lock, 1/4 inch

20шт.

26

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss, 5/16 NC x 1 inch

10шт.

27

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

4шт.

28

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

4шт.

29

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

30

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

31

201946C1

RIVET,Pop, 3/16" x .325"

- 48 x 83 mm break mandrel

12шт.

32

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

33

470-11016

SCREW,Pan HD, #10 - 24 x 1"

- machine, pan head slotted, No. 10 NC x 1 inch

1шт.

34

19910R1

LOCK NUT

- hex prevailing torque, No. 10 NC

1шт.

1338452C1

SET OF PARTS

HUB KIT - fan, rotary screen, Includes: Ref. 35 - 45

1шт.

35

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

1шт.

36

125-10002

SPECIAL NUT,3/8"-16, G5, LH

1шт.

37

632019R1

LOCK WASHER,3/8"

L.H. twist 3/8"

1шт.

41

1968544C2

SHAFT ASSY.

SHAFT - rotary air screen fan (Used with Woodruff key)

1шт.

42

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

43

1338442C1

HUB ASSY.

HUB - rotary screen fan

1шт.

44

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

3шт.

45

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

3шт.

Выбрано товаров: 44
