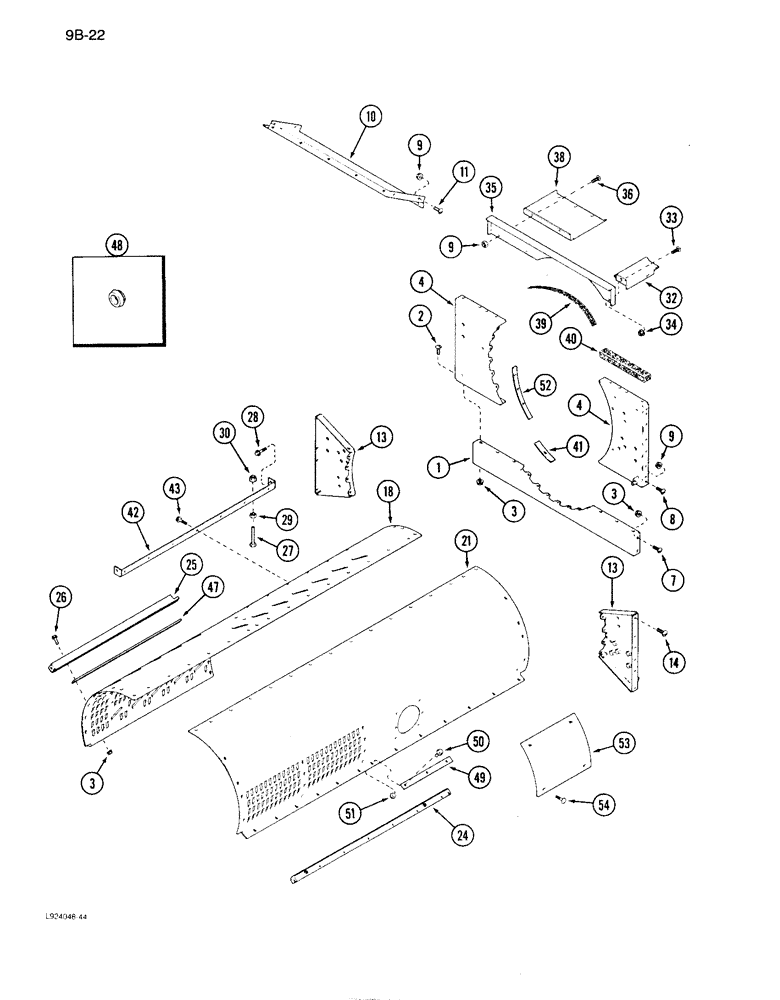

Запчасти Case IH 1640 (9B-22) - CAGE, FRONT (14) - ROTOR, CONCANVES & SIEVE

1

192297C2

SUPPORT

- lower seal

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

1шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

1шт.

4

1994848C1

SUPPORT

- rotor cage, left front (Replaces 1338055C1)

1шт.

4

1338045C2

SUPPORT

- rotor cage, right front

1шт.

7

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

4шт.

8

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

6шт.

9

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

1шт.

10

193152C1

SUPPORT

- front grain tank

1шт.

11

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

9шт.

13

1338056C1

SUPPORT

- rotor cage, left intermediate

3шт.

13

1338044C1

SUPPORT

- rotor cage, right intermediate

1шт.

14

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head special, 3/8 NC x 1 inch

18шт.

18

1318829C1

CAGE

SUPPORT - rotor solid, left

1шт.

21

1318419C2

CAGE

SUPPORT - rotor, right

1шт.

24

188333C1

SUPPORT

- cage, right

1шт.

25

185386C1

SUPPORT

- cage, left ( replaced 1309191C1 )

1шт.

26

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

BOLT - hex flange, 3/8 NC x 1 inch

15шт.

27

931008R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5, Full Thd

- concave adjusting, hex, 1/2 NC x 3-1/2 inch

2шт.

28

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

2шт.

29

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

30

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

2шт.

32

193862C1

SUPPORT

- gear housing inner extension

1шт.

33

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

3шт.

34

488837C1

SPRING NUT

- speed, 5/16 inch

2шт.

35

186169C1

SUPPORT

- grain tank to cage top

1шт.

36

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

10шт.

38

186168C1

SUPPORT

- side sheet to cage forward

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL - grain tank support (Order 191498C1)

1шт.

40

NSS

NOT SOLD SEPARAT

SEAL - grain tank support (Order 73220C1, Serial Range: cut-length)

2шт.

41

186797C2

SUPPORT

- cage filler, rear

1шт.

42

185386C1

SUPPORT

- cage, left ( replaced )

1шт.

43

186917C1

SCREW

BOLT - hex special, 3/8 NC x 3/4 inch

19шт.

47

183323C1

STRAP

BAR - cage grate

1шт.

48

198822C1

GROMMET,6.35mm ID x 41.1mm OD x 26.9mm Thk

- grain tank to cage support

1шт.

48

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- grain tank to cage support

1шт.

48

195803C1

GROMMET

- housing inner sheet hole

1шт.

49

186785C2

REINFORCEMENT

BAR - cage reinforcement, front

1шт.

50

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

1шт.

51

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

1шт.

52

1318899C1

SUPPORT

- cage, left front

1шт.

53

1979540C1

COVER

- rotor separator, upper right

2шт.

54

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

- flat raised head special

8шт.
