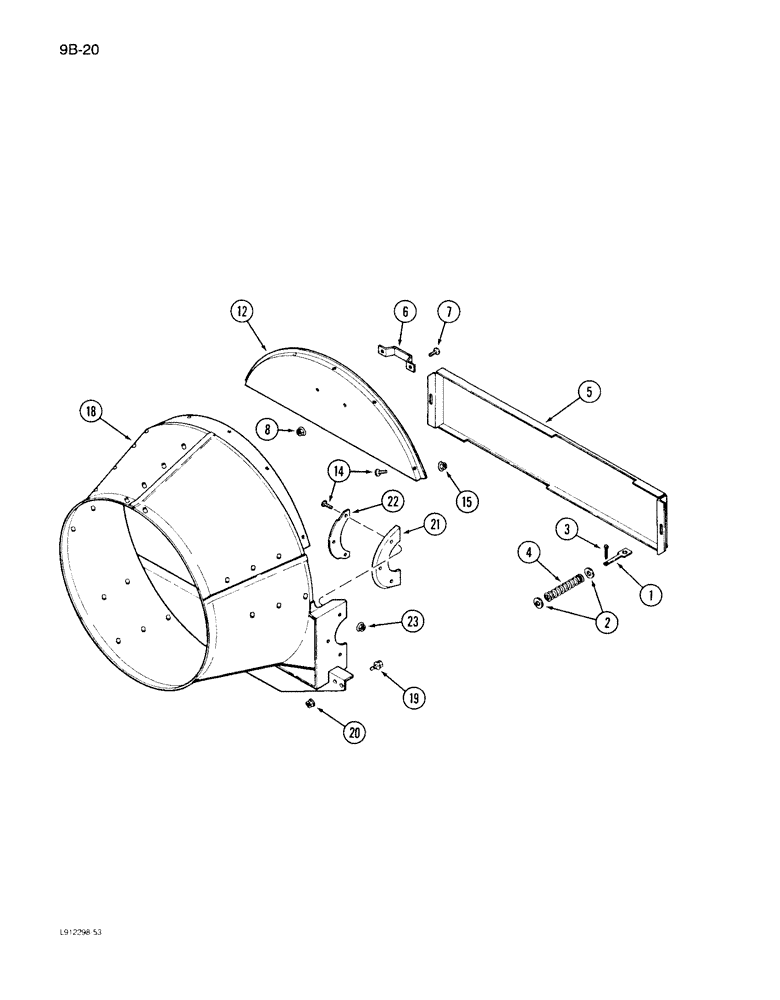

Запчасти Case IH 1640 (9B-20) - CONE (14) - ROTOR, CONCANVES & SIEVE

1

188029C1

LATCH

- separator, front door (Replaces 454502R1)

2шт.

2

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/64 inch

4шт.

3

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

2шт.

4

M296

SPRING

- front door latch

2шт.

5

193436C3

INSPECTION DOOR

DOOR - separator, front

1шт.

6

160638C1

HANDLE

- rotor, front door

1шт.

7

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

2шт.

8

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

2шт.

12

1300208C91

DOOR

ASSEMBLY - rotor, front, Includes: Decal

1шт.

179749C2

PRODUCT GRAPHIC

DECAL - danger (See Page 9H-33)

1шт.

14

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

5шт.

15

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

5шт.

18

1317770C2

CONE

ASSEMBLY - transition

1шт.

19

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

4шт.

20

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

4шт.

21

195202C1

SEAL

- feeder

2шт.

22

195409C1

PLATE

- seal backup

2шт.

23

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

6шт.
