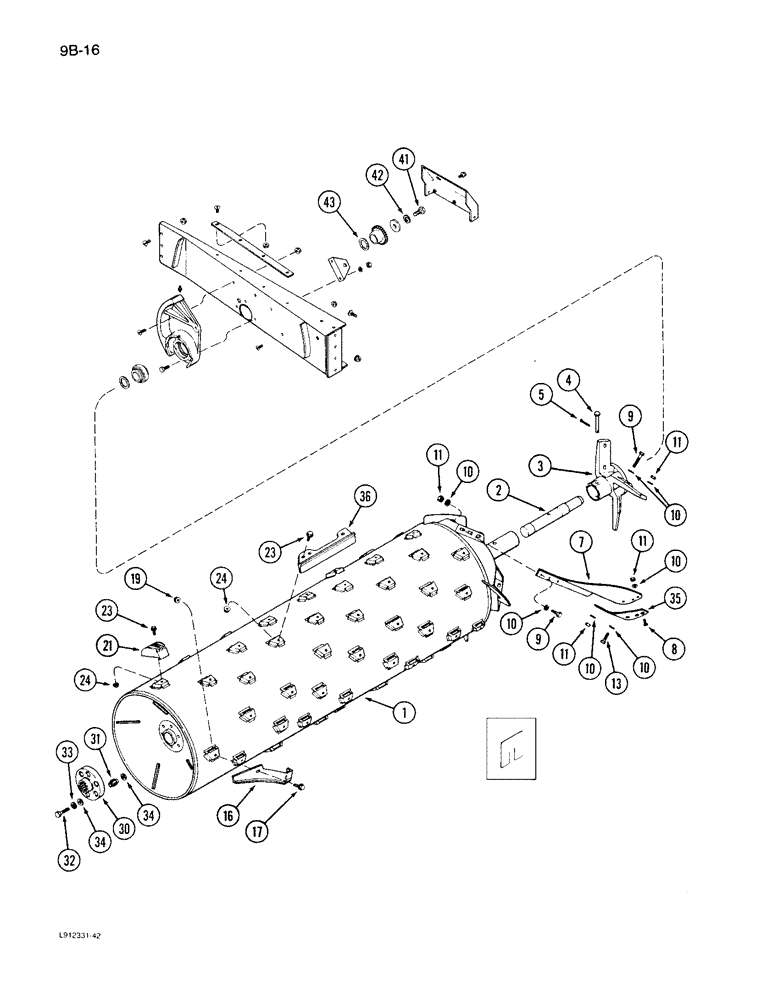

Запчасти Case IH 1640 (9B-16) - ROTOR, SPECIALTY CROP (14) - ROTOR, CONCANVES & SIEVE

1

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - threshing, 24 inch chrome bean special (Custom Cutters) (Order 1327672C92), Includes: Ref. 2 - 43

1шт.

1

1317405C91

ROTOR

ASSEMBLY - threshing, edible bean (Replaces 1327672C92), Includes: Ref. 2 - 43

1шт.

1

1347121C1

ROTOR ASSY.

ROTOR ASSEMBLY - threshing, without spiked bars, Includes: Ref. 2 - 43

1шт.

2

191545C2

SHAFT

- rotor front

1шт.

3

191546C2

IMPELLER

- rotor front

1шт.

4

22109R1

HEADED PIN

PIN - clevis, 3/4 x 4-1/2 inch

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

1957446C1

BLADE

KIT - rotor, Includes: Ref. 7 - 13

1шт.

7

NSS

NOT SOLD SEPARAT

BLADE - rotor (Order 1957446C1)

3шт.

8

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT - hex socket flat head, 1/2 NC x 1-1/2 inch

9шт.

9

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch

9шт.

10

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch

2шт.

11

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

24шт.

13

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

3шт.

13

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, Grade 8

3шт.

16

1317690C1

ANGLE

- kicker

3шт.

16

1968967C1

KIT

ANGLE - kicker, chrome

3шт.

17

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- hex flange, 1/2 NC x 1-1/4 inch, Grade 8

6шт.

19

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, 1/2 inch NC, Grade 8

6шт.

21

1309175C1

BAR

- rasp, with spike, rice

21шт.

21

1309336C1

BAR

- rasp, without spike, edible bean

54шт.

21

1309336C1

BAR

- rasp, without spike, rice

33шт.

21

1968743C1

BAR

- rasp, without spike, 24 inch chrome special rotor

33шт.

21

1968970C1

BAR

- rasp, with spike, chrome

21шт.

23

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- hex flange, 1/2 NC x 1-1/4 inch

1шт.

23

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

24шт.

24

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8

24шт.

24

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, 1/2 inch NC

1шт.

30

1345307C1

COUPLING

ASSEMBLY - rotor drive (Replaces 185166C91)

1шт.

31

180703C1

PACKAGE,SERVICE

BUSHING KIT - rotor drive hub (Set of 6)

1шт.

31

1345453C1

RUBBER INSULATOR

Rotor Drive Hub

6шт.

32

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, Grade 8

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

34

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

- hardened

12шт.

35

1309185C1

SUPPORT

BAR - wear, chome

3шт.

36

1318976C1

BAR

- separator

3шт.

36

1968969C1

BAR

- separator, chrome

3шт.

41

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

- hex, 3/4 NC x 1-3/4 inch, Grade 2

1шт.

41

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

1шт.

42

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

43

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.
