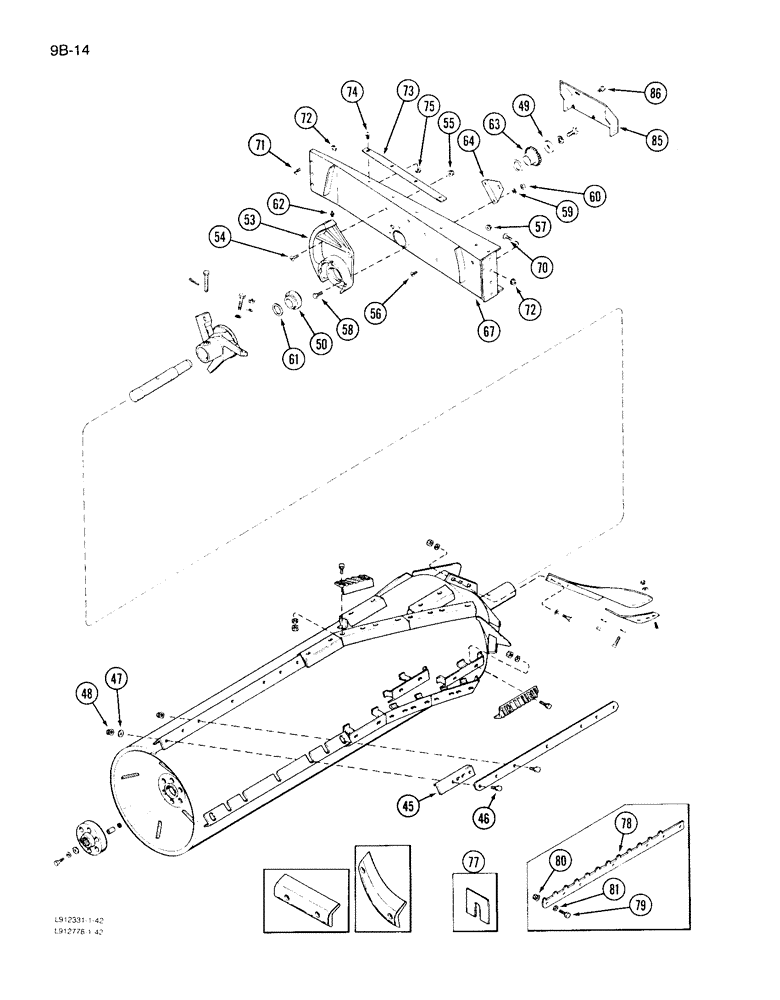

Запчасти Case IH 1640 (9B-14) - ROTOR, GRAIN AND CORN (CONTD) (14) - ROTOR, CONCANVES & SIEVE

45

183335C3

SUPPORT

BRACKET - rotor extension

3шт.

46

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

6шт.

47

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- hardened

6шт.

48

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

6шт.

49

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

- rotor front shaft, 25/32 x 2-1/2 x 1/4 inch

1шт.

50

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

BEARING ASSEMBLY - rotor front

1шт.

53

1309076C1

BEARING HOUSING

- rotor front bearing

1шт.

54

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

BOLT - slotted truss head, 3/8 NC x 1-1/4 inch

2шт.

55

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

2шт.

56

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 NC x 1 inch

2шт.

57

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

2шт.

58

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

59

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

60

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

61

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

WASHER - front bearing housing

1шт.

62

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

63

1979965C1

ROTOR

- multi-position tachometer (Replaces 198527C1)

1шт.

64

1301239C1

BRACKET

- rotor tachometer

1шт.

67

193163C5

SUPPORT

- front bearing

1шт.

70

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

4шт.

71

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- slotted truss head, 1/2 NC x 1-1/4 inch

3шт.

72

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

7шт.

73

1308967C1

BAR

- rotor front door hold down

1шт.

74

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 NC x 1 inch

4шт.

75

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

4шт.

1324031C1

PACKAGE

KIT - grain rotor separator angle bar support

1шт.

1324208C1

SHIM KIT

KIT - rotor rasp shim, Includes: Ref. 77

1шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.053 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.093 inch

28шт.

78

1302103C3

BAR

- rotor rear tooth

3шт.

79

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

21шт.

80

9413979

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8 inch, Grade 8

21шт.

81

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch

21шт.

85

182845C4

SHIELD

- sensor

1шт.

86

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

3шт.
