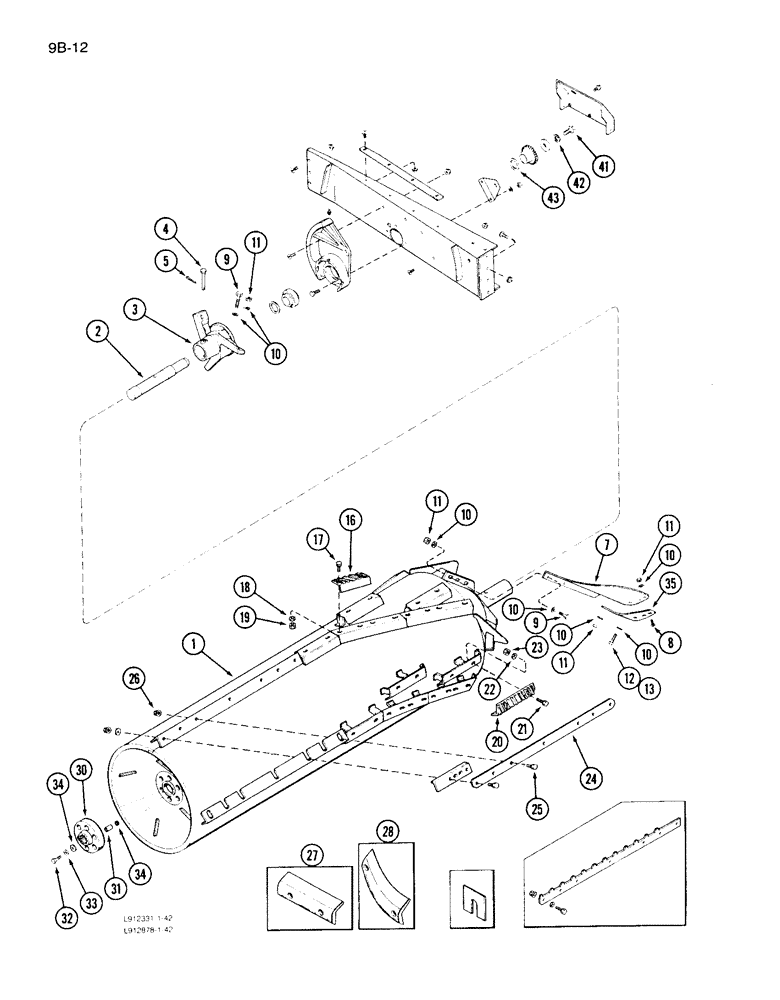

Запчасти Case IH 1640 (9B-12) - ROTOR, GRAIN AND CORN (14) - ROTOR, CONCANVES & SIEVE

1

1989341C1

ROTOR

ASSEMBLY - threshing, corn, Includes: Ref. 2 - 35

1шт.

1

1302214C96

ROTOR

ASSEMBLY - threshing, grain and corn, Includes: Ref. 2 - 35

1шт.

2

191545C2

SHAFT

- rotor front

1шт.

3

191546C2

IMPELLER

- rotor front

1шт.

4

22109R1

HEADED PIN

PIN - clevis, 3/4 x 4-1/2 inch

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

1957446C1

BLADE

KIT - rotor (Set of 3), Includes: Ref. 7

1шт.

7

NSS

NOT SOLD SEPARAT

BLADE - rotor (Order 1957446C1)

3шт.

8

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT - hex socket flat head, 1/2 NC x 1-1/2 inch

9шт.

9

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

9шт.

10

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch

39шт.

11

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

24шт.

12

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

3шт.

13

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, Grade 8

3шт.

16

1308829C2

BAR

- helical rasp support

12шт.

16

1324583C1

BAR

- helical rasp support (Chrome)

12шт.

17

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

24шт.

18

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch

24шт.

19

9413979

LOCK NUT,3/8"-16, GC

NUT - hex, 3/8 inch NC

24шт.

20

1308668C1

RASP BAR

BAR NUT - straight rasp

9шт.

20

1324582C1

BAR

- straight rasp, chrome

9шт.

21

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex, 3/8 NC x 1-1/4 inch, Grade 8

18шт.

22

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- hardened

18шт.

23

9413979

LOCK NUT,3/8"-16, GC

NUT - hex, 3/8 inch NC

18шт.

24

1303038C2

BAR

- rotor, rear straight

3шт.

24

1302103C3

BAR

- rotor, rear straight toothed

3шт.

24

1324580C1

BAR

- rotor, rear straight, chrome

3шт.

25

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

21шт.

26

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

21шт.

27

1994890C1

RASP BAR

BAR - rotor, straight

9шт.

28

1994891C1

BAR

- rotor, helical

12шт.

30

1345307C1

COUPLING

ASSEMBLY - rotor drive (Replaces 185166C91)

1шт.

31

180703C1

PACKAGE,SERVICE

BUSHING KIT - rotor drive hub (Set of 6)

1шт.

31

1345453C1

RUBBER INSULATOR

Rotor Hub Drive

6шт.

32

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, Grade 8

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

34

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

- hardened

12шт.

35

183253C2

BAR

- wear

3шт.

35

1309185C1

SUPPORT

BAR - wear (Chrome)

3шт.

41

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

1шт.

42

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

43

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.
