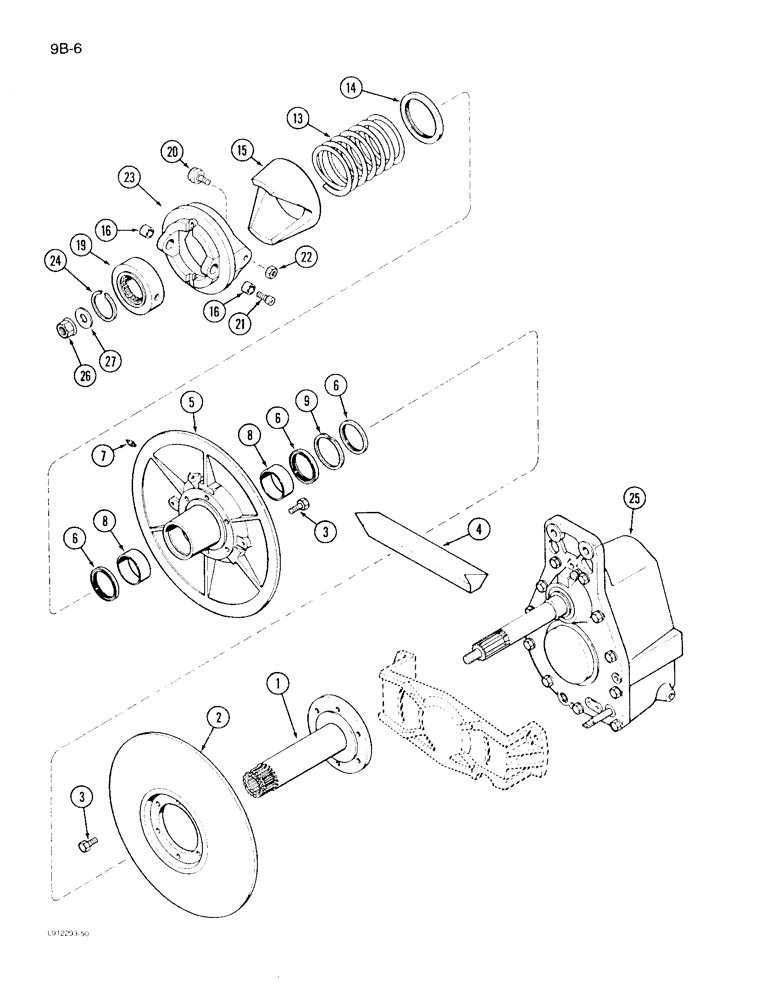

Запчасти Case IH 1640 (9B-06) - ROTOR DRIVE (CONTD) (14) - ROTOR, CONCANVES & SIEVE

1

1315291C2

HUB

- fixed variable pulley (Welded)

1шт.

1

184489C1

HUB

- fixed variable pulley (Machined forged)

1шт.

2

1315292C1

PULLEY

- fixed variable

1шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

6шт.

3

26318R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, Grade 8

6шт.

4

193923C4

V-BELT,2134.68 mm L

Rotor variable drive 2134.68 mm L

1шт.

5

1315294C3

PULLEY

ASSEMBLY - adjustable variable, Includes: Ref. 6 - 9

1шт.

6

193965C91

SEAL

- pulley

3шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT

1шт.

8

NSS

NOT SOLD SEPARAT

BUSHING - pulley (Order 188839C92, set of 2)

2шт.

9

537602R1

RING

- pulley retaining

1шт.

13

193936C2

SPRING

- rotor drive torque sensing, 7-13/16 inch free length

1шт.

13

184486C1

SPRING

- rotor drive torque sensing, 9-1/32 inch free length

1шт.

Ref 18 will sub to C2 upon depletion. Service Bulletin NHE SB 063 99 states this "new version spring will be painted blue for indentification" this service bulletin is incorrect. Per Terry Radewan and this correction these springs will not be painted blue. There is a correction is filed with service bulletins in hard copy catalogs. CDS 1/27/00

1шт.

14

1315521C1

THRUST BEARING

BEARING - rotor drive thrust

1шт.

15

1315299C1

CAMSHAFT

CAM - rotor drive torque sensing (Replaces 1315634C2), Includes: Ref. 16

1шт.

16

193941C1

BUSHING,22.23mm ID x 25.41mm OD x 15.88mm L

- yoke pivot

2шт.

19

1315297C2

HUB,20T

YOKE - torque sensing cam follower

1шт.

20

1315343C1

BEARING,38.1 mm OD x 22.22 mm

- cam follower

2шт.

21

194167C1

SCREW,5/8 - 11" x 1"

BOLT - cam follower yoke pivot

2шт.

22

425-1110

NUT,5/8"-18, G5

2шт.

23

1315344C2

HUB

- cam follower

1шт.

24

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

- hub cam follower retaining

1шт.

25

REF

INSTRUCTION

HOUSING ASSEMBLY - rotor drive (See Figure 9B-10)

1шт.

26

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

- hardened

1шт.

27

1315288C1

FLANGE NUT

- special lock

1шт.
