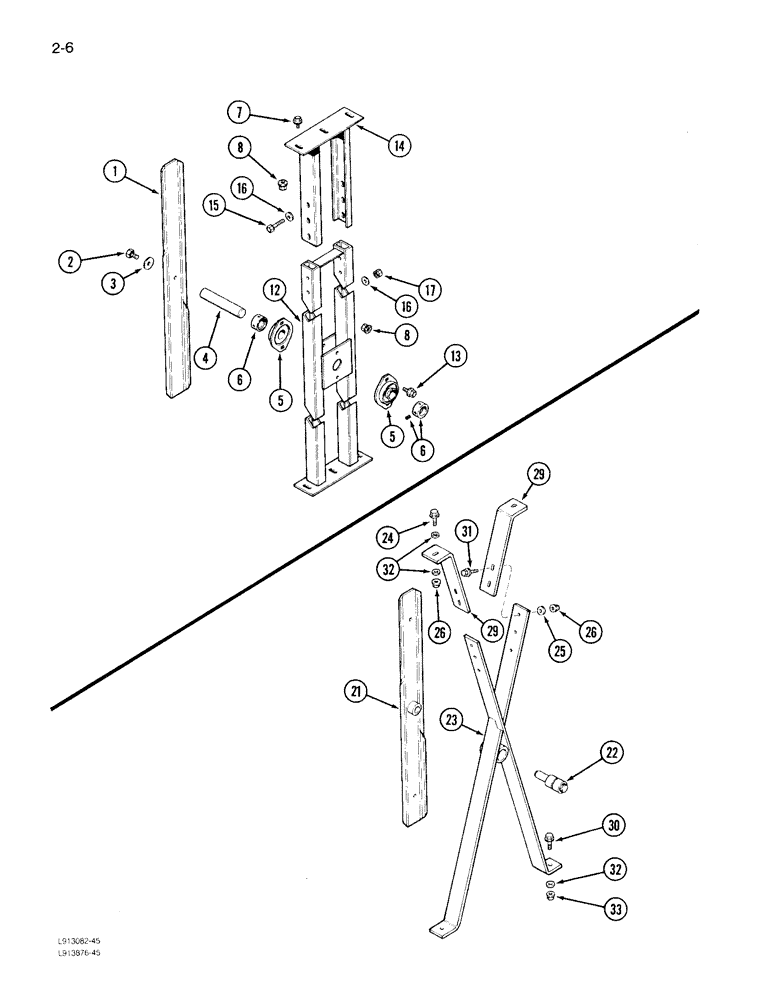

Запчасти Case IH 1640 (2-06) - RADIATOR CLEANING FAN, STATIONARY SUPPORT (01) - ENGINE

1

1977147C2

PADDLE

BLADE - cleaning

1шт.

Stationary Support

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

Stationary Support

1шт.

3

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 7/64 inch

1шт.

Stationary Support

1шт.

4

1970553C1

SHAFT

- cleaning fan

1шт.

Stationary Support

1шт.

5

214490C91

BALL BEARING,25.4mm ID

BEARING - fan shaft

2шт.

Stationary Support

1шт.

6

455102R21

COLLAR

- locking, bearing, with set screw

2шт.

Stationary Support

1шт.

7

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

4шт.

Stationary Support

1шт.

8

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

10шт.

Stationary Support

1шт.

12

1979104C1

SUPPORT

- fan, lower

1шт.

Stationary Support

1шт.

13

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

6шт.

Stationary Support

1шт.

14

1979106C1

SUPPORT

- fan, upper

1шт.

Stationary Support

1шт.

15

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

Stationary Support

1шт.

16

495-81253

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

- flat, 11/32 x 7/8 x 1/16 inch

8шт.

Stationary Support

1шт.

17

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

Stationary Support

1шт.

21

1345399C1

FAN

BLADE ASSEMBLY - cleaning

1шт.

Adjustable Support

1шт.

22

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

- blade

1шт.

Adjustable Support

1шт.

23

1345404C1

SUPPORT

- wiper blade

1шт.

Adjustable Support

1шт.

24

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

Adjustable Support

1шт.

25

495-81253

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

- flat, 11/32 x 7/8 x 1/16 inch

4шт.

Adjustable Support

1шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex flange, self-locking, 5/16 inch NC

2шт.

Adjustable Support

1шт.

29

1345403C1

SUPPORT

- wiper blade, adjustable

2шт.

Adjustable Support

1шт.

30

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

Adjustable Support

1шт.

31

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

- hex serrated flange, 5/16 NC x 1-1/4 inch

4шт.

Adjustable Support

1шт.

32

495-81253

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

- flat, 11/32 x 7/8 x 1/16 inch

8шт.

Adjustable Support

1шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex flange, self-locking, 5/16 inch NC

6шт.

Adjustable Support

1шт.
