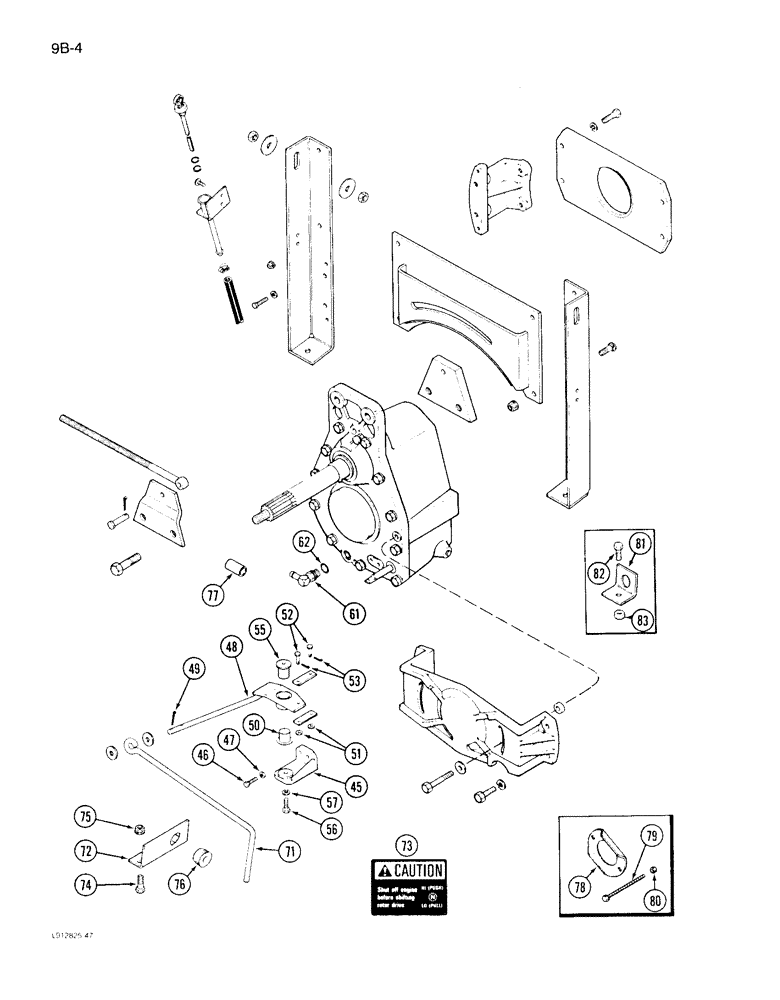

Запчасти Case IH 1640 (9B-04) - ROTOR DRIVE (CONTD) (14) - ROTOR, CONCANVES & SIEVE

45

1979167C1

SUPPORT ASSY.

SUPPORT - gear housing pivot

1шт.

46

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

46

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

47

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

48

1979164C1

LEVER

- rotor drive shift

1шт.

49

432-1216

COTTER PIN,3/16" x 1"

2шт.

50

1979265C1

BUSHING

- shift lever

1шт.

51

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

51

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 1/16 inch

2шт.

52

439-5521

HEADED PIN,5/16" x 1 5/16"

PIN - headed, 5/16 x 1-5/16 inch

2шт.

52

21886R1

HEADED PIN,1/4" x 1"

PIN - headed, 1/4 x 1 inch

2шт.

53

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

53

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

55

188170C1

NUT

NUT - shift lever

1шт.

56

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

57

492-11038

LOCK WASHER,3/8"

1шт.

61

188272C1

ELBOW

- gear housing

1шт.

62

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

71

186648C2

ROD

- lever shaft control linkage

1шт.

72

188816C91

ANGLE

- support, rod lever control link, Includes: Decal

1шт.

188815C1

DECAL

- caution

1шт.

74

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

75

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

2шт.

76

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- control rod

1шт.

77

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SEAL - oil hose cover

1шт.

78

1315304C2

PLATE

- spring removal

1шт.

79

1319996C2

ROD

BOLT - spring plate

2шт.

80

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, Grade 8

2шт.

81

1979564C1

SUPPORT

- shift lever

1шт.

82

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

83

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self-locking, 1/2 inch NC

2шт.
