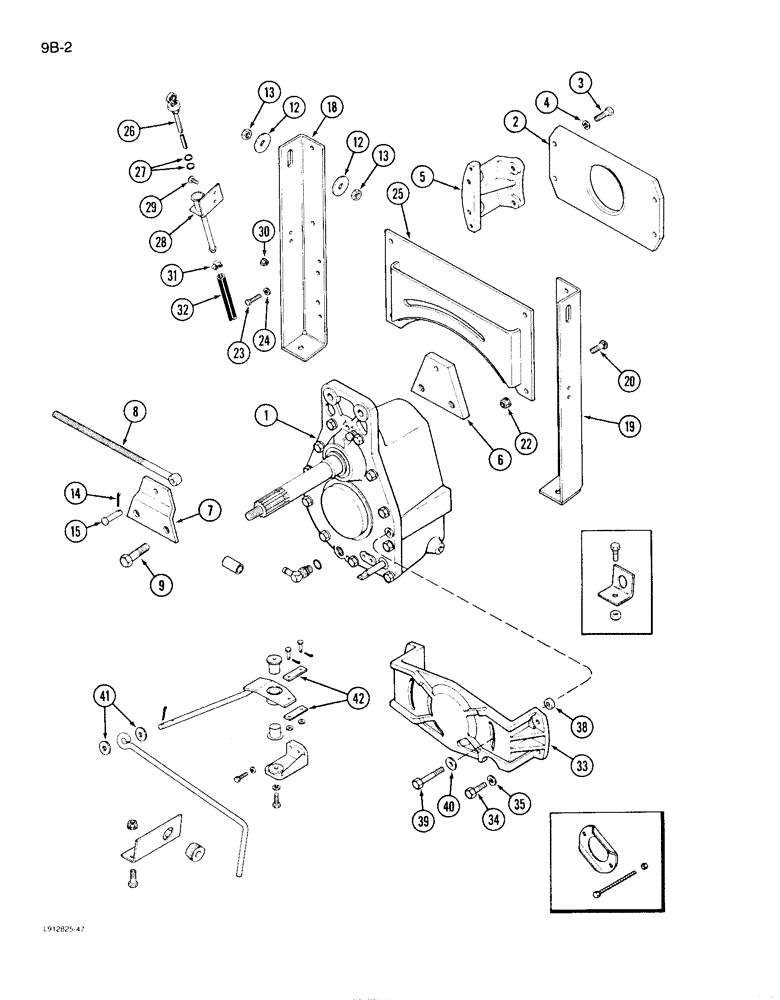

Запчасти Case IH 1640 (9B-02) - ROTOR DRIVE (14) - ROTOR, CONCANVES & SIEVE

1

REF

INSTRUCTION

HOUSING ASSEMBLY - rotor drive (See Figure 9B-10)

1шт.

2

181315C1

PLATE

- gear housing support, front

1шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

181314C2

BLOCK

- housing support, front

2шт.

6

188141C1

SUPPORT

- gear housing anchor

1шт.

7

188142C1

SUPPORT

- gear housing anchor

1шт.

8

188143C1

EYEBOLT

- gear housing

1шт.

9

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

12

495-81030

WASHER,21/32" x 2" x .179"

- flat, 21/32 x 2 x 11/64 inch

2шт.

13

425-1010

NUT,5/8"-11, G5

2шт.

14

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

15

21573R1

HEADED PIN,1/2" x 2"

PIN - clevis, 1/2 x 2 inch

1шт.

18

194055C2

SUPPORT

- gear housing, left

1шт.

19

194056C2

SUPPORT

- gear housing, right

1шт.

20

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

6шт.

22

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

6шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

25

1338395C1

SUPPORT ASSY.

SUPPORT - gear housing (Replaces 188137C1)

1шт.

26

194066C91

DIPSTICK

GAUGE ASSEMBLY - rotor gear housing

1шт.

27

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

28

193946C1

TUBE,12.7 mm OD

- gear housing gauge

1шт.

29

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 x 3/4 inch

2шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

31

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

retaining #4, 0.25/0.62 Type F Worm

2шт.

32

NSS

NOT SOLD SEPARAT

HOSE - gear housing (Order 180718C1, Serial Range: cut-length)

1шт.

33

194058C1

SUPPORT

- gear housing, rear

1шт.

34

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

35

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

38

194077C1

SPACER

- gear housing

2шт.

39

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

40

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

- flat, 17/32 x 1-1/2 x 3/16 inch

2шт.

41

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch

2шт.

42

188169C1

BAR

- shift lever

2шт.
