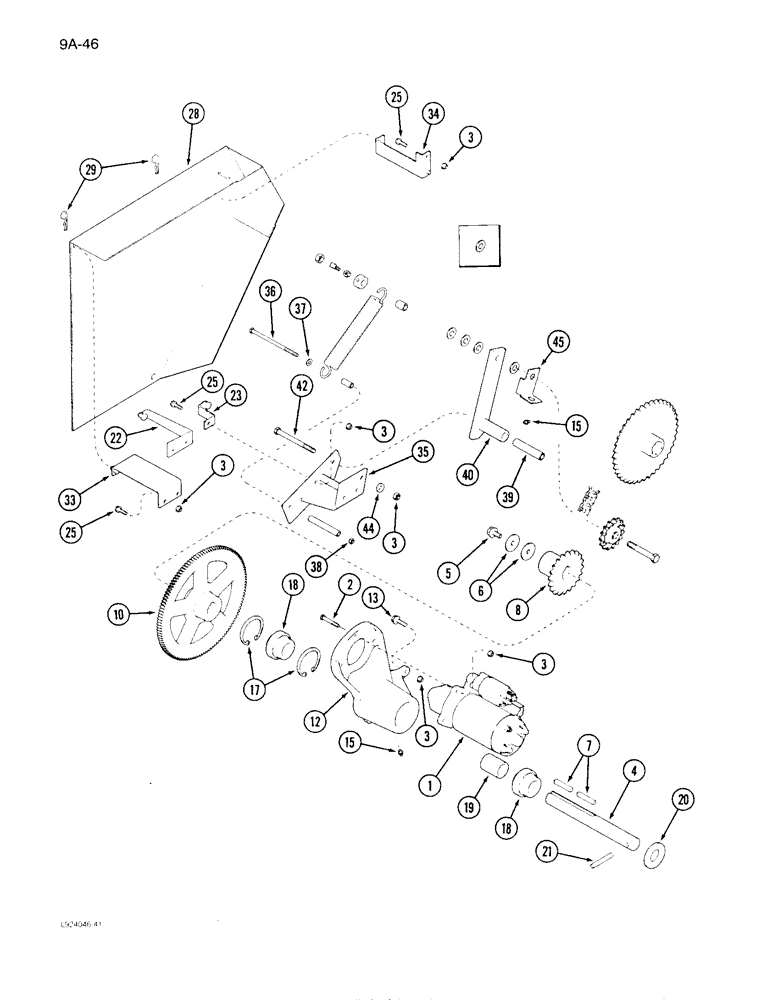

Запчасти Case IH 1640 (9A-46) - FEEDER REVERSER, WITHOUT ROCK TRAP (13) - FEEDER

1

REF

INSTRUCTION

MOTOR ASSEMBLY - reverser, feeder (See Figure 4-52)

1шт.

2

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

3шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

4

1321534C1

SHAFT

- reverser

1шт.

5

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

1шт.

6

495-91167

WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk

- flat, 17/32 x 2 x 7/64 inch

2шт.

7

Q51

KEY,3/8" Sq x 2 1/2", Par

2шт.

8

1329717C1

SPROCKET

- drive

1шт.

10

1321537C91

FLYWHEEL

ASSEMBLY - motor, reverser

1шт.

12

1321539C1

HOUSING

- shaft, reverser

1шт.

13

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

- hex flange, 3/8 NC x 1-1/2 inch

2шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tapping

2шт.

17

659676R1

SNAP RING,3.156", Int, #315

Ring, Snap, 3.156", Int, #315

2шт.

18

597537R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING ASSEMBLY - ball

2шт.

19

1321523C1

SPACER

- bearing

1шт.

20

896-16036

WASHER,39mm ID x 78mm OD x 7mm Thk

- flat, 39 x 78 x 7 mm, hardened

1шт.

21

28340R1

PIN,1/2" x 3", Coiled

1шт.

22

1321780C2

SUPPORT

- reverser shield ( replaced 1321782C2 )

2шт.

23

1979317C1

SUPPORT ASSY.

SUPPORT - reverser shield, 69 mm long ( replaced 1979319C1 )

1шт.

23

1979319C1

SUPPORT ASSY.

SUPPORT - reverser shield, 109 mm long

1шт.

25

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

11шт.

28

1321516C2

GUARD

SHIELD - reverser, feeder

1шт.

29

480523R1

HAIR PIN COTTER

3шт.

33

1329840C1

BRACKET

- support, rear

1шт.

34

1329838C2

BRACKET

- support, front

1шт.

35

1979299C2

SUPPORT

- idler bar

1шт.

36

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

326-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 8

1шт.

25253R1

BOLT,Hex, 3/8" - 16 x 7", Gr 8

- hex, 3/8 NC x 7 inch, Grade 8

1шт.

37

25710R1

WASHER

- flat

1шт.

38

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

39

1979303C1

SPACER

- tube, 7/8 x 4 inch

1шт.

40

1979305C1

ARM

SUPPORT - idler

1шт.

42

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

1шт.

44

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

- flat, 13/32 x 2-1/2 x 5/32 inch

1шт.

45

1979322C1

SUPPORT ASSY.

SUPPORT - shaft speed monitor

1шт.
