Запчасти Case IH 1640 (9A-42) - ROCK TRAP (CONTD) (13) - FEEDER

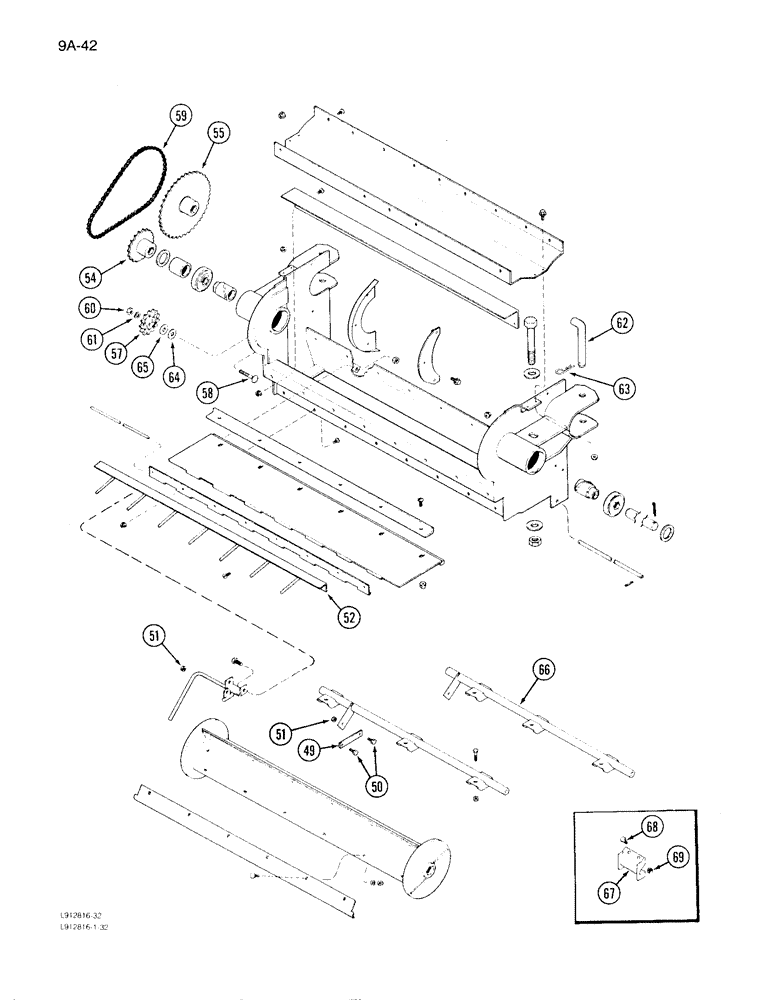

Схема запчастей Case IH 1640 - (9A-42) - ROCK TRAP (CONTD) (13) - FEEDER
50
64
54
60
69
51
55
66
51
52
61
62
63
67
68
65
57
59
49
58

Артикул

Название

Примечание

Количество

49

1320128C1

LINK

- connecting

2шт.

50

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

51

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

4шт.

52

1320846C1

SUPPORT ASSY.

ANGLE - support

1шт.

54

1329719C2

SPROCKET

- drive (20 tooth)

1шт.

54

1320095C3

DRIVE SPROCKET

SPROCKET - drive (16 tooth)

2шт.

55

1320110C3

SPROCKET

- drive (32 tooth)

1шт.

57

629972R91

DRIVE SPROCKET,15T

SPROCKET - tightener (15 tooth)

1шт.

58

598820R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

BOLT - round head square neck, 5/8 NC x 2-1/2 inch

1шт.

59

REF

INSTRUCTION

CHAIN ASSEMBLY - sprocket

2шт.

For service use 123 links of No. 60H chain 2-1317D connecting link and 1-1316D roller link.

1шт.

59

REF

INSTRUCTION

CHAIN ASSEMBLY - sprocket, chrome

1шт.

For service use 124 links of 1979285C1 chrome roller chain and 2-1329768C1 connecting link.

1шт.

60

425-1010

NUT,5/8"-11, G5

1шт.

61

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

62

192533C2

ROD

PIN - pivot

1шт.

63

520175R1

CLIP

PIN - cotter, hair

1шт.

64

N11720

WASHER

- square hole, 21/32 x 1-1/2 x 3/32 inch

1шт.

65

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

3шт.

66

1957362C1

SUPPORT

TUBE - latch stop support

1шт.

67

1957278C1

LATCH

SUPPORT KIT - rock trap latch

1шт.

68

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

69

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8

2шт.

Выбрано товаров: 23
