Запчасти Case IH 1640 (2-04) - COOLANT RECOVERY SYSTEM (01) - ENGINE

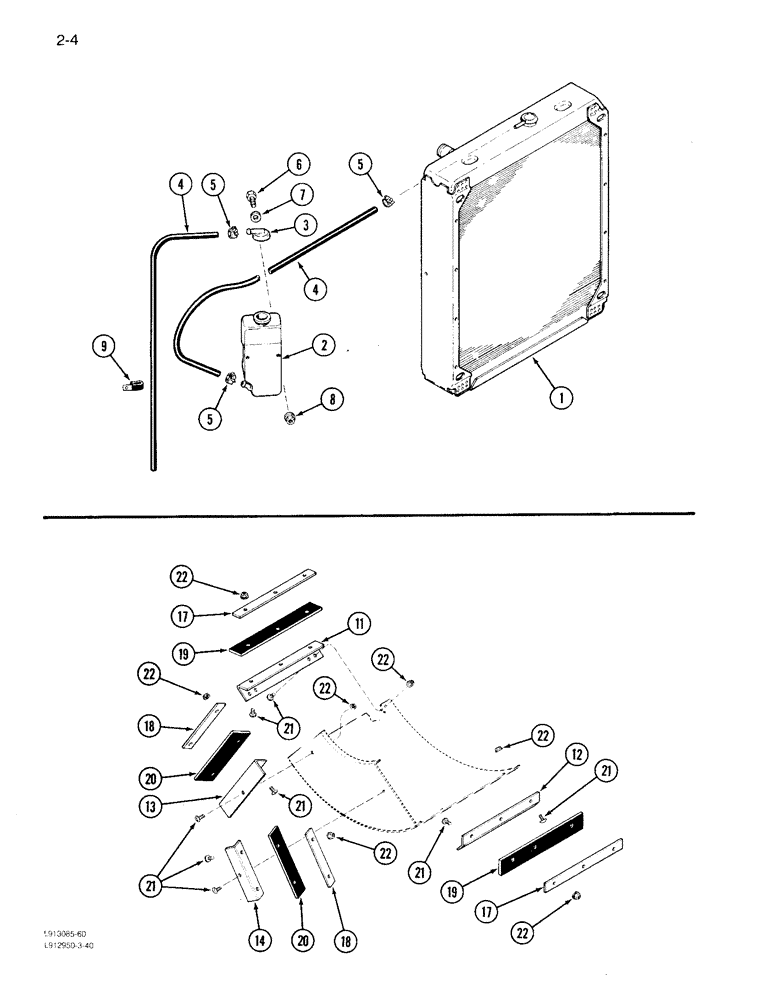

Схема запчастей Case IH 1640 - (2-04) - COOLANT RECOVERY SYSTEM (01) - ENGINE
14
9
21
5
13
20
21
7
22
18
5
19
5
8
18
2
22
21
19
17
11
22
4
22
17
22
22
22
1
6
12
4
21
21
3
20

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

RADIATOR ASSEMBLY - cooling system (See Figure 2-02)

1шт.

2

437703C2

TANK

CONTAINER - coolant recovery reservoir

1шт.

3

437702C1

CAP

- reservoir tank

1шт.

4

1347455C1

LARGE HOSE,8.30 mm ID x 1175.00 mm, SAE J30

HEATER HOSE - Reservoir to radiator overflow 8.30 mm ID x 1175.00 mm, SAE J30

2шт.

5

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

retaining #4, 0.25/0.62 Type F Worm

3шт.

6

187797C1

BOLT,Hex Serr Flg, 1/4" - 20 x 1"

- hex flange, 1/4 NC x 1 inch

3шт.

7

495-81109

WASHER,.281" x 1" x .048"

- flat, 9/32 x 1 x 3/64 inch

3шт.

8

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

6шт.

9

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - hose retaining

1шт.

11

1977159C1

SUPPORT

- baffle, radiator, seal left

1шт.

12

1977160C1

SUPPORT

- baffle, radiator, seal right

1шт.

13

1977161C1

SUPPORT

- baffle, radiator, seal left rear

1шт.

14

1977162C1

SUPPORT

- baffle, radiator, seal right rear

1шт.

17

1977163C1

LARGE PLATE

STRIP - seal, baffle side, radiator support

2шт.

18

1977164C1

SEALING STRIP

- seal, baffle rear, radiator support

2шт.

19

1977165C1

SEAL

- side, baffle

2шт.

20

1977166C1

SEAL

- rear, baffle

2шт.

21

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

SCREW - slotted truss head, 1/4 NC x 1/2 inch

12шт.

22

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex flange lock, 1/4 inch NC

12шт.

Выбрано товаров: 19
