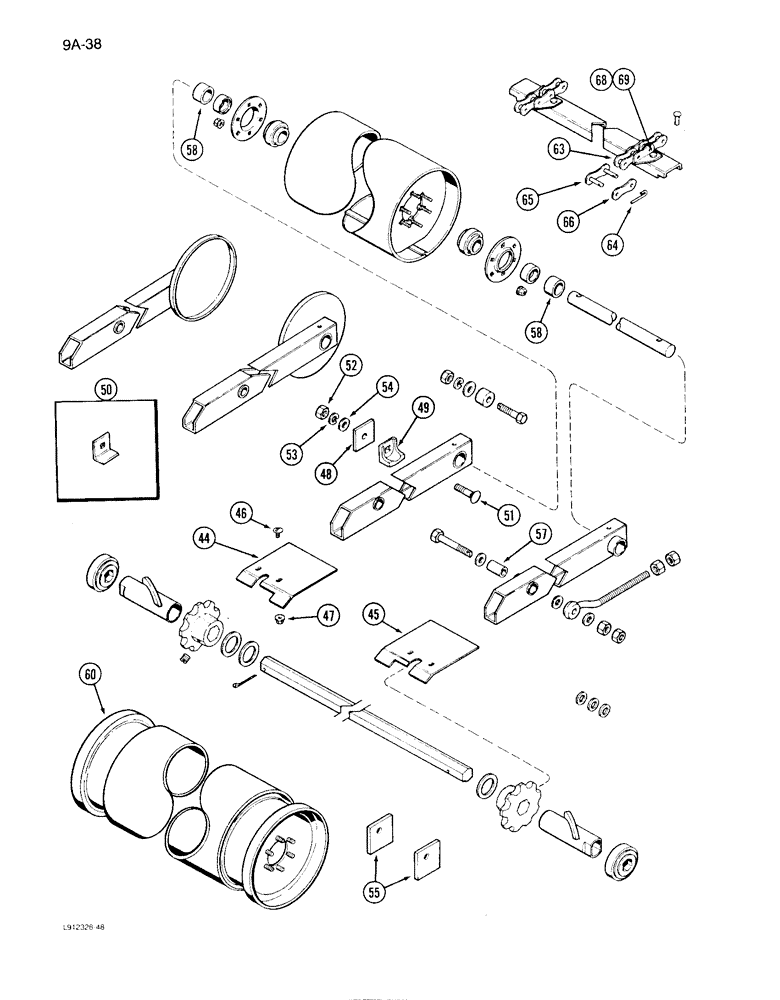

Запчасти Case IH 1640 (9A-38) - FEEDER CONVEYOR (CONTD) (13) - FEEDER

1300464C91

PACKAGE

KIT - stripper, Includes: Ref. 45 - 47

1шт.

Stripper plate in kit have a welded wear bar.

1шт.

44

185818C1

STRIPPER ASSY.

STRIPPER - pivot, left

1шт.

45

185819C1

STRIPPER ASSY.

STRIPPER - pivot, right

1шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

4шт.

47

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

48

187347C1

PLATE

BAR - stop, upper

2шт.

49

1345418C1

ANGLE

- stop, upper (Check part carefully before ordering)

2шт.

50

187364C2

ANGLE

- stop, upper (Check part carefully before ordering)

2шт.

51

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - round head square neck, 5/8 NC x 2-1/4 inch

2шт.

52

425-1010

NUT,5/8"-11, G5

2шт.

53

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

54

498-81008

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

- square hole, 21/32 x 1-1/4 x 1/16 inch

2шт.

55

187225C1

BAR

- stop, upper (With stone retarder)

2шт.

57

187217C1

SPACER,7/8" Tube x 1 13/16"

- pivot, 7/8 x 1-13/16 inch

2шт.

58

11449P

SPACER,1 1/4" Pipe x 1/2"

- bearing, 1-1/4 x 1/2 inch

2шт.

60

1957439C1

DRUM

- conveyor (With stone retarder)

1шт.

63

1324281C1

LINK,A557, Links x 41.4mm = mm

LINK ATTACHING - conveyor (A557 chain), Includes: Ref. 64

1шт.

64

23442R1

PIN,2.36mm OD

- roller S Type

1шт.

64

1329837C2

PIN,2.63mm OD

- roller, S Type (A557 chain)

1шт.

65

1324835C1

OFFSET LINK

LINK - offset, conveyor (A557 chain)

1шт.

66

1324294C1

LINK,40.893mm Pitch

LINK - connecting, conveyor (A557 chain)

1шт.

1300464C91

PACKAGE

KIT - feeder pivot stripper (Not Shown)

1шт.

68

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (A557 chain)

1шт.

69

1306680C1

FLANGE NUT

NUT - hex lock, special (A557 chain)

1шт.
