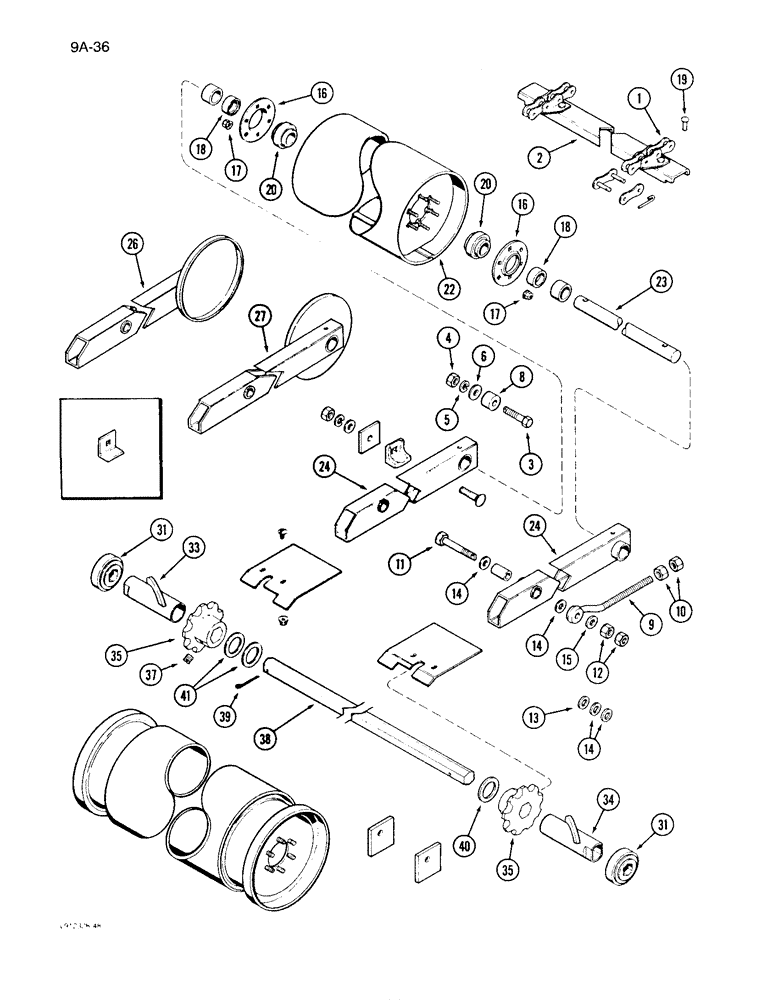

Запчасти Case IH 1640 (9A-36) - FEEDER CONVEYOR (13) - FEEDER

1

1324272C2

CHAIN (CE)

CHAIN ASSEMBLY - conveyor, 54-1/2 inch feeder, 9 serrated slats, A557 chain

1шт.

1

1324266C2

CHAIN (CE)

CHAIN ASSEMBLY - conveyor, 47 inch feeder, 10 smooth slats, A557 chain

1шт.

1

1324274C1

CHAIN (AG),A557, 60 Links x 41.4mm = 2484mm

CHAIN ASSEMBLY - conveyor, corn and grain (47 inch feeder)

1шт.

1

1323678C2

CHAIN (AG)

CHAIN ASSEMBLY - conveyor, corn and grain, 8 serrated slats, A557 chain

1шт.

1

1957593C2

ELEVATOR CHAIN

CHAIN ASSEMBLY - conveyor, 47 inch feeder, 10 serrated slats, A557 chain

1шт.

1

1324269C2

CONVEYOR

CHAIN ASSEMBLY - conveyor, 54-1/2 inch feeder, 12 smooth slats, A557 chain

1шт.

1

1324277C91

CHAIN (AG),A557, 69 Links x 41.4mm = 2856.6mm

CHAIN ASSEMBLY - conveyor, corn and grain (54-1/2 inch feeder)

1шт.

2

1313419C2

KIT

SLAT ASSEMBLY - conveyor, 54-1/2 inch and 47 inch feeder

1шт.

2

1300287C1

CONNECTING STRIP

SLAT ASSEMBLY - conveyor, 54-1/2 inch feeder (Serrated)

1шт.

3

189709C1

BOLT,Hex, 1/2" - 13 x 3"

- clamp, chain

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 11/64 inch

2шт.

8

197211C1

SPACER

- stop, drum

2шт.

9

176508C1

BOLT,5/8" - 11 x 228.60mm

- tightening

2шт.

10

425-1010

NUT,5/8"-11, G5

1шт.

11

187218C1

BOLT

- drum support arm, 4 inch long

2шт.

11

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

12

425-1010

NUT,5/8"-11, G5

4шт.

13

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

14

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

15

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

2шт.

16

1330461C1

FLANGED BEARING

- bearing, drum

2шт.

17

1306680C1

FLANGE NUT

NUT - hex lock, special

6шт.

18

557995R11

COLLAR

ASSEMBLY - locking, bearing

2шт.

19

104279

RIVET,FH, 3/8" x 3/4"

32шт.

20

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

- drum, conveyor

2шт.

22

1957437C1

DRUM

- conveyor (Without stone retarder)

1шт.

23

187207C2

SHAFT,31.75mm OD x 909.3mm L

SHAFT - drum, feeder

1шт.

24

1305103C2

ARM

- drum (Grain and corn)

2шт.

26

1338291C2

ARM

- drum, left (With stone retarder)

1шт.

27

1338292C2

ARM

- drum, right (With stone retarder)

1шт.

31

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING ASSEMBLY - shaft

2шт.

33

178780C2

SPACER

- sprocket, left

1шт.

34

178781C2

SPACER

- sprocket, right

1шт.

35

1970248C1

SPROCKET ASSY.

SPROCKET - chain, conveyor (Replaces 197556C1)

2шт.

37

197643C1

SET SCREW

- set, sprocket

4шт.

38

1320160C3

SHAFT

- conveyor

1шт.

39

432-2040

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2шт.

40

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

- flat, 1-25/32 x 2-1/2 x 3/32 inch

1шт.

41

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

- flat, 1-25/32 x 2-1/2 x 3/64 inch

2шт.
