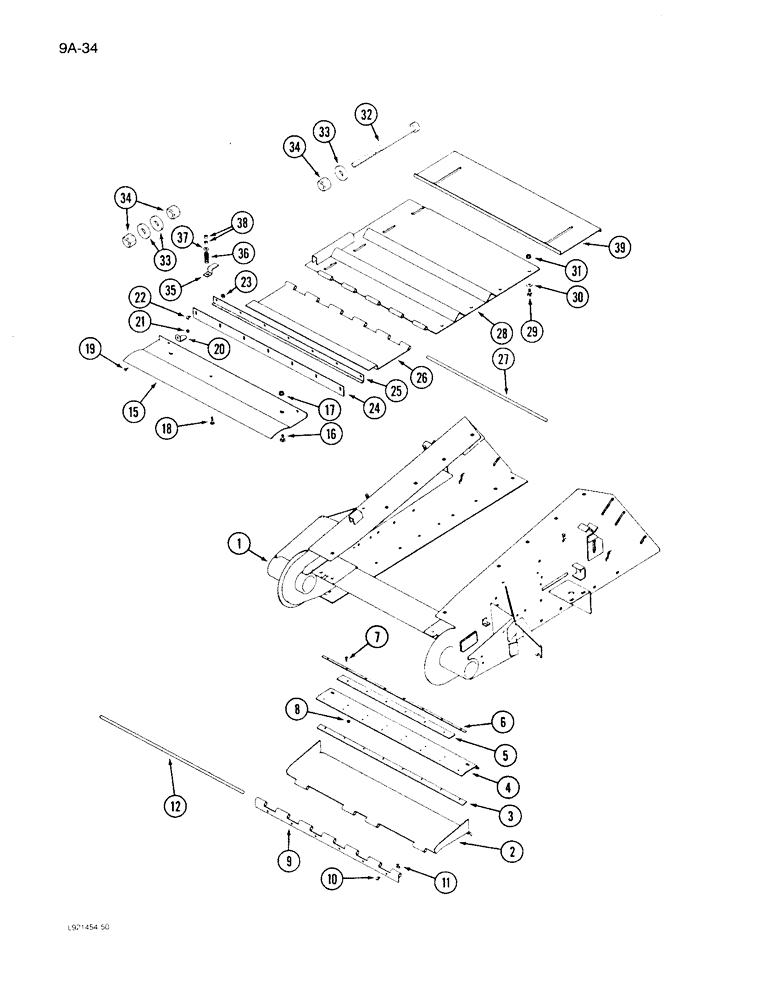

Запчасти Case IH 1640 (9A-34) - FEEDER, COVERS (13) - FEEDER

1

REF

INSTRUCTION

HOUSING - feeder (See Figure 9A-30)

1шт.

2

193362C2

DOOR

- bottom feeder

1шт.

3

1319963C1

SEAL

SEAL - rear, feeder

1шт.

4

1319961C1

SUPPORT

- bottom, feeder rear

1шт.

5

1319965C1

BAR

- spacing, support

1шт.

6

197429C1

SEALING STRIP

- seal, door

1шт.

7

443-11012

SCREW,Cross Flat Hd, #10-24 x 3/4"

- machine, flat head Phillips, No. 10 NC x 3/4 inch

6шт.

8

196922C1

LOCK NUT

- hex lock, No. 10

6шт.

9

193364C2

HINGE

- feed plate

1шт.

10

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

6шт.

11

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

6шт.

12

159012C1

ROD

- hinge, door

1шт.

15

197426C4

COVER

- top, feeder

1шт.

16

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

2шт.

17

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex lock special, 1/2 inch NC

2шт.

18

411-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT - round head square neck, 3/8 NC x 2-1/4 inch

1шт.

19

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

52шт.

20

1322144C1

ANGLE

- stop, door

2шт.

21

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

22

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

7шт.

23

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

7шт.

24

634204R1

SEAL

- feeder, top

1шт.

25

180555C91

DOOR ASSY.

DOOR - top, feeder

1шт.

26

197418C1

SUPPORT

ANGLE - support, seal

1шт.

27

175906C1

ROD

- hinge, door

1шт.

28

1321431C1

PROTECTION PLATE

SHEET - hinge, feeder top (47 inch feeder)

1шт.

28

1321432C2

PROTECTION PLATE

SHEET - hinge, feeder top (54-1/2 inch feeder)

1шт.

29

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

8шт.

30

195-81030

WASHER

- flat, 17/32 x 1-1/2 x 3/16 inch

8шт.

31

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex lock special, 1/2 inch NC

4шт.

32

1321395C1

BOLT,3/4" - 10 x 440mm

- adjusting, level

1шт.

33

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

4шт.

34

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

3шт.

35

184645C1

CLIP

- latch, door

1шт.

36

7422T

SPRING

- latch, door

1шт.

37

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

38

425-106

NUT,3/8"-16, Cl 5

2шт.

39

1321638C1

COVER

- front, top

1шт.
