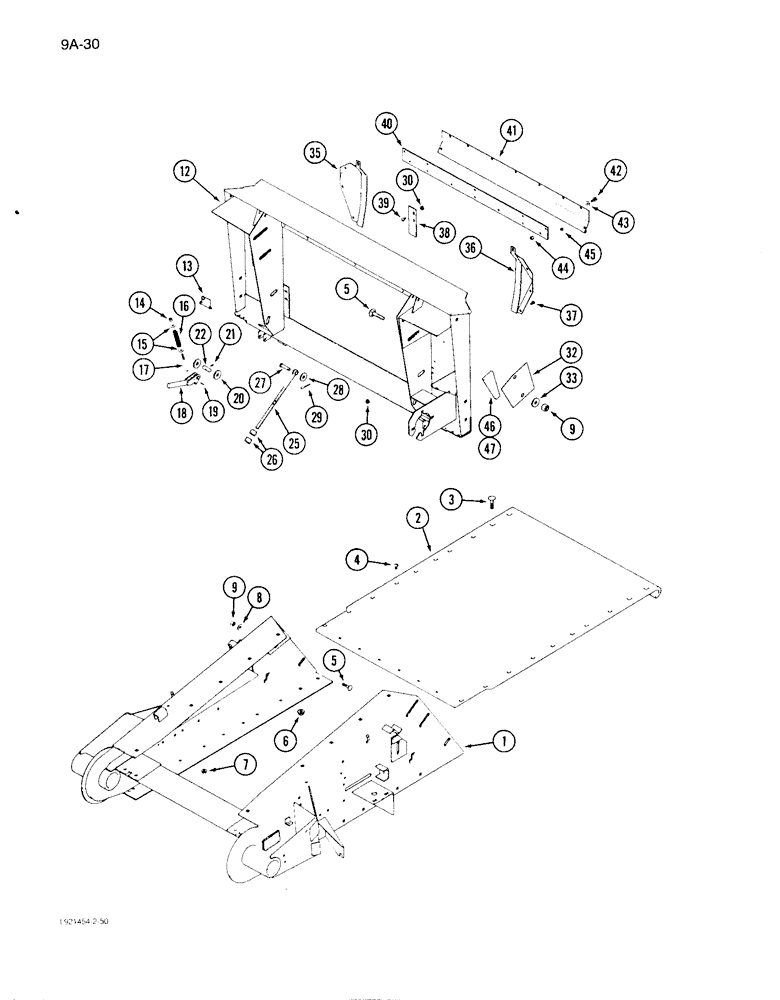

Запчасти Case IH 1640 (9A-30) - FEEDER, HOUSING AND ADAPTER (13) - FEEDER

1

1321457C92

HOUSING ASSY.

HOUSING - feeder (47 inch feeder)

1шт.

1

1321458C92

HOUSING ASSY.

HOUSING - feeder (54-1/2 inch feeder)

1шт.

2

1324576C1

PLATE

SHEET - bottom, feeder (47 inch feeder)

1шт.

2

185820C1

SHEET

- bottom, feeder, perforated (47 inch feeder)

1шт.

2

1324578C1

PLATE

SHEET - bottom, feeder (54-1/2 inch feeder)

1шт.

2

1313970C1

PANEL

SHEET - bottom, feeder, perforated (54-1/2 inch feeder)

1шт.

3

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

12шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

8шт.

5

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - round head square neck, 5/8 NC x 1-3/4 inch

6шт.

6

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex lock special, 1/2 inch NC

8шт.

7

1319840C1

FLANGE NUT,Flg, 3/8"-16, G8

- hex flange, 3/8 inch NC

6шт.

8

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

6шт.

9

20033R1

LOCK NUT

NUT - hex lock, 5/8 inch NC

6шт.

12

1989330C2

SHIELD

ADAPTER - feeder (P.I.N. JJC0097190 and after)

1шт.

12

1321690C4

SHIELD

ADAPTER - feeder (Prior to P.I.N. JJC0097190)

1шт.

13

1338021C1

PIN,7.94mm OD

- lock, latch

2шт.

14

231-1445

NUT,5/16"-18, GB

NUT - hex, 5/16 inch NC

2шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

16

367833R1

SPRING

- rod, latch

2шт.

17

177138C1

ROD

- latch

2шт.

18

179024C1

HINGE

HANDLE - lock, latch

2шт.

19

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

2шт.

20

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

4шт.

21

617057R1

PIN,1/4" x 1", Coiled

2шт.

22

177141C1

PIN,15.88mm OD x 41mm L

- pivot, handle

2шт.

25

1321735C2

BOLT,1/2" - 13 x 310mm, Gr 8

EYEBOLT - adjusting

2шт.

26

329-108

NUT,1/2"-13, G8

4шт.

27

21932R1

HEADED PIN,1/2" x 2"

PIN - headed, 1/2 x 2 inch, Grade 1

2шт.

28

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

29

432-1216

COTTER PIN,3/16" x 1"

2шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

10шт.

32

1327737C2

PLATE

COVER - side, feeder

2шт.

33

95-81018

WASHER,0.66" ID x 2.5" OD x 0.12" Thk

- flat, 21/32 x 2-1/2 x 7/64 inch

2шт.

35

184853C1

DEFLECTOR

- front, left

1шт.

36

184854C1

DEFLECTOR

- front, right

1шт.

37

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

10шт.

38

181646C1

SUPPORT

FILLER - face wear (If equipped)

2шт.

39

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss, 5/16 NC x 1 inch

4шт.

40

1319474C1

BAND

COVER - top, feeder

1шт.

41

1319479C1

COVER

- adapter, feeder

1шт.

42

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

12шт.

43

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

12шт.

44

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

12шт.

45

1321640C1

GROMMET

- cover, adapter

2шт.

46

1327752C1

FOAM INSULATION

- side, feeder, left

1шт.

47

1327753C1

FOAM INSULATION

- side, feeder, right

1шт.
