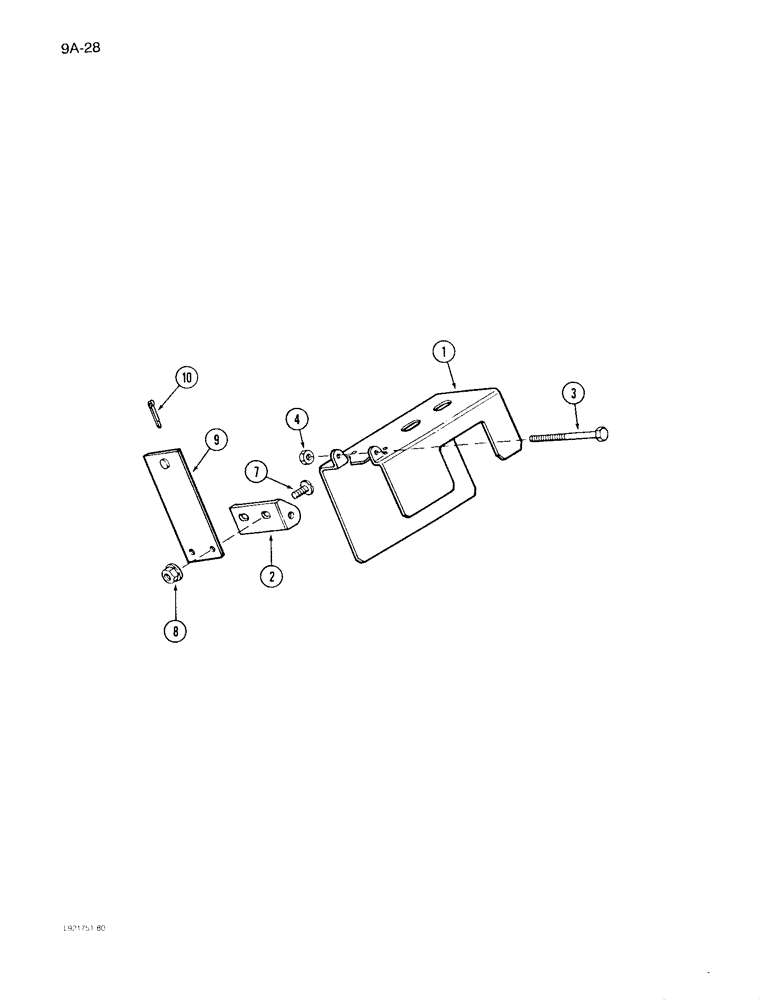

Запчасти Case IH 1640 (9A-28) - FEEDER JACKSHAFT SHIELD, P.I.N. JJC0097191 AND AFTER (13) - FEEDER

1

1345357C1

GUARD

SHIELD - jackshaft end

1шт.

2

1345199C1

SUPPORT

BRACKET - feeder jackshaft shield

1шт.

3

413-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

- hex, 1/4 NC x 4-1/2 inch

1шт.

4

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC, Grade 8

1шт.

7

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

2шт.

8

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

2шт.

9

1957636C1

HOLDER

BRACKET - shield retainer

1шт.

10

480523R1

HAIR PIN COTTER

9/64" dia

1шт.
