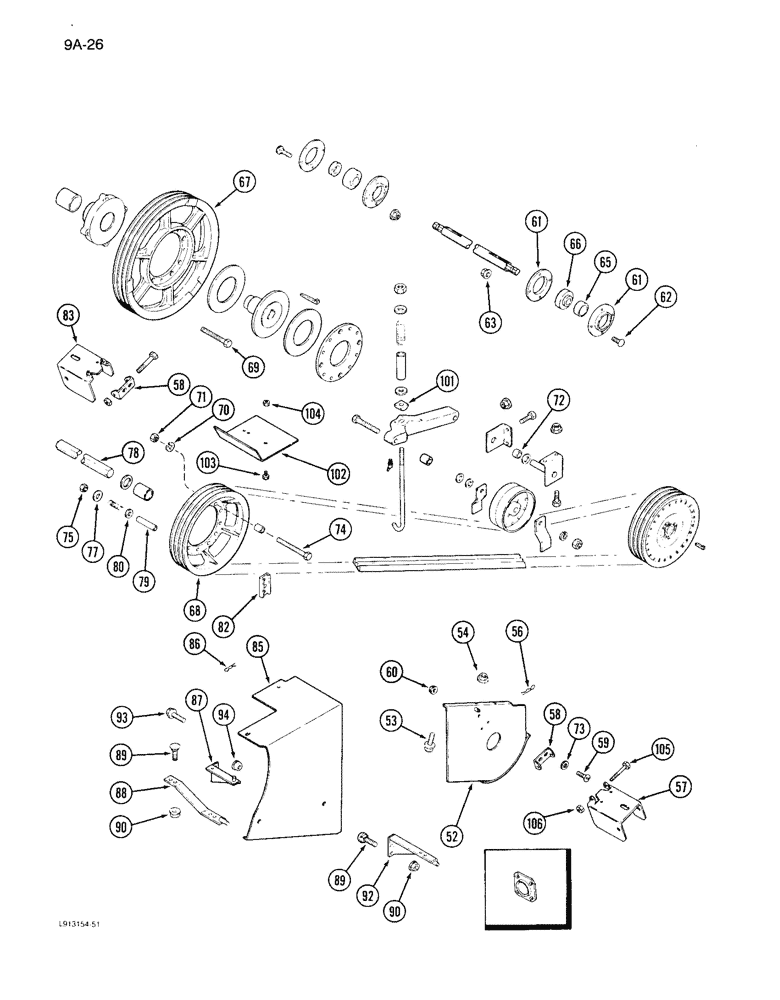

Запчасти Case IH 1640 (9A-26) - FEEDER JACKSHAFT DRIVE (CONTD) (13) - FEEDER

52

1345355C1

GUARD ASSY.

SHIELD - support, front (Replaces 1321838C2)

1шт.

53

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

54

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

56

480523R1

HAIR PIN COTTER

1шт.

57

1345358C1

GUARD

SHIELD - jackshaft end (Replaces 1329952C2)

1шт.

58

1345199C1

SUPPORT

BRACKET - feeder jackshaft shield (Replaces 10810R)

2шт.

59

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

8шт.

60

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

8шт.

61

619333R1

FLANGED BEARING

- bearing, right

2шт.

62

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

4шт.

63

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

65

664598R11

COLLAR

ASSEMBLY - lock, bearing

1шт.

66

664597R91

BALL BEARING,1.5005" ID x 90 mm OD x 1.625"

- jackshaft, right

1шт.

67

REF

INSTRUCTION

PULLEY - driven (See Figure 9A-24)

1шт.

68

1305288C1

PULLEY

- drive, feeder

1шт.

69

326-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

4шт.

70

492-11038

LOCK WASHER,3/8"

4шт.

71

329-106

NUT,3/8"-16, G8

4шт.

72

M74461

SPACER,26.6mm ID x 33.4mm OD x 19mm L

Support pin 1" Pipe x 3/4"

1шт.

73

151670C1

SHIM

- pin spacer

1шт.

74

1315319C1

BOLT,Hex, 3/8" - 16 x 6", Gr 8

- hex, 3/8 x 6 inch

8шт.

75

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

8шт.

77

495-81143

WASHER,13/32" x 1 1/2" x .120"

16шт.

78

REF

INSTRUCTION

SHAFT - feeder (See Page 9A-37)

1шт.

79

1305370C3

SPACER

- spring clutch

8шт.

80

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

9шт.

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

- flat, 1-25/32 x 2-1/2 x 3/32 inch (Not Shown)

1шт.

82

1315316C1

SUPPORT

- spring, slip clutch

2шт.

83

1345357C1

GUARD

SHIELD - jackshaft end (Replaces 1321848C2)

1шт.

85

1321841C1

GUARD

SHIELD - drive, jackshaft (47 inch feeder)

1шт.

85

1321866C1

GUARD

SHIELD - drive, jackshaft (54-1/2 inch feeder)

1шт.

86

480523R1

HAIR PIN COTTER

4шт.

87

1327779C1

SUPPORT

- shield, upper rear

1шт.

88

1321851C1

SUPPORT

- shield, lower rear

1шт.

89

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

3шт.

90

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.

92

1321853C1

SUPPORT

- shield, lower front

1шт.

93

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

94

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

101

194652C1

PIVOT

BAR - pivot

1шт.

102

1330071C1

GUARD

SHIELD - rear upper

1шт.

103

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

- hex, 3/8 NC x 3/4 inch

1шт.

103

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

104

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

104

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

1шт.

105

413-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

- hex, 1/4 NC x 4-1/2 inch

2шт.

106

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC, Grade 8

2шт.
