Запчасти Case IH 1640 (9A-22) - FEEDER DRIVE (CONTD) (13) - FEEDER

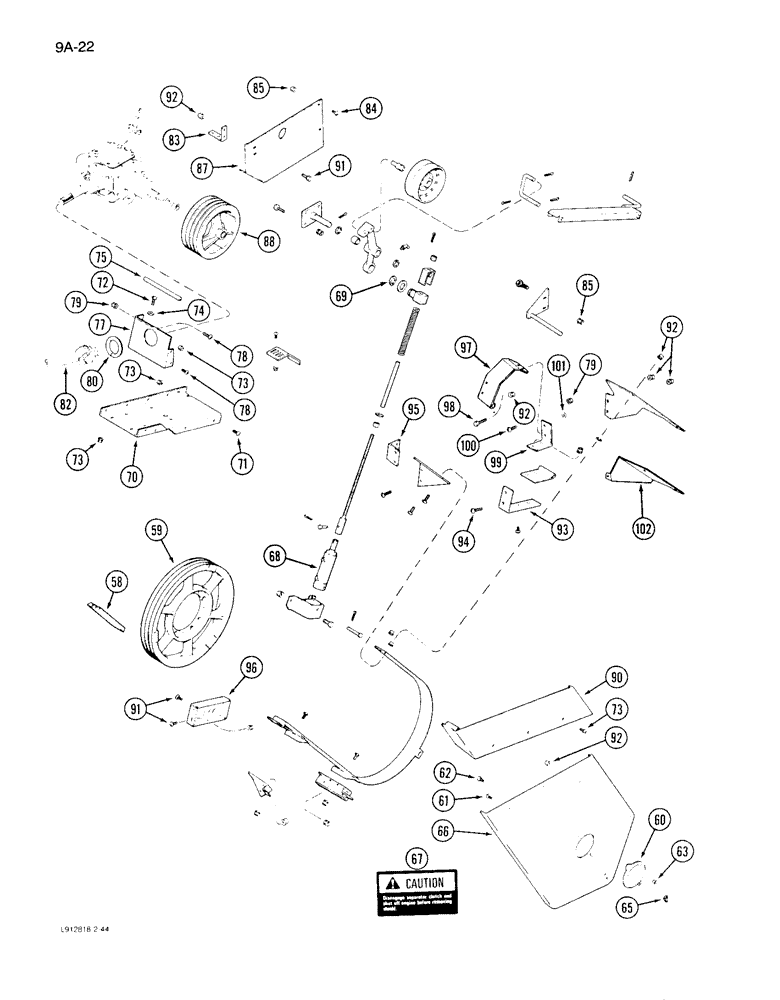

Схема запчастей Case IH 1640 - (9A-22) - FEEDER DRIVE (CONTD) (13) - FEEDER
71
98
77
65
73
99
82
101
68
85
85
91
79
92
94
67
66
63
97
87
62
60
78
80
70
93
84
79
74
96
61
90
92
88
69
75
73
95
83
100
59
73
91
102
72
92
58
78
73
92

Артикул

Название

Примечание

Количество

58

192738C1

BELT,22.225 mm W x 3814.70 mm L, 3, Ribs

V-BELT , Drive, Feeder (Without rock trap) 22.225 mm W x 3814.70 mm L, 3, Ribs

1шт.

58

1315168C1

V-BELT,22.23 mm W x 4228.70 mm L

Drive, Feeder, With Rock Trap 22.23 mm W x 4228.70 mm L

1шт.

59

1305297C1

PULLEY

- driven, feeder

1шт.

60

188315C1

DOOR

- access, belt

1шт.

61

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

1шт.

62

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

63

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

1шт.

65

129-409

WING NUT,1/4"-20

NUT - wing, door

1шт.

66

186189C93

GUARD

SHIELD - belt, Includes: Ref. 67

1шт.

67

188199C1

PRODUCT GRAPHIC

DECAL - caution

1шт.

68

REF

INSTRUCTION

CYLINDER ASSEMBLY - feeder (See Figure 8-58)

1шт.

69

R13338

SNAP RING,#150, Ext

Ring, Snap, , spring rod #150, Ext

1шт.

70

194521C1

SUPPORT

- gear case

1шт.

71

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

4шт.

72

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch

2шт.

73

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock

6шт.

74

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

4шт.

75

191497C1

SEALING STRIP

- support

1шт.

77

191399C1

SUPPORT

- rear

1шт.

78

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

7шт.

79

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

7шт.

80

191496C1

SEALING STRIP

- support

1шт.

82

REF

INSTRUCTION

JOINT ASSEMBLY - drive (See Figure 9A-8)

1шт.

83

186081C1

ANGLE

- upper shield

1шт.

84

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

2шт.

85

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

87

186080C2

SUPPORT

- shield, upper

1шт.

88

191603C2

PULLEY

- drive

1шт.

90

1315085C1

GUARD

SHIELD - extension, belt (With rock trap)

1шт.

91

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

8шт.

92

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange, 3/8 inch NC

12шт.

93

1315078C3

SUPPORT

- extension, pivot (With rock trap)(If equipped)

1шт.

94

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

- slotted truss head, 3/8 NC x 1-1/4 inch

6шт.

95

1315075C1

ANGLE

SUPPORT - angle, extension

1шт.

96

1315083C1

SUPPORT

- extension, lower (With rock trap)

1шт.

97

1989332C2

SUPPORT

- stiffener, upper (With rock trap) (Replaces 1315232C1)

1шт.

98

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

99

1315079C1

SUPPORT

- shield, upper (With rock trap)(If equipped)

1шт.

100

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

2шт.

101

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

- flat, 13/32 x 1-1/4 x 31/64 inch

1шт.

102

1989328C1

COVER

- drive belt, upper

1шт.
