Запчасти Case IH 1640 (9A-20) - FEEDER DRIVE (13) - FEEDER

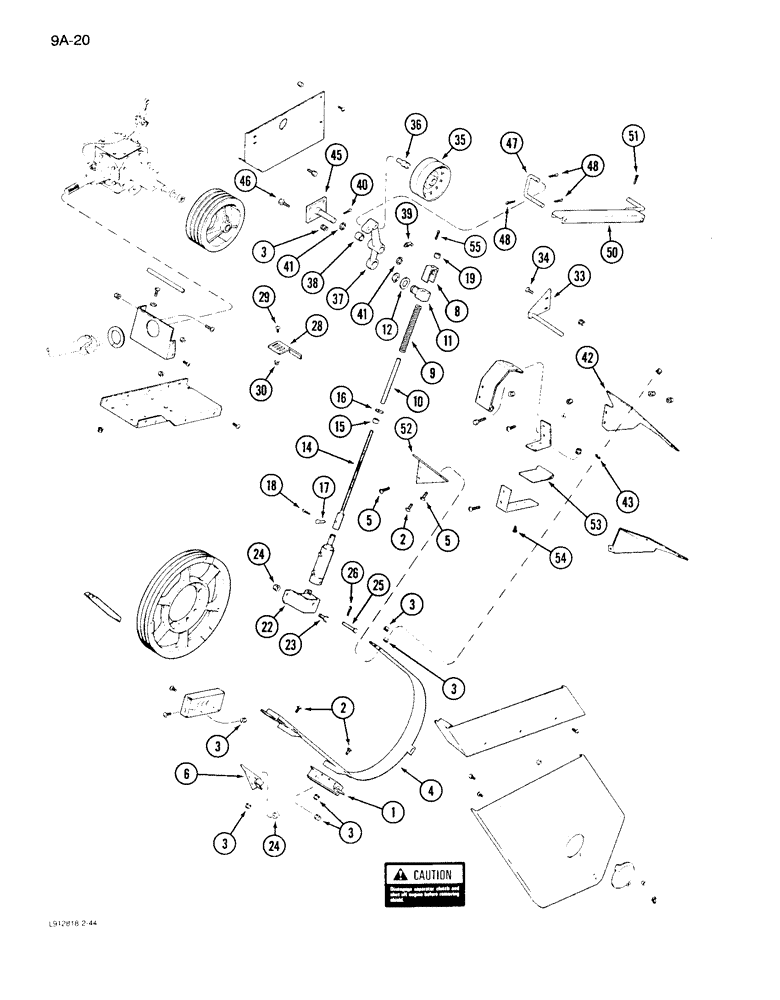

Схема запчастей Case IH 1640 - (9A-20) - FEEDER DRIVE (13) - FEEDER
41
15
3
46
53
5
19
8
36
51
55
16
3
28
3
24
17
8
40
1
45
43
3
5
29
2
10
47
38
14
30
35
37
22
48
24
23
3
50
39
11
4
2
34
48
3
54
42
9
12
33
25
52
26
18
41

Артикул

Название

Примечание

Количество

1

188043C1

SUPPORT ASSY.

SUPPORT - lower, belt guard

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

11шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

19шт.

4

194380C1

GUARD ASSY.

WRAPPER - guard, belt

1шт.

5

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

BOLT - slotted truss head, 3/8 NC x 1-1/4 inch

1шт.

6

188045C2

SUPPORT ASSY.

SUPPORT - rear, belt guard

1шт.

8

194357C2

CHANNEL

CLIP - tightener

1шт.

9

PO23

SPRING

- tightener

1шт.

10

194356C1

TUBE

SPACER - spring rod

1шт.

11

186890C3

ANGLE BAR

PIVOT - spring rod

1шт.

12

495-81225

WASHER,1 17/32" x 2 1/2" x .060"

- flat, 1-17/32 x 2-1/2 x 3/64 inch

1шт.

14

194216C2

ROD

- tightener

1шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

16

495-81163

WASHER,17/32" x 1 1/2" x .120"

- flat, 17/32 x 1-1/2 x 7/64 inch

1шт.

17

23304R1

CLEVIS PIN,3/8" x 1 9/16"

PIN, CLEVIS, 3/8" x 1 9/16"

1шт.

18

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

22

194369C2

SUPPORT

- cylinder

1шт.

23

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

24

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

25

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

1шт.

26

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

28

194383C3

BRACKET

- support, upper

1шт.

29

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 NC x 1 inch

2шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

33

195109C1

ROD ASSY.

ROD - belt trap

1шт.

34

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch

2шт.

35

174757C1

PULLEY

- idler

1шт.

36

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

ASSEMBLY - pulley

1шт.

37

192105C93

LEVER

ASSEMBLY - idler, Includes: Ref. 38

1шт.

38

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

- lever

2шт.

39

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 45 degree lube, 1/8 inch PT

1шт.

40

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

41

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

6шт.

42

1321886C1

COVER

- upper, belt

1шт.

43

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

1шт.

45

185414C2

SUPPORT

- pivot

1шт.

46

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch

4шт.

47

192111C1

ROD

- retainer

1шт.

48

432-1216

COTTER PIN,3/16" x 1"

3шт.

50

194358C1

GUIDE

- retainer, belt (without rock trap)

1шт.

50

1989323C2

SUPPORT

GUIDE - retainer, belt (With rock trap)(Replaces 1315076C1)

1шт.

51

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

52

192131C3

SUPPORT

- upper

1шт.

53

194364C2

HINGE

- pivot

1шт.

54

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

BOLT - slotted truss head, 3/8 NC x 1-1/4 inch

1шт.

55

432-1240

COTTER PIN,3/16" x 2 1/2"

3/16" x 2 1/2"

1шт.

Выбрано товаров: 46
