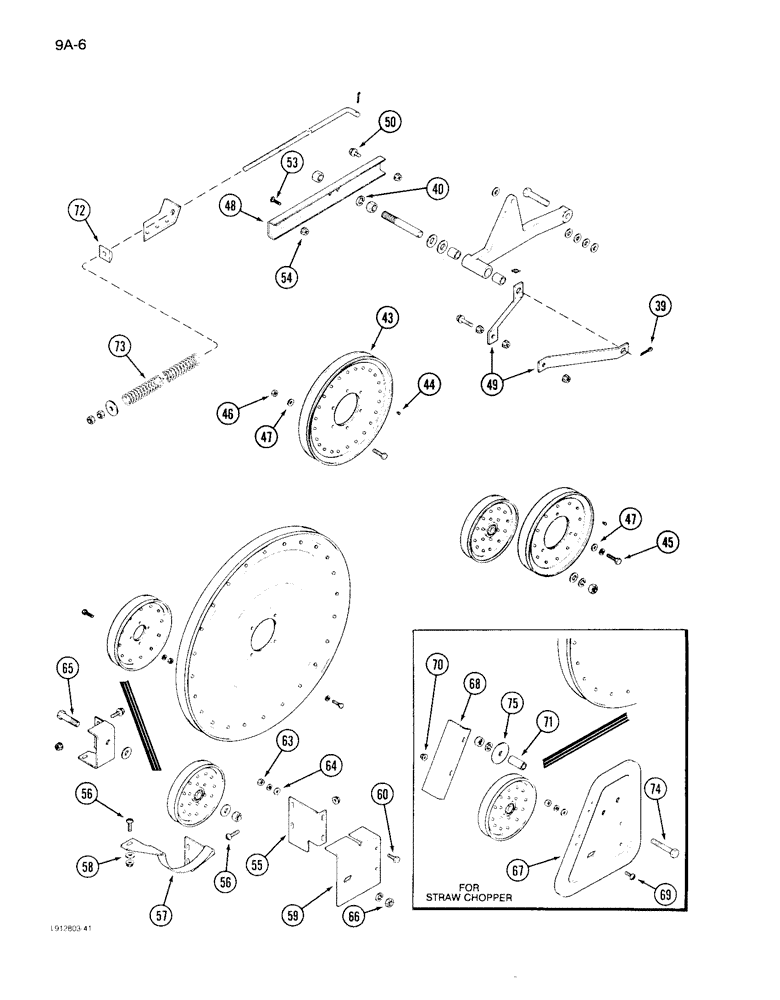

Запчасти Case IH 1640 (9A-06) - BELT DRIVE - RIGHT SIDE (CONTD) (13) - FEEDER

39

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

40

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

43

183325C1

PULLEY

ASSEMBLY - jackshaft driven, 13 inch OD, Includes: Ref. 44

1шт.

44

104235

RIVET,FH, 3/16" x 1/2"

24шт.

45

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

3шт.

46

9413979

LOCK NUT,3/8"-16, GC

NUT - hex prevailing torque lock, 3/8 inch NC

3шт.

47

142619H

WASHER

- flat, 13/32 x 3/4 x 7/64 inch

6шт.

48

186588C2

CHANNEL

- pivot arm support

1шт.

49

182676C2

SUPPORT

- elevator pivot

2шт.

50

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

53

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss, 3/8 NC x 1 inch

1шт.

54

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

1шт.

55

1302352C2

SUPPORT

GUIDE - elevator belt upper

1шт.

56

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

BOLT - slotted truss 3/8 NC x 1-1/4 inch

2шт.

57

1302068C2

GUIDE

- elevator belt lower

1шт.

58

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

- flat, 13/32 x 1 x 11/64 inch

3шт.

59

1302350C1

SHIELD

- elevator fixed idler (Not used on combine with straw chopper)

1шт.

60

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

63

425-106

NUT,3/8"-16, Cl 5

4шт.

64

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

4шт.

65

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

1шт.

65

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

1шт.

66

425-1010

NUT,5/8"-11, G5

1шт.

66

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8 inch NC

1шт.

67

1302353C1

GUARD

SHIELD - elevator fixed idler (For combine with straw chopper)

1шт.

68

1302351C1

DEFLECTOR

- elevator, rear shield (For combine with straw chopper)

1шт.

69

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss, 5/16 NC x 1/2 inch

2шт.

70

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flanged hex lock, 5/16 inch NC

2шт.

71

564737R1

SPACER,7/8" Tube x 2 1/16"

- 21/32 x 7/8 x 2-1/16 inch (For combine with straw chopper)

1шт.

72

194652C1

PIVOT

BAR - pivot arm

1шт.

73

155311C1

SPRING

- arm rod

1шт.

74

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

75

534939R1

WASHER

- flat, 21/32 x 2-1/2 x 7/64 inch

1шт.
