Запчасти Case IH 1640 (9A-02) - BELT DRIVE - FAN JACKSHAFT (13) - FEEDER

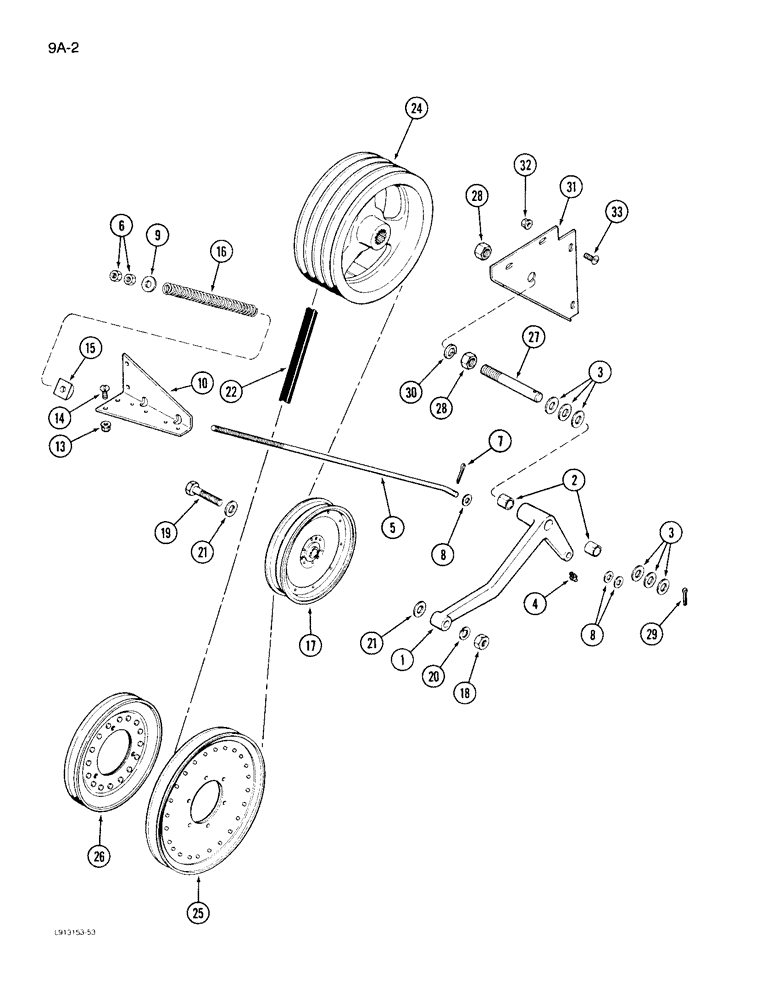

Схема запчастей Case IH 1640 - (9A-02) - BELT DRIVE - FAN JACKSHAFT (13) - FEEDER
4
28
1
15
21
14
29
19
32
25
31
28
5
16
24
1
13
17
20
3
22
8
2
33
30
19
3
21
27
6
26
9
8
10

Артикул

Название

Примечание

Количество

1

191529C91

LEVER ASSY.

LEVER ASSEMBLY - fan jackshaft drive, Includes: Ref. 2

1шт.

2

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

- fan jackshaft drive

2шт.

3

495-11081

WASHER,3/4", SAE

9шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

5

174520C2

ROD

- jackshaft drive arm

1шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

7

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

3шт.

9

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 5/32 inch

1шт.

10

191777C1

SUPPORT

- fan jackshaft drive rod

1шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged hex lock. 3/8 inch NC

2шт.

14

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss, 3/8 NC x 1 inch

2шт.

15

194652C1

PIVOT

BAR - pivot arm

1шт.

16

155311C1

SPRING

- arm rod

1шт.

17

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

- fan jackshaft drive idler

1шт.

18

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8 inch NC

1шт.

19

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

20

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

22

191305C1

V-BELT,0.879" W x 112.19" L

Fan jackshaft drive, Over center 0.879" W x 112.19" L

1шт.

24

191603C2

PULLEY

- feeder drive, 12 inch OD

1шт.

25

183325C1

PULLEY

ASSEMBLY - fan jackshaft driven, 13 inch OD

1шт.

26

193948C1

PULLEY,39.61mm W x 254mm OD

- jackshaft drive, 9-3/4 inch OD

1шт.

27

188298C2

STUD

- jackshaft pivot arm

1шт.

28

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

29

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

30

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

31

192011C1

SUPPORT

- fan jackshaft idler drive

1шт.

32

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged hex lock, 3/8 inch NC

2шт.

33

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT- slotted truss, 3/8 NC x 1 inch

2шт.

Выбрано товаров: 30
