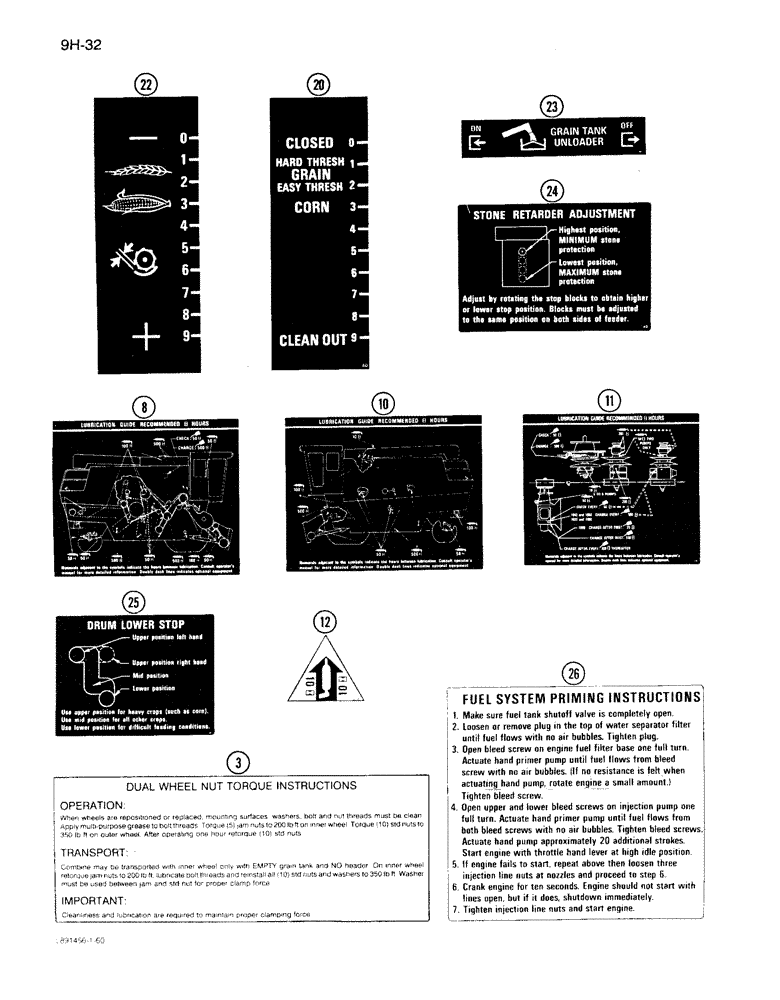

Запчасти Case IH 1640 (9H-32) - DECALS, GENERAL INSTRUCTIONS (12) - CHASSIS

3

184445C1

DECAL

- dual wheel torque

4шт.

8

186671C4

DECAL

- lubrication, right

1шт.

8

1300121C4

DECAL

- lubrication, right (French)

1шт.

8

1300483C2

DECAL

- lubrication, right (Spanish)

1шт.

10

186672C4

DECAL

- lubrication, left

1шт.

10

1300122C4

DECAL

- lubrication, left (French)

1шт.

10

1300561C4

DECAL

- lubrication, left, (Spanish)

1шт.

11

1327687C2

DECAL

- lubrication, top

1шт.

11

1327688C2

DECAL

- lubrication, top (French)

1шт.

11

1327689C2

DECAL

- lurication, top (Spanish)

1шт.

12

179245C1

DECAL

- lubrication 10 hour

1шт.

20

188217C1

PRODUCT GRAPHIC

DECAL - concave indicator

1шт.

22

1312068C1

DECAL

- concave indicator (If equipped, export only)

1шт.

23

185036C1

PRODUCT GRAPHIC

DECAL - unloader

1шт.

23

1300059C1

DECAL

- unloader (French)

1шт.

23

1300343C1

DECAL

- unloader (Spanish)

1шт.

24

184649C1

PRODUCT GRAPHIC

DECAL - stone drum adjusting

2шт.

24

1300110C1

DECAL

- stone drum adjustment (French)

2шт.

24

1300365C1

DECAL

- stone drum adjustment (Spanish)

2шт.

25

184863C2

PRODUCT GRAPHIC

DECAL - drum adjusting

2шт.

25

1300111C2

DECAL

- drum adjusting (French)

2шт.

25

1300389C1

DECAL

- drum adjusting (Spanish)

2шт.

26

1979263C1

DECAL

- fuel system priming

1шт.
