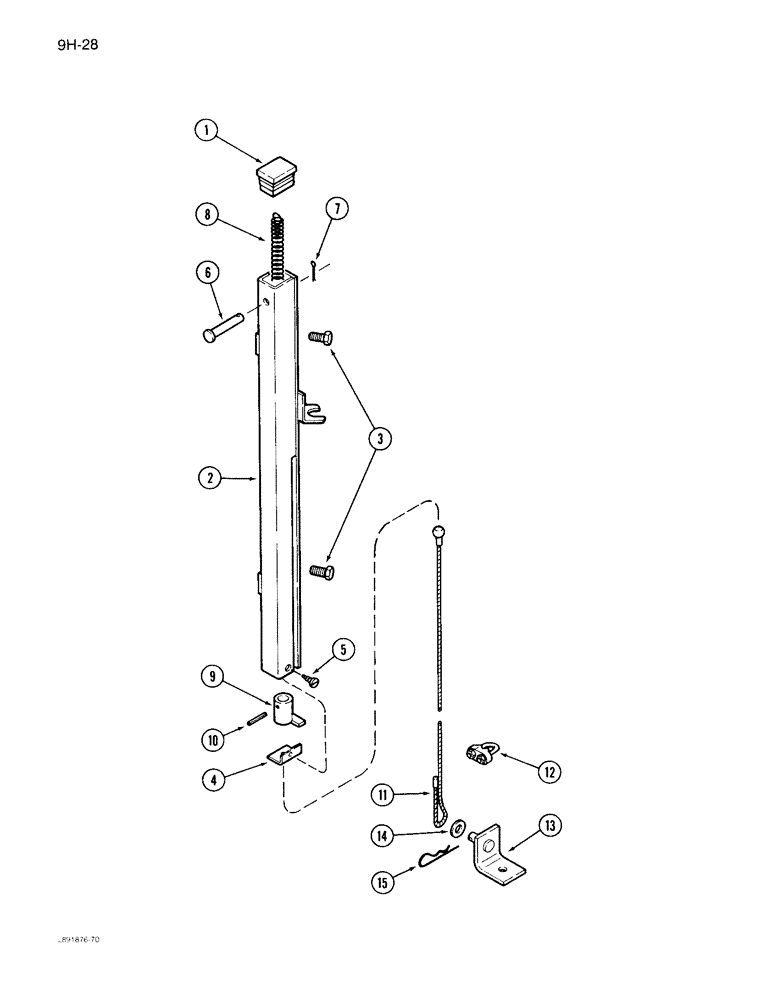

Запчасти Case IH 1640 (9H-28) - CUTTING HEIGHT INDICATOR (12) - CHASSIS

1

1312488C1

CAP

- height indicator

1шт.

2

1312482C2

SUPPORT

- height indicator

1шт.

3

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

2шт.

4

1312483C1

ANGLE

BRACKET - height indicator

1шт.

5

934666R1

SELF-TAP SCREW,Pan, M4.8 x 1.6 x 9.5mm

BOLT - pan head tapping, 10 x 10 mm

4шт.

6

1312484C1

PIN

- drilled head, 6 x 44 mm

1шт.

7

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

7

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

8

1312489C1

SPRING

- height indicator

1шт.

9

1312492C1

HOOK

- indicator

1шт.

10

30835R1

PIN,M3 x 24, Coiled

- roll, 3 x 25 mm

1шт.

11

3168318R2

CABLE

- height indicator

1шт.

12

715945R91

CLAMP

- height cable

1шт.

13

1312485C2

SUPPORT ASSY.

SUPPORT - indicator

1шт.

14

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 3/64 inch

1шт.

15

3014430R1

SPLIT PIN/SAFETY PIN

PIN - quick attach

1шт.
