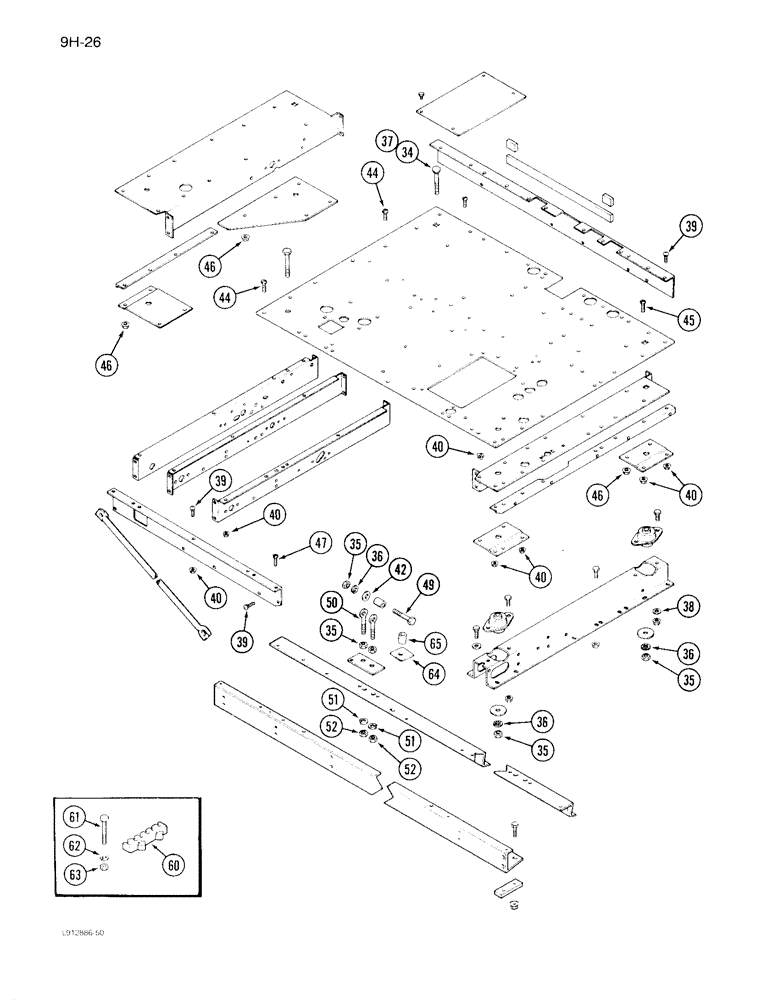

Запчасти Case IH 1640 (9H-26) - OPERATORS PLATFORM (CONTD) (12) - CHASSIS

34

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- hex, 3/4 NC x 4-3/4 inch

2шт.

34

113-714

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

35

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

36

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

37

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- hex, 3/4 NC x 4-3/4 inch

2шт.

37

1317014C1

CARRIAGE BOLT,Short Sq Nk, 3/4" - 10 x 5", Type 5

BOLT - round head, square neck, 3/4 NC x 5 inch

2шт.

38

22184R1

WASHER

- flat, 1-5/32 x 1-5/8 x 3/64 inch

4шт.

39

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

20шт.

40

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

31шт.

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

4шт.

42

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

4шт.

44

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

2шт.

45

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch

5шт.

46

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

7шт.

47

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 NC x 1 inch

1шт.

49

413-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex, 3/4 NC x 4-1/4 inch

2шт.

50

165648C2

BOLT,3/4" - 10 x 4 1/2"

EYEBOLT - leveling

4шт.

51

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

52

129-148

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC

4шт.

60

3102155R1

HOLDER

- shear bolt

1шт.

61

424-432

BOLT,Hex, 1/4" - 20 x 2", Gr 2

- hex, 1/4 NC x 2 inch Grade 2

3шт.

62

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

63

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

64

1994748C1

SHIM

- deck mount

6шт.

65

1994749C1

SPACER

- 3/4 pipe x 2-23/64 inch

2шт.
