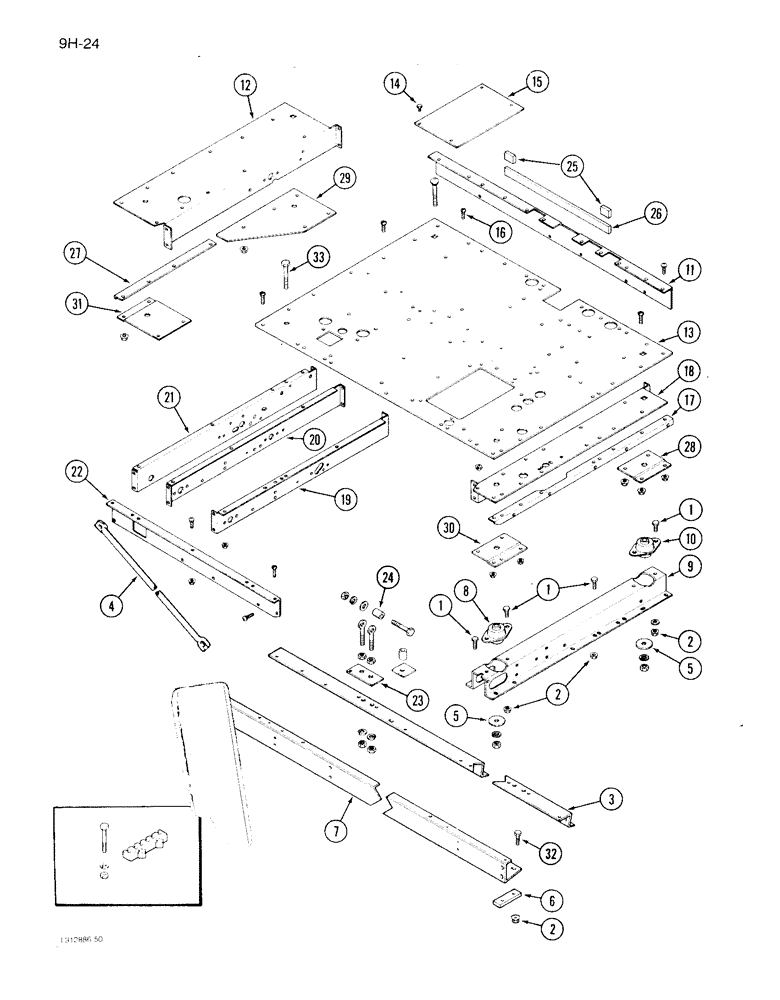

Запчасти Case IH 1640 (9H-24) - OPERATORS PLATFORM (12) - CHASSIS

1

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

18шт.

2

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch

1шт.

3

193021C7

ANGLE

SUPPORT - operators platform, front

1шт.

4

187645C2

ROD

- operators platform extension

1шт.

5

196591C1

WASHER

- isolation mount

4шт.

6

195715C1

BAR

- rear mounting channel, 1/2 inch

2шт.

6

193428C1

BAR

- rear mounting channel, 5/8 inch

2шт.

7

193022C3

SUPPORT

- operators platform, rear

1шт.

8

196950C2

MOUNTING PARTS

INSULATOR - rear vibration

2шт.

9

195507C6

SUPPORT

- operators platform, side

2шт.

10

117722C4

INSULATOR

- front vibration

2шт.

10

117722C4GV

INSULATOR

- front vibration

2шт.

11

1327564C2

SUPPORT

- operators platform, front

1шт.

12

195520C3

SUPPORT

- operators platform, left

1шт.

13

1321937C4

PLATFORM

- plate, operator

1шт.

14

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

BOLT - hex head tapping, 1/4 x 1/2 inch

4шт.

15

193029C2

PLATE

- brake access rear

1шт.

16

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 x 3/4 inch

11шт.

17

196969C4

SUPPORT

- platform stiffener, right side

1шт.

18

195518C8

SUPPORT

- operators platform, right

1шт.

19

195519C6

SUPPORT

- operators platform, right center

1шт.

20

195521C4

SUPPORT

- operators platform, center

1шт.

21

195557C7

SUPPORT

- operators platform, left center

1шт.

22

195516C4

SUPPORT

- operators platform, rear

1шт.

23

196592C3

BAR

- platform spacer

2шт.

24

591070R1

SPACER,3/4" Pipe x 1 7/16"

- operators platform, front

2шт.

25

NSS

NOT SOLD SEPARAT

STRIP - support, 2 inch (Order 187885C1, Serial Range: cut-length)

2шт.

26

187885C1

SEALING STRIP

STRIP - support, 26 inch (Order 187885C1, Serial Range: cut-length)

1шт.

27

183680C1

ANGLE

- platform stiffener, left

1шт.

28

183668C2

PLATE

- platform, right front

1шт.

29

183669C2

PLATE

- platform, left front

1шт.

30

183678C1

PLATE

- platform, right rear

1шт.

31

183679C1

PLATE

- platform, left rear

1шт.

32

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

33

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

4шт.

1345349C1

PLUG,Cap, .240" OD

- 7/32 inch hole

1шт.

1345351C1

PLUG,Cap, .428" OD

- 11/32 inch hole

1шт.
