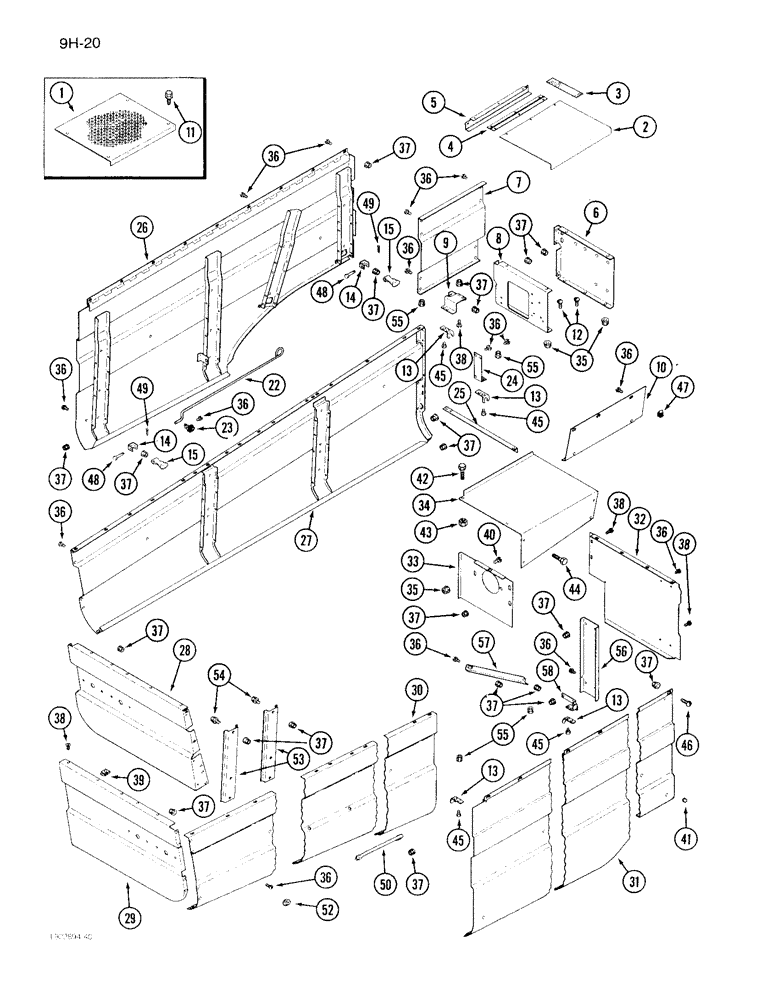

Запчасти Case IH 1640 (9H-20) - SHIELDS, SUPPORTS AND TRIM (12) - CHASSIS

1

1338308C1

COVER ASSY

SUPPORT - valve box cover (Prior to P.I.N. JJC0097190)

1шт.

2

1989344C2

COVER ASSY

SUPPORT - valve box, top (P.I.N. JJC0097190 and After), Includes: Ref. 3

1шт.

3

D55216

PAD,2" x 9"

STRIP - anti-skid pad

5шт.

4

1989347C1

HINGE

- valve box support (P.I.N. JJC0097190 and after)

1шт.

5

1989346C1

CHANNEL

- valve box, top (P.I.N. JJC0097190 and after)

1шт.

6

1338305C3

SUPPORT

- valve box, front

1шт.

7

1338304C2

SHEET ASSY.

SUPPORT - valve box left side

1шт.

8

1338306C3

SHEET

SUPPORT - valve box, rear

1шт.

9

182834C2

SUPPORT

- left front latch (Replaces 1338354C1)

1шт.

10

188160C2

SUPPORT ASSY.

SUPPORT - cab bottom, right front

1шт.

11

28015R1

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

BOLT - tapping, 3/8 x 3/4 inch

4шт.

12

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 x 3/4 inch

6шт.

13

764071C1

BRACKET

- trim hook

2шт.

14

188103C1

BRACKET

YOKE - hood anchor

2шт.

15

494307C1

LATCH

HOOK - trim hold down

2шт.

22

183444C1

ROD

- tank lower door, left (Shown)

1шт.

22

183242C1

ROD

- tank lower door, right

1шт.

23

362123R1

CLIP

- trim sheet brace

1шт.

24

188156C2

SUPPORT

- trim rear catch

1шт.

25

194604C3

ANGLE BAR

ANGLE - shield support

2шт.

26

186789C1

SHIELD

SUPPORT - grain tank trim, left front

1шт.

27

193733C2

PANEL

SHIELD - rear trim, left

1шт.

28

193811C4

SUPPORT

- tail lamp, left

1шт.

29

193812C4

SUPPORT

- tail lamp, right

1шт.

30

193734C5

PANEL

SHIELD - rear trim, right

1шт.

31

186790C1

SUPPORT

- grain tank trim, right front (Replaces 188152C2)

1шт.

32

193151C1

SUPPORT

- lower, left front

1шт.

32

1346947C2

SHEET ASSY.

SUPPORT - lower, right front

1шт.

33

194452C2

SUPPORT

- gear case, front

1шт.

34

193443C2

SUPPORT

- feeder drive, upper

1шт.

35

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

8шт.

36

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 x 1/2 inch

62шт.

37

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

89шт.

38

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 x 3/4 inch

22шт.

39

488837C1

SPRING NUT

- speed, 5/16 inch

6шт.

40

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 x 1 inch

2шт.

41

147483C1

PLUG

- hole

8шт.

42

937875R1

SCREW,Serr, 1/4" - 20

BOLT - slotted truss head, 1/4 x 3/4 inch

2шт.

43

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch

2шт.

44

276-14812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch

2шт.

45

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10-24 x 3/4 inch

4шт.

46

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 x 1 inch

9шт.

47

403276R1

NUT

- speed

2шт.

48

22910R1

HEADED PIN

PIN - headed, 1/4 x 1-1/2 inch

2шт.

49

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

50

1251832C2

HANDLE

- assist

1шт.

51

25710R1

WASHER

- flat, 17/32 x 1 x 7/64 inch

2шт.

52

905263R1

NUT,M12 x 1.75, Cl 10

NUT - prevailing torque, 12 mm, grade 10

2шт.

53

1319563C1

SUPPORT

- handle

2шт.

54

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

55

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, No. 10-24

4шт.

56

194640C3

CONDUIT

SUPPORT - shield, right front

1шт.

57

194639C2

ANGLE

BRACKET - shield support, right front

1шт.

58

1345118C1

SUPPORT

- front right latch

1шт.
