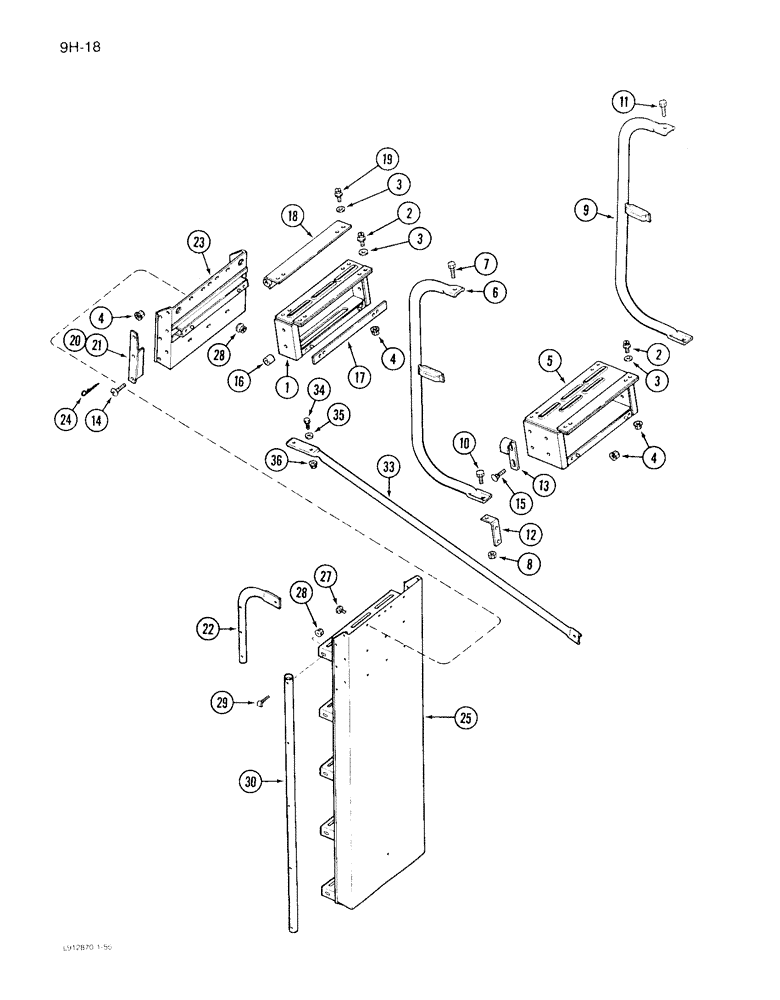

Запчасти Case IH 1640 (9H-18) - FIXED LADDER AND LADDER EXTENSION (12) - CHASSIS

1

198478C1

SUPPORT

- operators platform extension (For 3-1/2 inch extension)

1шт.

2

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

SCREW - hex washer head tapping, 3/8 NC x 3/4 inch

2шт.

3

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

4шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

20шт.

5

198482C2

SUPPORT ASSY.

SUPPORT - operators platform extension (For 7 inch extension)

1шт.

5

184398C1

SUPPORT ASSY.

SUPPORT - platform extension (For 7 inch extension and extra wide axle)

1шт.

6

196625C1

RAIL

- front short extension hand (For use with 17-1/2 inch and longer extension)(For use with axle extension)

1шт.

6

196626C1

RAIL

- front long extension hand (Dual wheel only)

2шт.

6

196625C1

RAIL

- front short extension hand (Extra wide axle)

2шт.

7

426-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

8

9413979

LOCK NUT,3/8"-16, GC

NUT - hex, 3/8 inch

1шт.

9

196633C1

RAIL

ASSEMBLY - rear short extension hand (For use with 14 inch and shorter extension)(For use with axle extension)

1шт.

9

184452C1

RAIL

- rear (For extra wide axle and dual wheel)

2шт.

9

196634C2

GRAB RAIL

RAIL - rear long extension

1шт.

10

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

11

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- hex, 3/8 NC x 2-1/4 inch, Grade 8

1шт.

12

196846C1

SUPPORT

- hand rail extension (For use with 10-1/2 and 14 inch extension)(For use with axle extension)

1шт.

13

196977C2

SUPPORT

- hand rail extension hook (For use with 10-1/2 and 14 inch extension)(For use with axle extension)

2шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - truss head, 3/8 NC x 3/4 inch

10шт.

15

411-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT - round head square neck, 3/8 NC x 2 inch

2шт.

16

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 5/8 x 1 inch

2шт.

17

187712C1

SHIM

- extension

1шт.

18

196832C1

SUPPORT

- ladder attaching

1шт.

19

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

2шт.

20

196836C1

SUPPORT

- ladder side, left

1шт.

21

196837C1

SUPPORT

- ladder side, right

1шт.

22

1317397C1

ROD

- ladder support

2шт.

23

1318804C2

SUPPORT

- ladder upper

1шт.

24

486830R1

COTTER PIN

PIN - quick attachable cotter

2шт.

25

1317520C91

LADDER

ASSEMBLY - lower frame, with decal

1шт.

27

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

3шт.

28

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

13шт.

29

196955C1

BOLT,Curved Hd, 5/16" - 18 x 1.50", Cl 5

- curved head, 5/16 x 1-1/2 inch

10шт.

30

1318785C1

TUBE,26.8 mm ID, 28.58 mm OD

- ladder handrail lower

2шт.

33

184395C1

STEM

SUPPORT - ladder platform extension

1шт.

34

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- hex flange, 1/2 NC x 1-1/4 inch

2шт.

35

22042R1

WASHER

- flat, 17/32 x 2 x 7/64 inch

2шт.

36

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.
