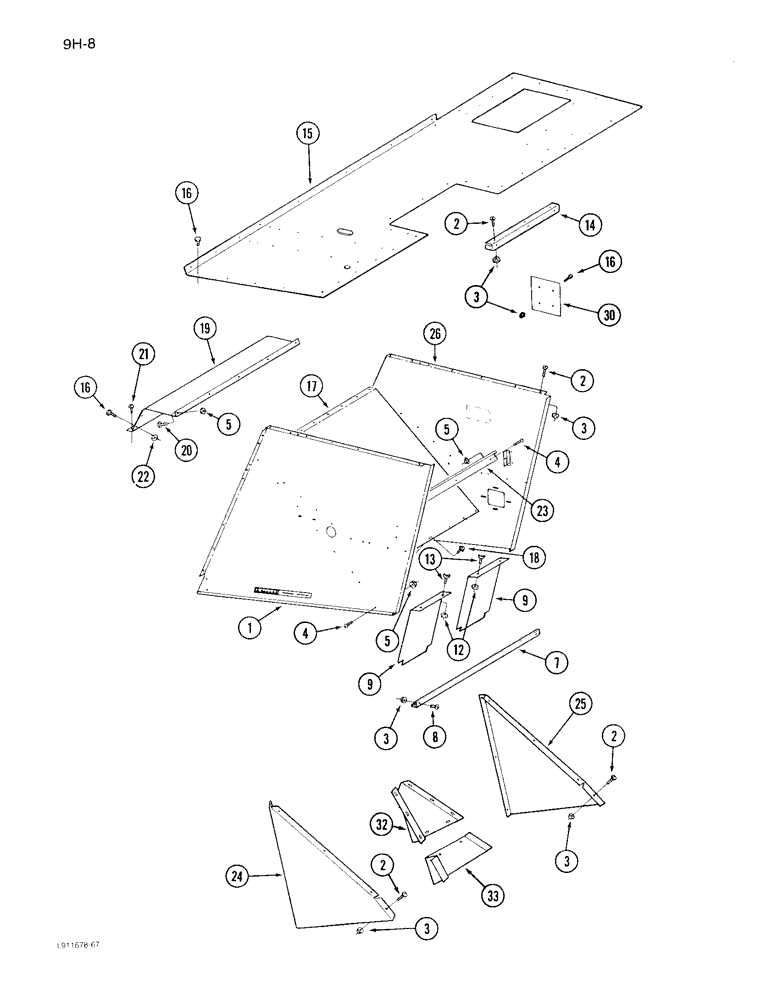

Запчасти Case IH 1640 (9H-08) - SEPARATOR SIDES (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
192378C7
SUPPORT ASSY.
SIDE - separator, Left
1шт.
2
135270
SERRATED SCREW,5/16" - 18 x 3/4"
BOLT - slotted truss head, 5/16 NC x 3/4 inch
23шт.
3
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
- hex flange lock, 5/16 inch NC
71шт.
4
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
BOLT - slotted truss head, 3/8 NC x 1 inch
6шт.
5
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
- hex flange lock, 3/8 inch NC
14шт.
7
192309C2
ANGLE
- rear support
1шт.
8
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
BOLT - slotted truss head, 5/16 NC x 1 inch
3шт.
9
1300294C91
SUPPORT
ASSEMBLY - hood rear access, with decals
2шт.
12
488837C1
SPRING NUT
- rear hood support
4шт.
13
176978C1
THUMB SCREW,5/16" - 18 x 0.75"
- thumb, rear hood support
4шт.
14
186971C1
ANGLE
SUPPORT - rear deck
1шт.
15
1317744C2
GUARD
SUPPORT - rear deck (397 x 358 mm rectangular hole) (Replaces 1337434C1)
1шт.
16
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
BOLT - slotted truss head, 5/16 NC x 1/2 inch
36шт.
17
1324988C2
PROTECTION PLATE
DEFLECTOR - straw discharge
1шт.
18
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
- hex flange lock, 5/16 NC x 3/4 inch
8шт.
19
1324966C2
SHEET
SUPPORT - engine deck
1шт.
20
SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"
BOLT - slotted truss head, 3/8 NC x 3/4 inch
8шт.
21
199953C1
SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"
BOLT - self tapping, 5/16 x 3/4 inch
5шт.
22
541310R1
SPRING NUT
- speed, 5/16 inch
5шт.
23
194305C1
ANGLE
- deflector stiffener
1шт.
24
1302105C1
DEFLECTOR
SUPPORT - corner, left
1шт.
25
1302106C1
DEFLECTOR
SUPPORT - corner, right
1шт.
26
1302698C93
SUPPORT
SIDE ASSEMBLY - separator, right, Includes: Ref. 27
1шт.
27
185442C1
DECAL
- danger
1шт.
30
1312291C1
SHEET
SUPPORT - straw spreader (If equipped)
1шт.
32
1319485C1
DEFLECTOR
- rear hood (Corn and grain)
1шт.
33
1321019C1
DEFLECTOR
- guard (Corn and grain)
1шт.
Выбрано товаров: 27
