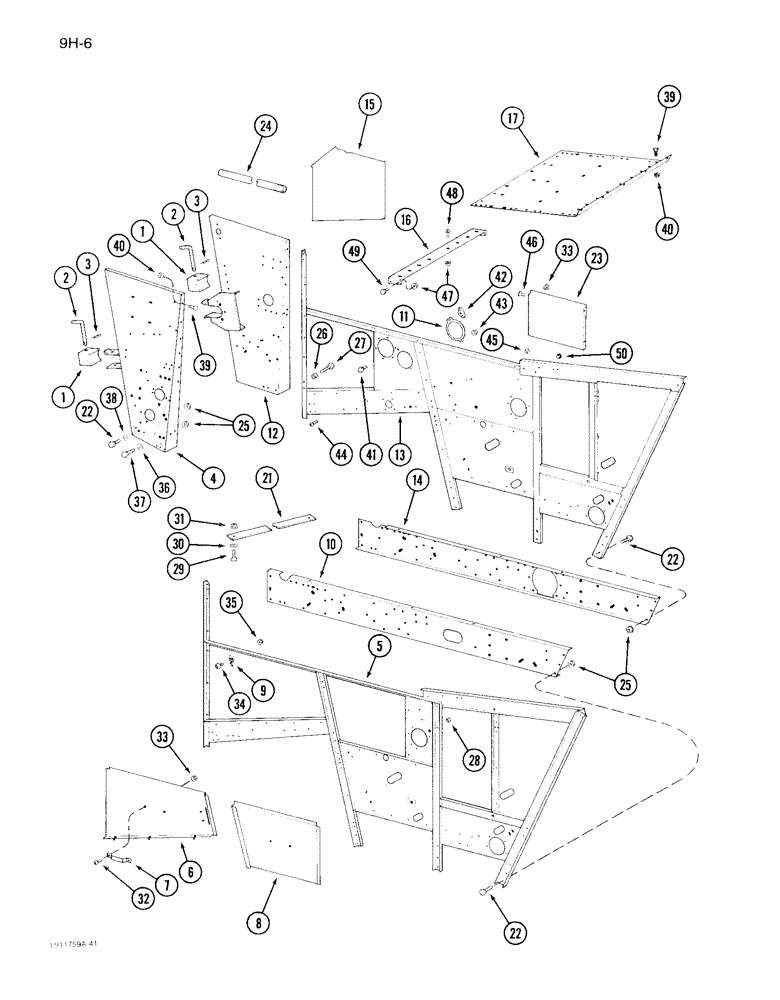

Запчасти Case IH 1640 (9H-06) - SEPARATOR DOORS, SIDES AND SUPPORTS, WITH ROCK TRAP (12) - CHASSIS

1

1989327C1

RETAINER

BLOCK - feeder pivot (Replaces 193834C1)

2шт.

2

192533C2

ROD

- feeder pivot block

2шт.

3

520175R1

CLIP

PIN - quick attachable cotter

2шт.

4

185124C8

SUPPORT ASSY.

POST ASSEMBLY - side, left front

1шт.

5

1970184C2

STIFFENER

SIDE ASSEMBLY - separator, left

1шт.

6

186178C91

DOOR

ASSEMBLY - separator, front left

1шт.

7

160638C1

HANDLE

- separator door

3шт.

8

186188C91

DOOR

ASSEMBLY - separator side, left

1шт.

9

167800C1

CLIP

- door retainer

14шт.

10

1327695C4

SILL

SUPPORT - separator, left main

1шт.

11

188315C1

DOOR

- separator, right

1шт.

12

185125C2

PANEL

POST ASSEMBLY - separator, right

1шт.

13

1970464C2

SIDE ASSY.

SIDE ASSEMBLY - separator, right (Replaces 1300267C92)

1шт.

14

1317554C3

SILL

SUPPORT - separator, right side main

1шт.

15

186199C91

DOOR

ASSEMBLY - separator, front right

1шт.

16

195316C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - engine deck

1шт.

17

1324970C2

PLATE

- engine deck

1шт.

21

196315C2

BAR

- separator frame diagonal support

2шт.

22

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, Grade 8

26шт.

23

181085C2

DOOR

- separator side

2шт.

24

1319395C1

CONDUIT

- convoluted, 12-1/8 inch

1шт.

25

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC, Grade 8

34шт.

26

272897R1

SPACER

- 1/2 x 1 inch pipe (Order 495-11041 washer)

1шт.

27

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

- hex head flange, 3/8 NC x 1-1/2 inch

1шт.

28

406391C1

PLUG,1"

- button

1шт.

29

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, Grade 8

5шт.

30

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

5шт.

31

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- flange lock, 1/2 inch NC, Grade 8

5шт.

32

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

6шт.

33

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

16шт.

34

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan head Phillips, No. 10-24 x 1/2 inch

14шт.

35

174097C1

FLANGE NUT,Flg, USR, #10-24

- flange lock, No. 10-24

14шт.

36

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch

4шт.

37

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

8шт.

38

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, 41/64 x 1-1/4 x 1/8 inch

12шт.

39

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

13шт.

40

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

- flange lock, 1/2 inch NC, Grade 8

13шт.

41

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

42

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

1шт.

43

26110R1

LOCK NUT,1/4"-20, GC

NUT - prevailing torque, 1/4 inch NC

1шт.

44

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT - slotted truss head, 1/4 NC x 1/2 inch

1шт.

45

432366

HOLE PLUG BUTTON,1 3/8"

PLUG - button, 3/8 inch

1шт.

46

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

10шт.

47

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

16шт.

48

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch

12шт.

49

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

4шт.

50

353-411

PLUG,Dome, 1.000" hole, Nylon

(25.4 mm) Dome, 1.000" hole, Nylon

1шт.
