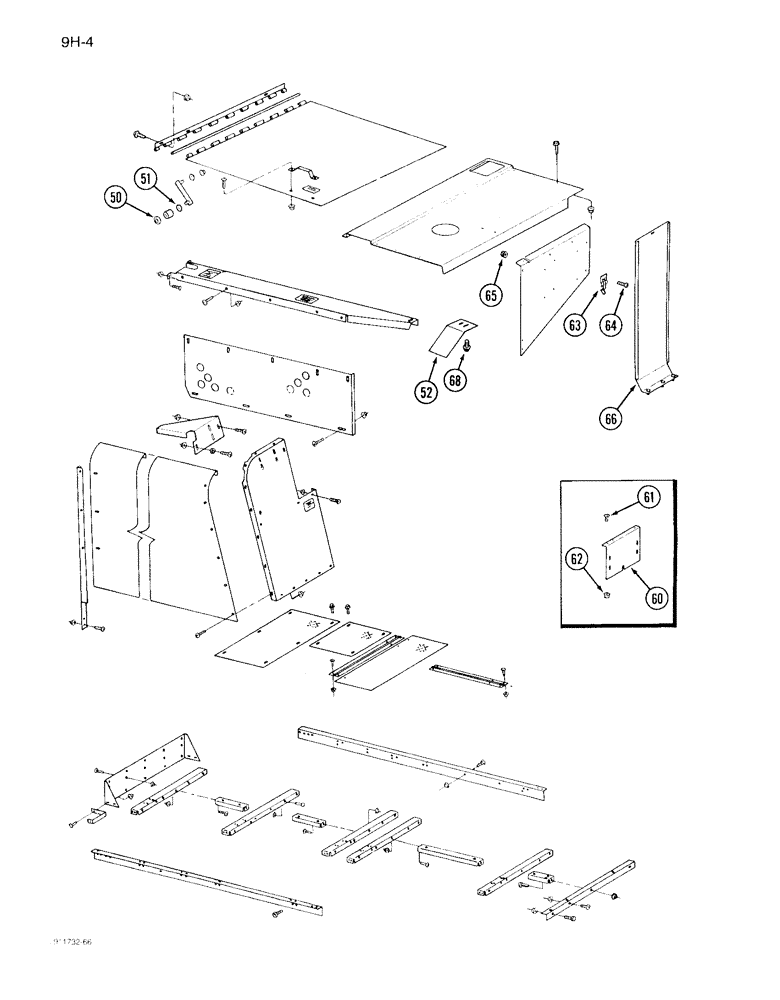

Запчасти Case IH 1640 (9H-04) - ENGINE SHIELD AND SERVICE DECK (CONTD) (12) - CHASSIS

50

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 3/64 inch

1шт.

51

567532R1

WASHER

- flat, 21/64 x 1/2 x 5/32 inch

1шт.

52

1979353C1

DEFLECTOR

- air

1шт.

D55216

PAD,2" x 9"

STRIP - anti-skid

10шт.

1979316C2

SUPPORT

- engine compartment door

1шт.

60

1970187C3

ANGLE

SUPPORT - air shield

1шт.

61

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

2шт.

62

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

63

167800C1

CLIP

LATCH - door

2шт.

64

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan head Phillips, No. 10 NC x 1/2 inch

2шт.

65

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, No. 10-24

2шт.

66

1977285C1

SUPPORT

- air shield

1шт.

1338071C2

SUPPORT

- door and hood

1шт.

68

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.
