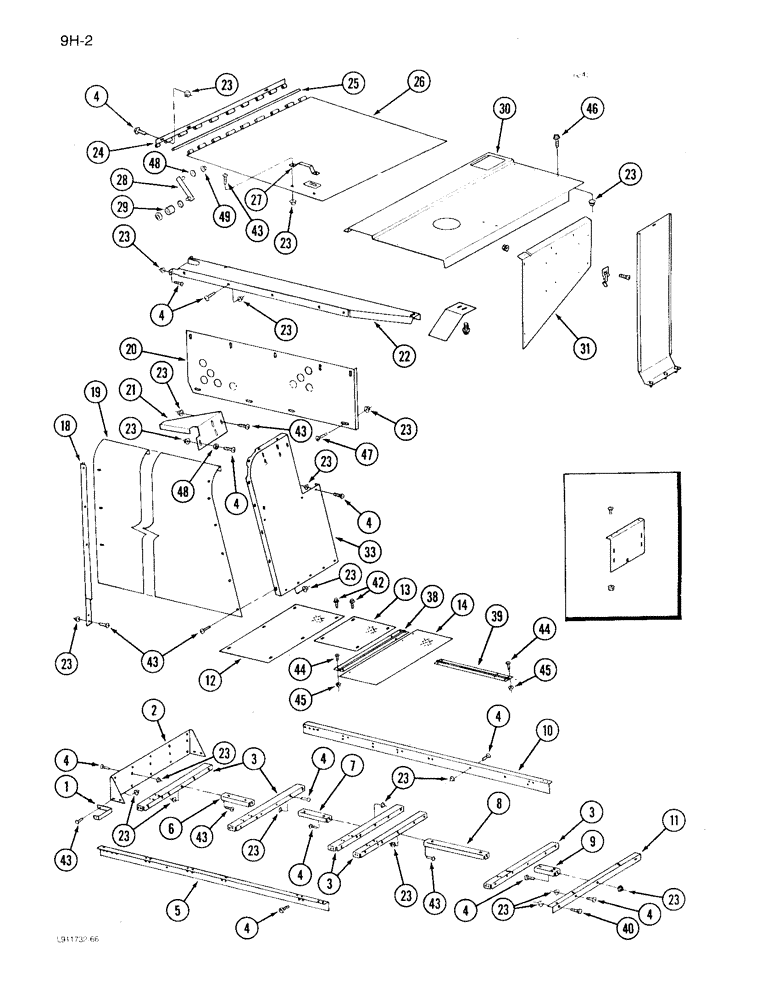

Запчасти Case IH 1640 (9H-02) - ENGINE SHIELD AND SERVICE DECK (12) - CHASSIS

1

188419C1

CHANNEL

- grain tank rear upper left

1шт.

2

193435C2

SUPPORT

- engine service deck

1шт.

3

192959C6

SUPPORT

- deck

5шт.

4

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

69шт.

4

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

4

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

5шт.

5

188368C4

ANGLE

BRACKET - left deck support

1шт.

6

188081C1

SUPPORT

- deck

1шт.

7

1979830C1

SUPPORT

- deck (Replaces 194461C1)

1шт.

8

194460C1

SUPPORT

- deck

1шт.

9

194459C1

SUPPORT

- deck

1шт.

10

192960C6

ANGLE BAR

SUPPORT - deck, right

1шт.

11

193146C3

ANGLE

- engine deck rear support

1шт.

12

1979874C1

PLATE

- engine comparatment front (Replaces 194456C2)

1шт.

13

1979827C1

PLATE

- engine compartment (Replaces 194455C2)

1шт.

14

1977155C1

DOOR

- service deck

1шт.

18

188377C1

ANGLE

- shield stiffener, left upper

1шт.

19

1347060C2

SUPPORT

- rear upper left trim

1шт.

20

1302703C2

SHEET ASSY.

PLATE - rotor cover to service deck

1шт.

21

1330481C2

SUPPORT

- LH Rear, Upper shield (Replaces 195356C1)

1шт.

22

1319647C91

SUPPORT

ASSEMBLY - door and hood

1шт.

23

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

115шт.

24

194477C2

HINGE

- rotor cover door

1шт.

25

194478C1

ROD

- rotor door hinge

1шт.

26

186197C93

TRAP DOOR

DOOR - engine and rotor drive cover

1шт.

27

160638C1

HANDLE

- rotor door

1шт.

28

1302413C1

PROP

LINK ASSEMBLY - door hold up

1шт.

29

568257R1

SPACER,1/2" Tube x 3/8"

- 1/2 x 3/8 inch tube

1шт.

30

1329834C4

SUPPORT ASSY.

SUPPORT - top cover, rear

1шт.

31

1319792C1

SUPPORT

- air cleaner

1шт.

33

1347130C1

PROTECTION PLATE

SUPPORT - engine, left rear (Replaces 186194C93)

1шт.

38

186695C1

HINGE

- separator door

1шт.

39

186693C1

HINGE

- door

1шт.

40

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

42

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

10шт.

42

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch

10шт.

43

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 x 1/2 inch

29шт.

44

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT - slotted truss head, 1/4 x 1/2 inch

18шт.

45

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch

18шт.

46

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

19шт.

47

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head 5/16 x 1 inch

3шт.

48

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

2шт.

49

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - prevailing torque lock, 5/16 NC inch

2шт.
