Запчасти Case IH 1640 (9G-72) - SUNVISOR (10) - CAB & AIR CONDITIONING

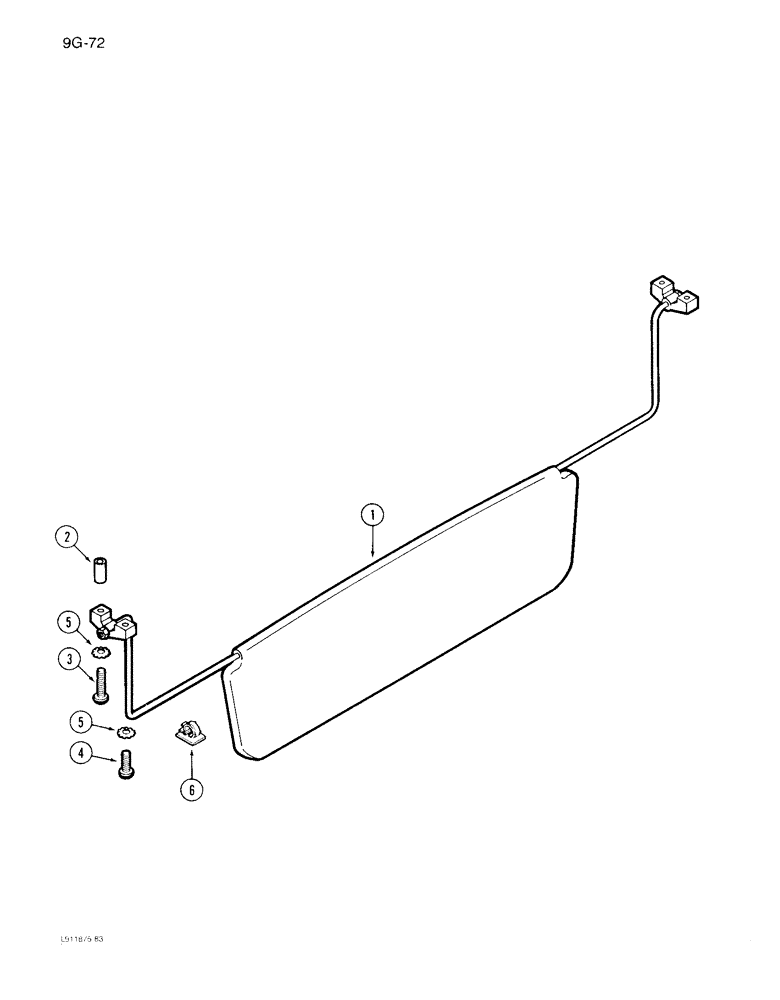

Схема запчастей Case IH 1640 - (9G-72) - SUNVISOR (10) - CAB & AIR CONDITIONING
2
6
5
5
1
3
4

Артикул

Название

Примечание

Количество

1

1970227C2

VISOR, SUN

VISOR - sun

1шт.

2

1329974C1

SPACER

- sunvisor, 1/4 x 1 inch

2шт.

3

1979389C1

SELF-TAP SCREW

- oval head cross recess tapping, No. 10-16 x 1-3/4 inch

2шт.

4

1971367C2

SELF-TAP SCREW,Cross Oval Hd, #10-16 x 3/4"

SCREW - oval head cross recess tapping, No. 10-16 x 3/4 inch

2шт.

5

1329968C1

WASHER

- No. 10 oval head finishing

4шт.

6

169850C2

CABLE CLIP

CLIP, CABLE - harness (Plastic)

6шт.

Выбрано товаров: 6
